HANDHELD METAL DETECTOR MH6

HANDHELD METAL DETECTOR MH6

SKU: 2000340300

Compact Handheld Metal Detector for Security Checks

High level of detection sensitivity

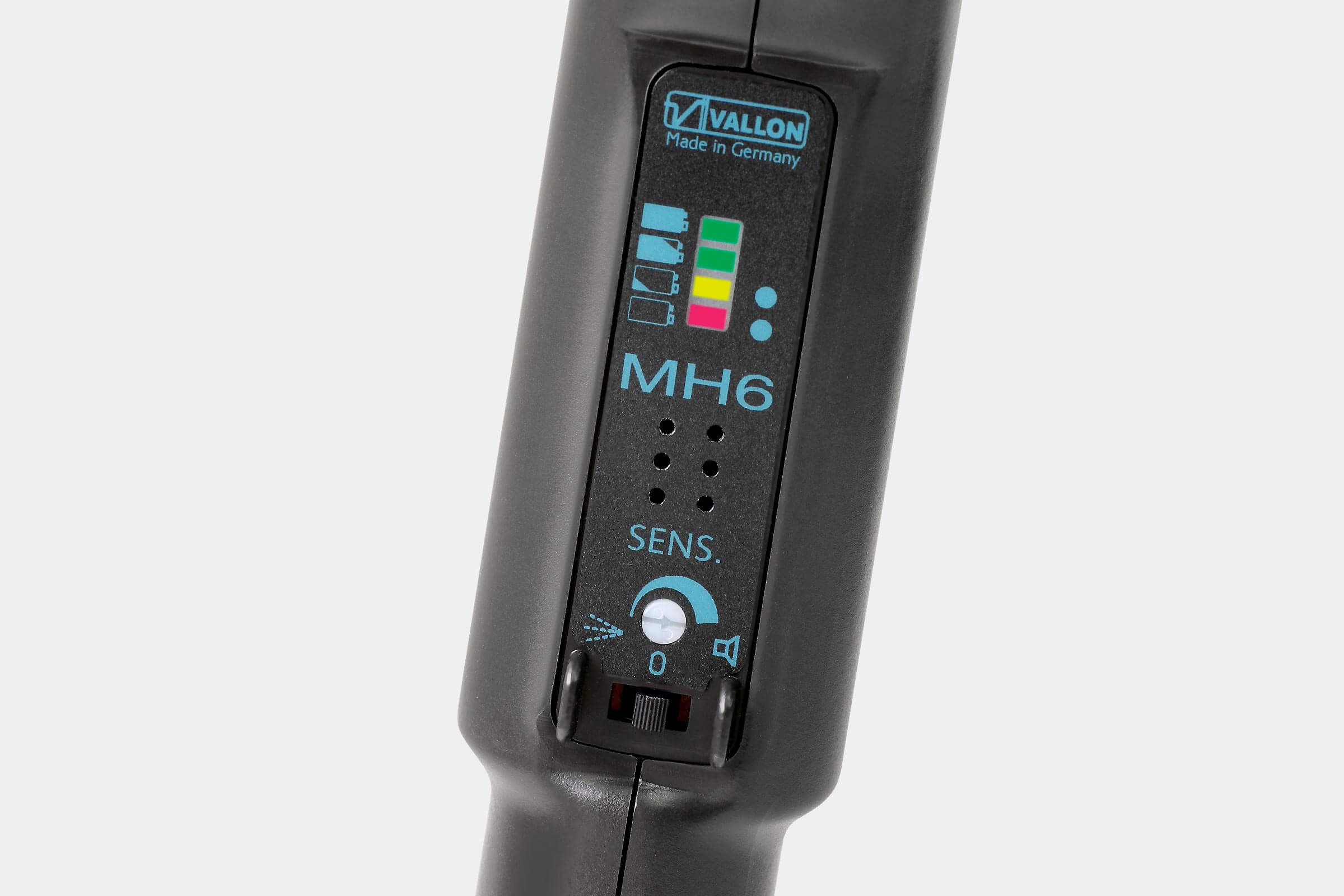

Visual alarm indication using LEDs and audible alarm indication
Adjustable detection sensitivity
Audio and vibration alarm
Ergonomic design and low weight

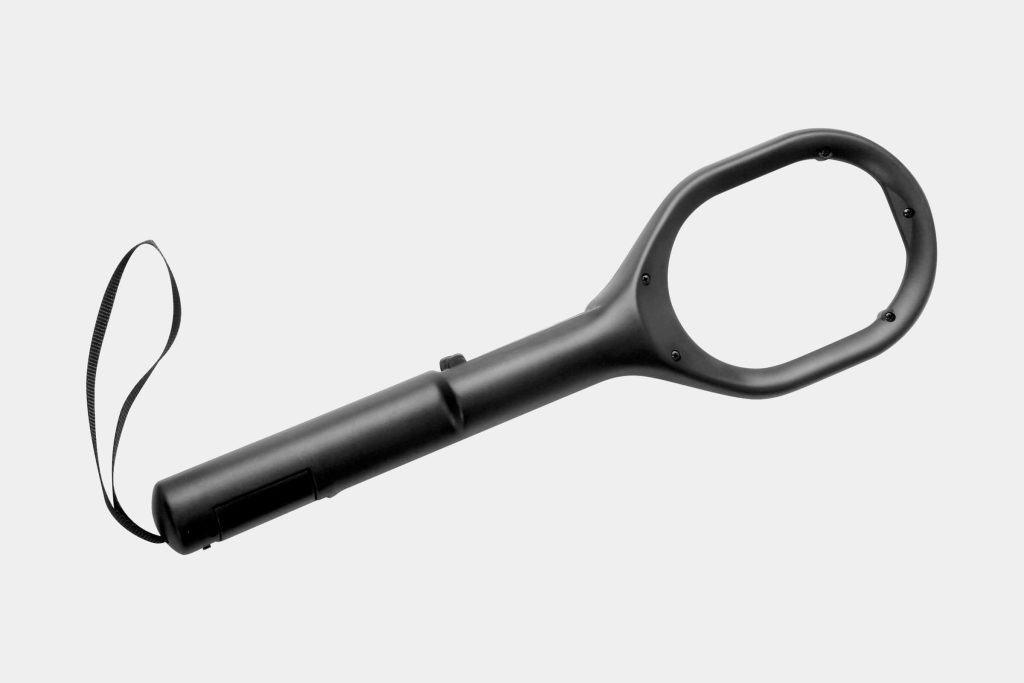

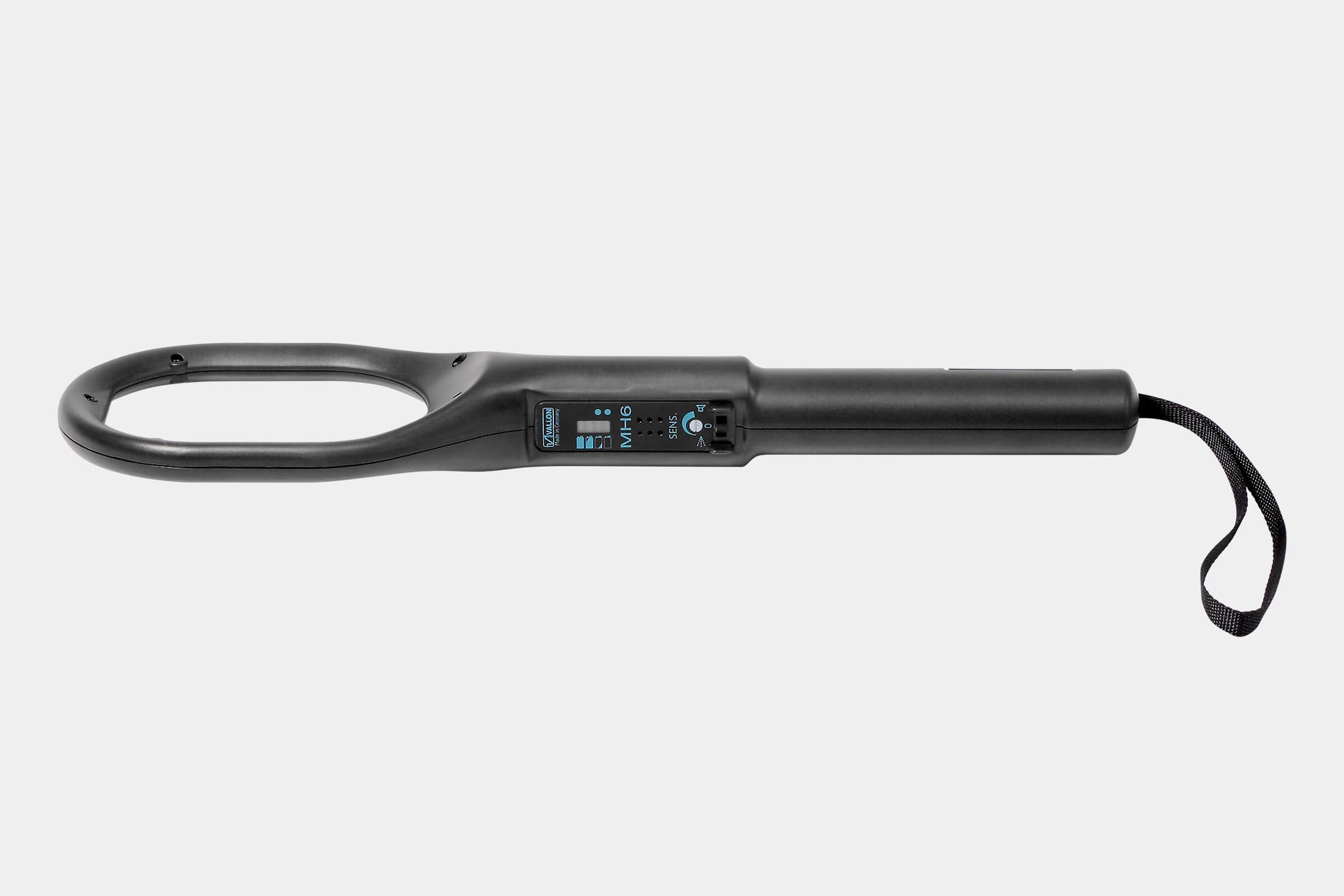

The MH6 handheld metal detector has been developed for checking persons for weapons and other metal objects. It also enables the screening of letters and small packages. This makes it a reliable, essential work tool for security personnel in airports, embassies, correctional facilities, nuclear power plants and other high-security facilities.

The MH6 is also easy to operate and features a high level of detection sensitivity and very convenient handling.

Suitable for following searches…

Person and postal inspection: Screening of persons and postal items within the framework of security checks at airports, embassies, correctional facilities, nuclear power plants and other high-security facilities

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
Active search coils
12 x 15 cm (4,72 x 5,90 in)

ALARM SIGNAL
Visual (LED)/audio/vibration

WATERTIGHT
No

DIMENSIONS*
Detector
42 cm (15.53 in)

Handle diameter
Ø 3.8 cm (Ø 1.50 in)

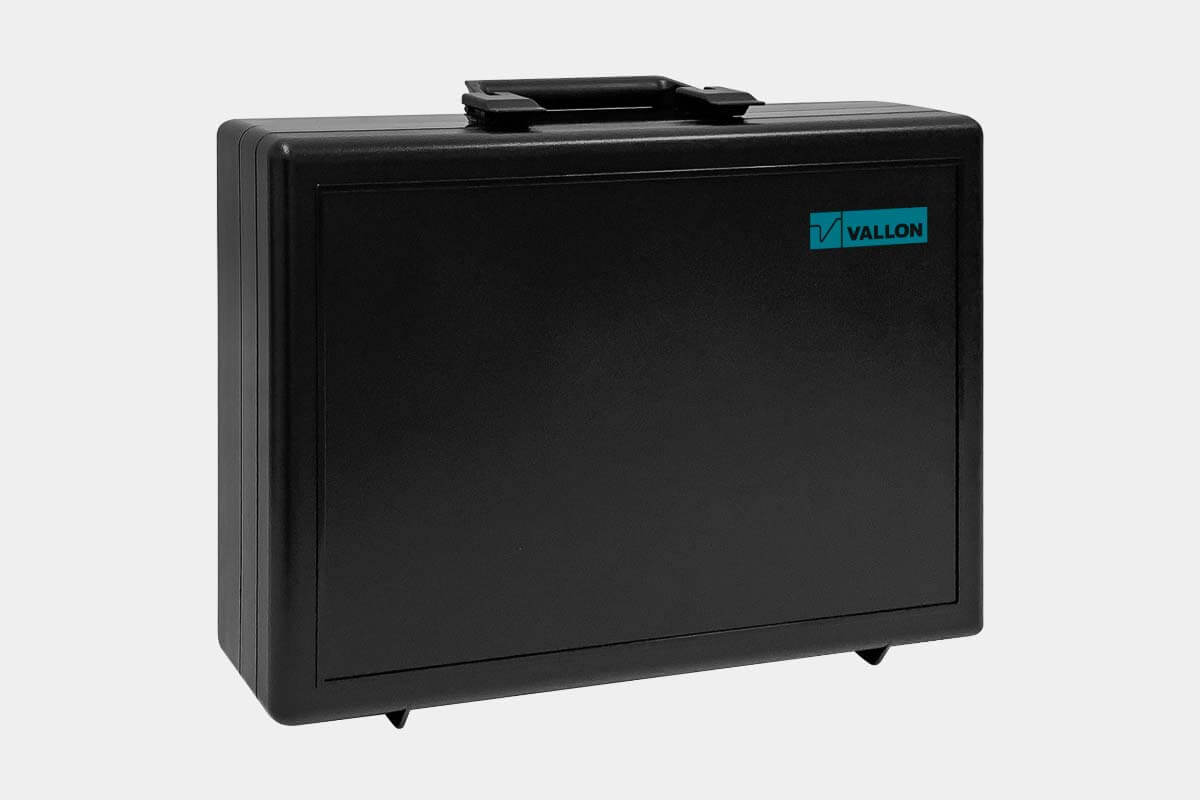

Case
43 x 31 x 9 cm (16.92 x 12.20 x 3.54 in)

*Dimension specifications ± 3%.

AMBIENT CONDITIONS
Quality standard
DIN EN ISO

Security standard
In accordance with VDE 0848 Part 4, A3

Field strength
In accordance with VDE 0848 Part 4, A2

EMC
In accordance with EN 61000-6-1:2001 and EN 61000-6-3:2001

AMBIENT TEMPERATURE
-10°C – +55°C (+14°F – +131°F)

STORAGE TEMPERATURE
-30°C – +70°C (-22°F – +158°F)

WEIGHT*
Detector with standard battery
0.3 kg (0.66 lbs)

Detector in case – Including standard scope of delivery
1.6 kg (3.53 lbs)

*Weight specifications ± 10%.

DISPOSABLE/ RECHARGEABLE BATTERY
1 x 6F22 9 V alkaline battery pack

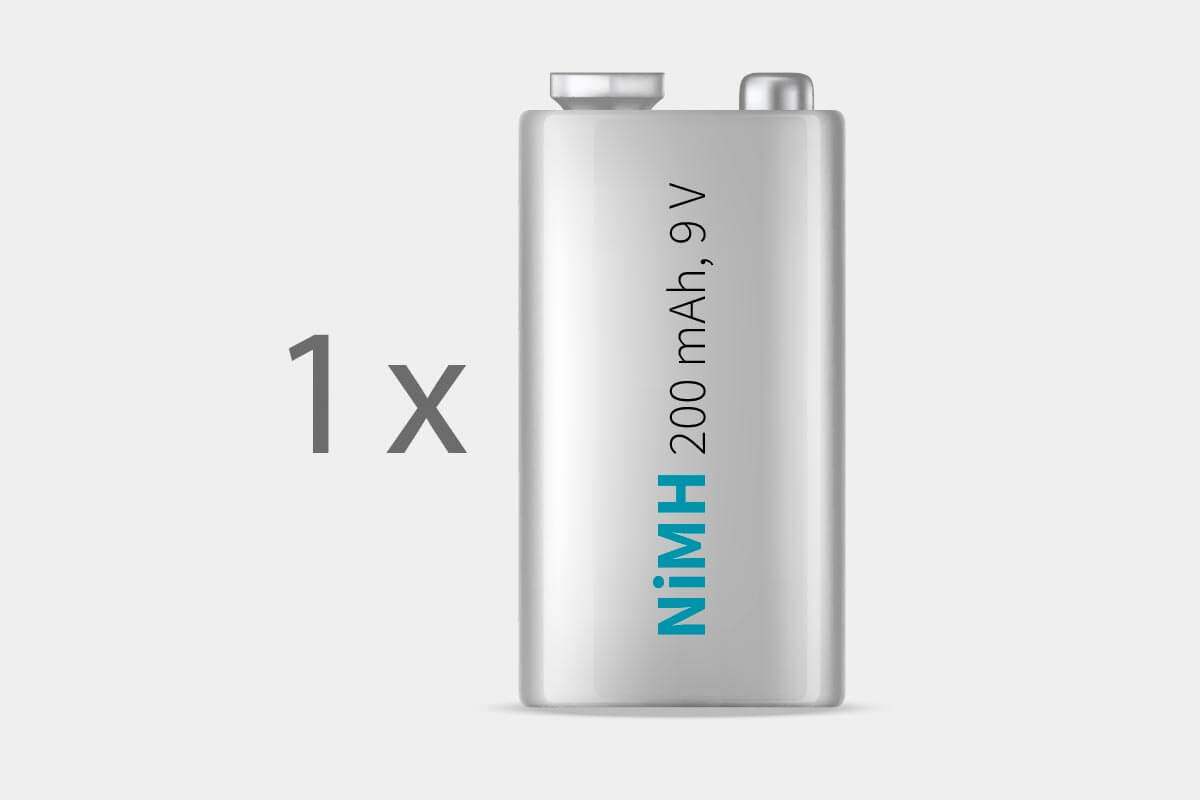

1 x 6F22 9 V NiMH rechargeable battery pack, 200 mAh

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
Service life with alkaline battery:
At 10% alarm sound/visual indication: max. 80 h
At 10% vibration alarm/visual indication: max. 20 h

*Ambient temperature of about 20 °C, 6F22: Varta Industrial.

Subject to changes that serve technical progress.
