UNDERWATER METAL DETECTOR MW1630B

UNDERWATER METAL DETECTOR MW1630B

SKU: 2000530010

Metal Detector for Underwater Use down to 60 m

Detection in water and on land
Depth down to 60 m
Resistant to saltwater
High sensitivity
Easily noticeable alarm indication (audio)

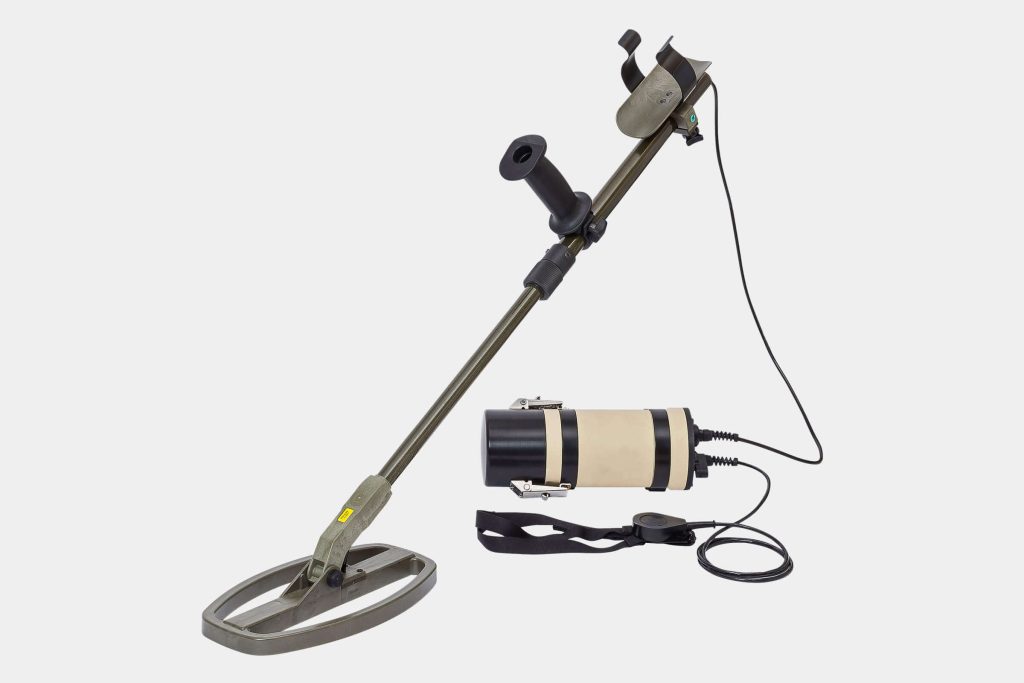

The metal detector MW1630B is extremely reliable when it comes to detection of metal objects. It proves itself not only for the detection under water but also on land.
Its water pressure-tight design as well as the alignment of all components for the targeted application in fresh water and sea water ensures a high detection reliability with a maximum diving depth of 60 m.

Suitable for following searches…

Mines: Suited for mine detection. Thanks to maximum sensitivity, also responds to mines with low metal content.
Underwater: Optimally suited for diving operations in water down to 60 m of depth. Also for salt water.

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
Oval 30.5 x 17 cm (12 x 6.69 in)

ALARM SIGNAL
Audio

WATERTIGHT
IP68, 60 m

DIMENSIONS*
Case
78.2 x 30 x 14.2 cm (30.78 x 11.81 x 5.59 in)

*Tolerance ± 3 %

AMBIENT TEMPERATURE
-31°C – + 63°C (-24°F – +145°F)

STORAGE TEMPERATURE
-51°C – +71°C (-60°F – +160°F)

WEIGHT*
Detector with/without standard battery
3.9 kg (8.59 lbs) / 3.5 kg (7.71 lbs)

Detector with standard battery in water
1.1 kg (2.42 lbs)

Basic package – Detector in case including standard scope of delivery
11.6 kg (25.57 lbs)

*Tolerance ± 10 %

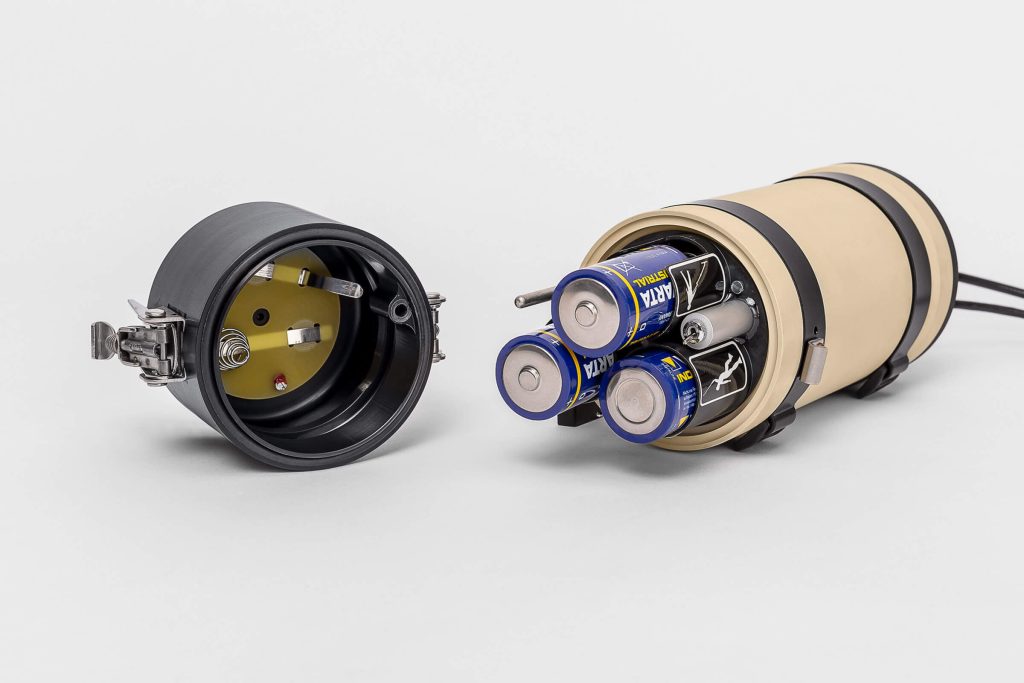

DISPOSABLE/ RECHARGEABLE BATTERY
3 x Alkaline battery 1,5 V Mono LR20 – Standard
3 x Rechargeable battery NiMH 1,2 V Mono HR20/10.000 mAh

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
25 – 40 h in detection mode “Under water”
15 – 25 h in detection mode “Land”

*dependend on type, age and temperature of the batteries.

Subject to changes that serve technical progress.

DOWNLOADS

MW1630B – Metal Detector Underwater (807.8 KB)

SCOPE OF DELIVERY

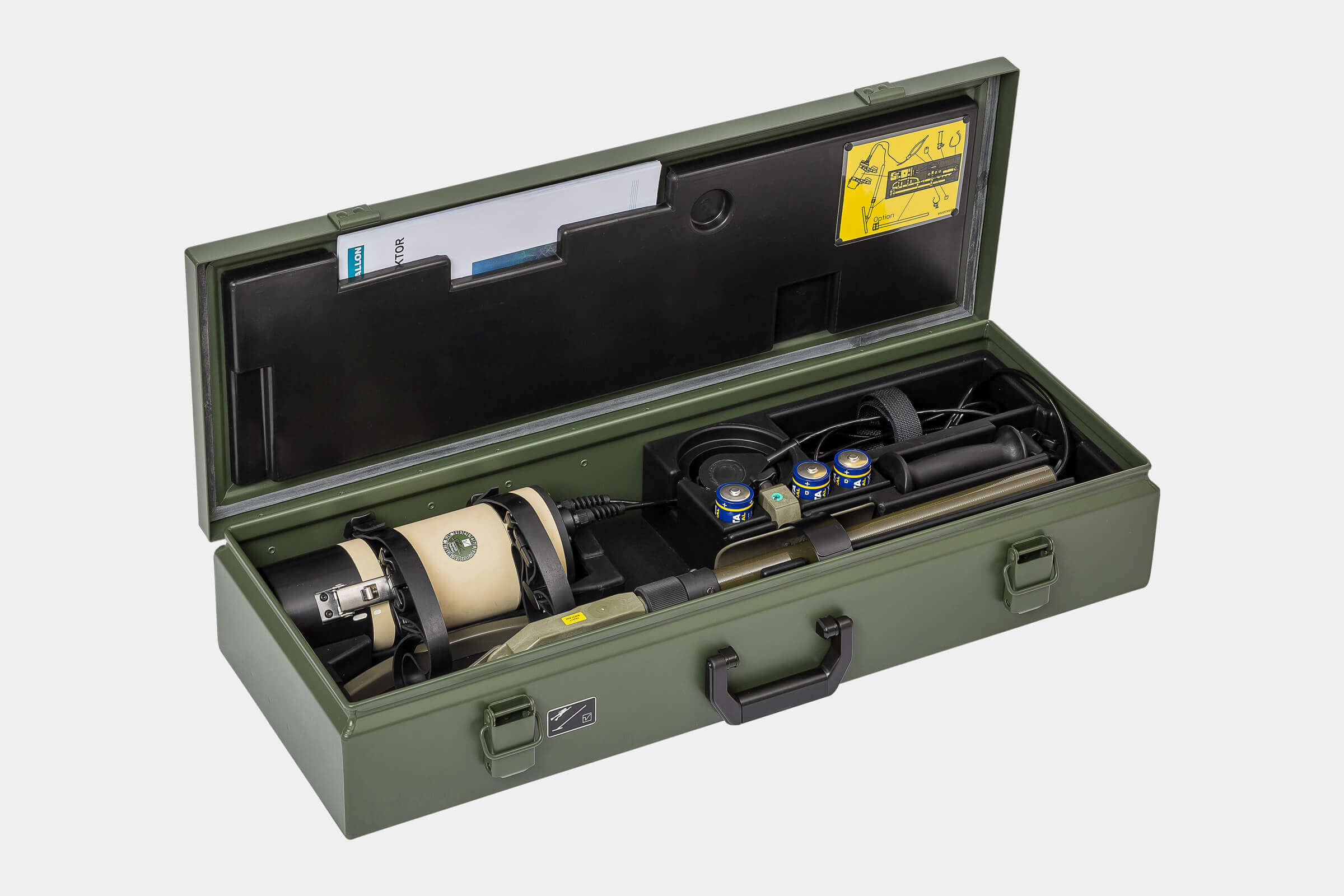

Basic package MW1630B | Item No. 2000530010
Metal Detector MW1630B, Case, Arm rest, Belt for arm rest, Handle, Test piece 35 x 35 x 2 cm, 3 x Alkaline battery 1.5 V Mono LR20, Operation manual, Field manual

PARTS / ACCESSORIES

Item No. 8902310030
Carrying bag VMC1/VMW1
For storage and transport of the detector

Item No. 2802310010
Case VMC1
Rugged case for storage and safe transport of the detector

Item No. 2909990571
Headset VMC1/VMH3CS/VMXC1-1
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

Item No. 2909990751
Headset adapter 6 Pole, 3rd generation
Enables the connection of a standard headset with a 3.5 mm jack socket to the detector

Item No. 8702310101
Strap for arm rest VMC1/VMW1
Strap for arm rest for an improved detector hold in operation

Item No. 2909990847
External battery charger 100-240V/50-60Hz, 12V
Compact external battery charger for charging NiMH-reachargeable batteries

Item No. 5910001002
Alkaline battery 1.5 V baby LR14
Standard battery (not rechargeable)

Item No. 5910001002S3
Alkaline battery 1.5 V baby LR14, 3 ea.
Standard battery (not rechargeable)

Item No. 5920001018
Rechargable battery NiMH 1,2 V baby HR14/6.000 mAh
Rechargeable batteries for long operations

Item No. 5920001006S3
Rechargeable battery NiMH 1,2 V Mono HR20/10.000 mAh, 3 ea.
Rechargeable batteries for long operations

Item No. 2902310044
Test piece with adjustment plate for brake screw
Test piece for a functional check of the metal detector with an adjustment plate attached
