ULTRA-COMPACT METAL DETECTOR VMC4

SKU: 2005000000

Maximum sensitivity in detection of shallow objects

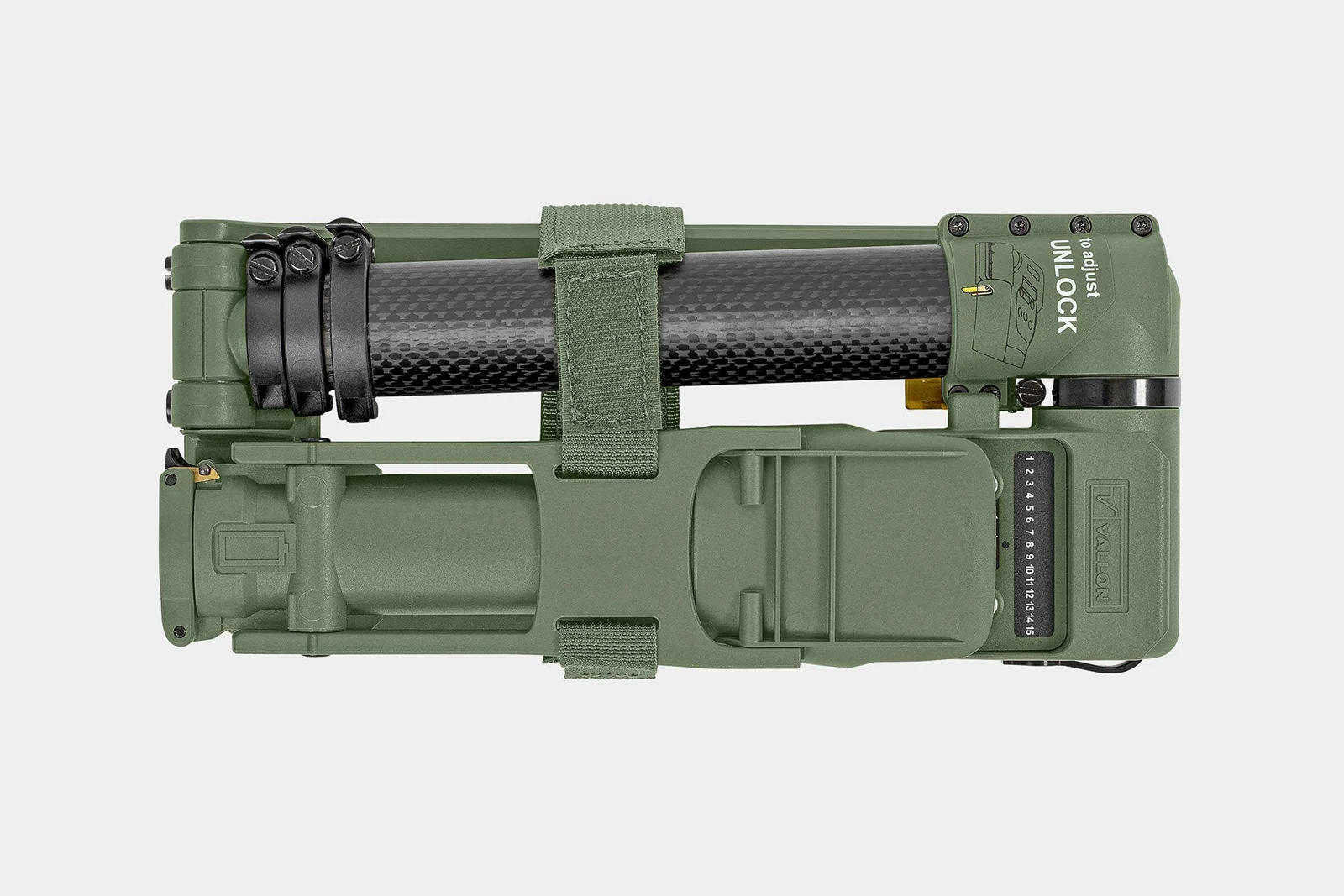

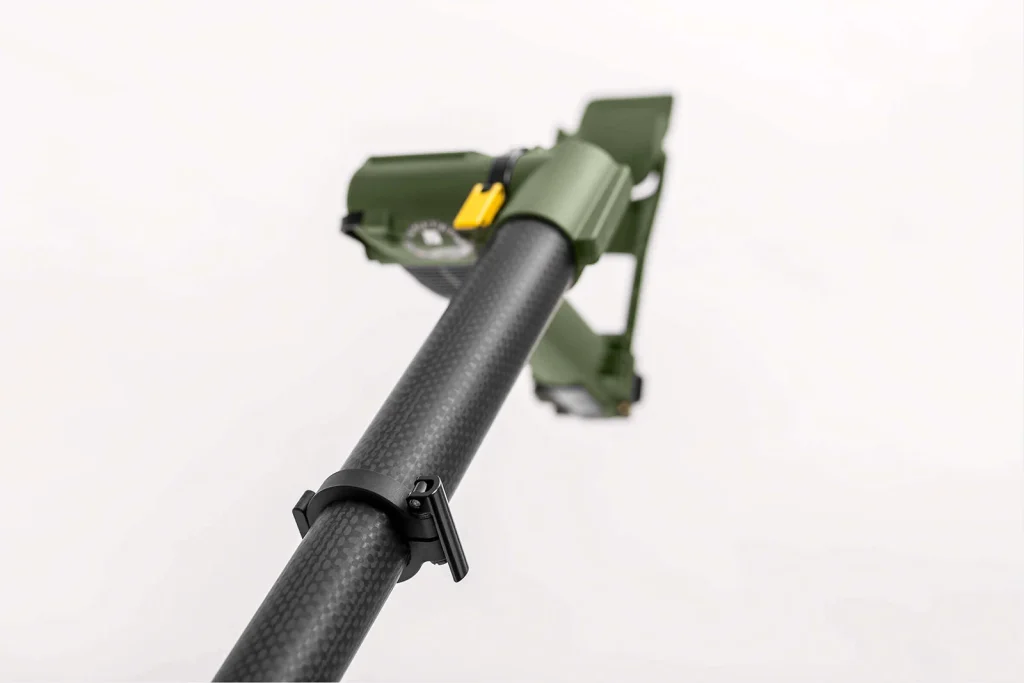

Ultra compact design with high-quality carbon telescoping carrying bar
Detection of material with low conductivity and wires

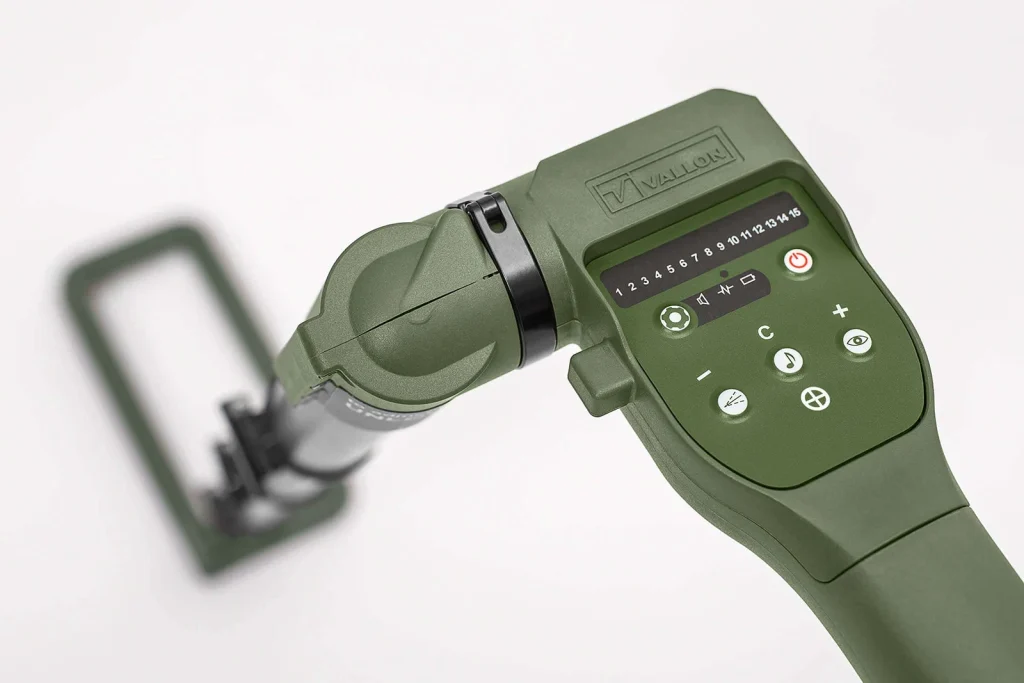

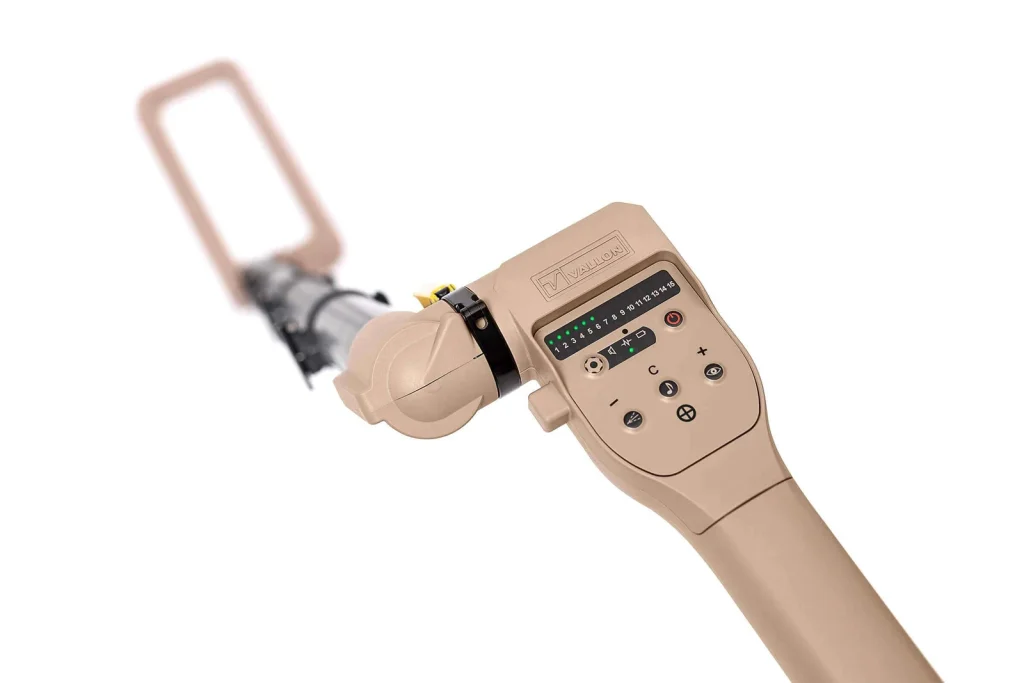

Pinpoint button for a higher degree of location detection accuracy
Integrated GNSS for automatic and manual storage of waypoints
Infrared LED display for use with night vision devices and vibration alarm for covert operations
Bluetooth® and Wi-Fi interface for cable-free access to the integrated web server

The ultra compact metal detector VMC4 is the successor to the proven VMC1 or “Gizmo”, as being nick-named by its many pleased users. As such, it meets stringent requirements of military mine clearance, especially the requirements of special forces.

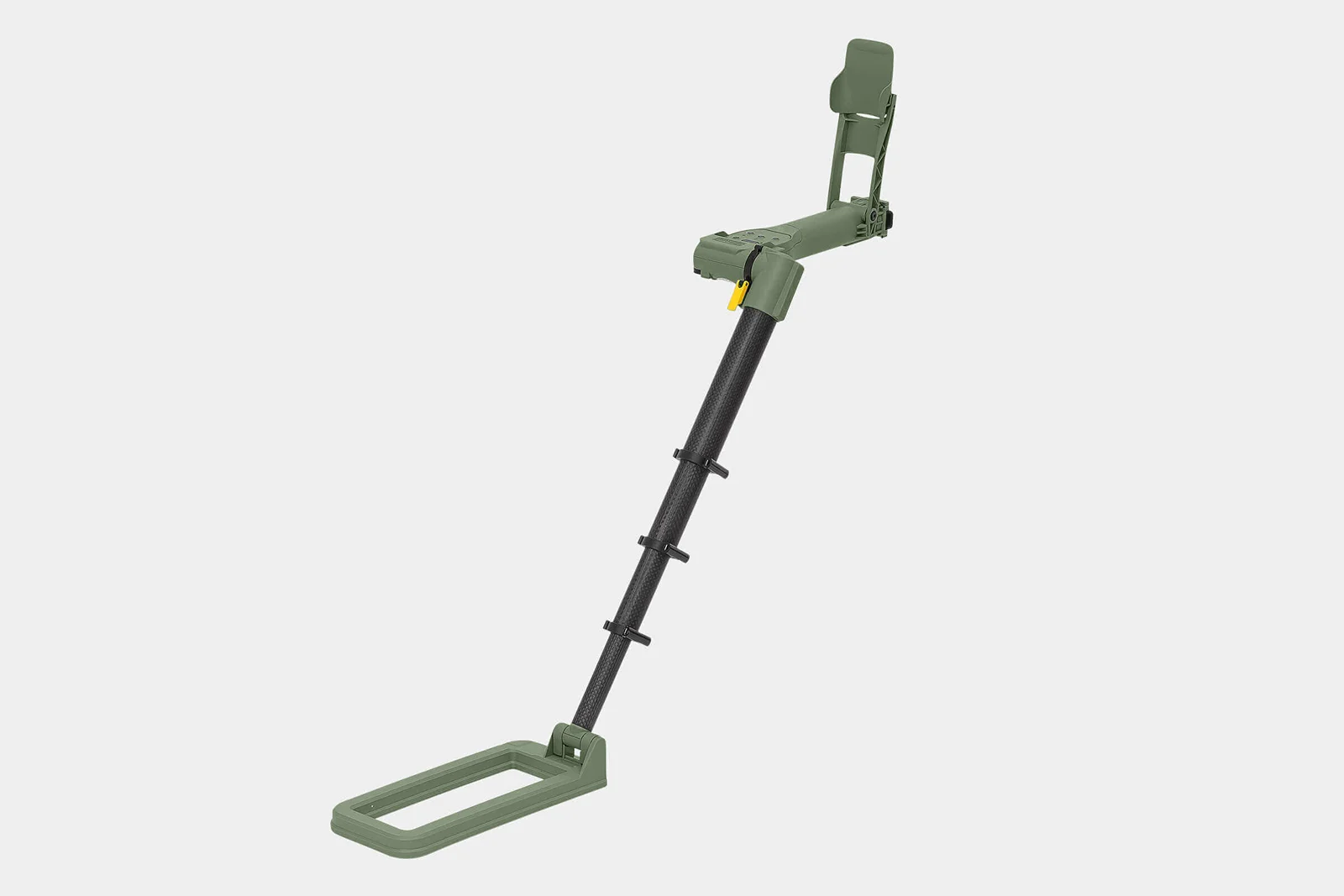

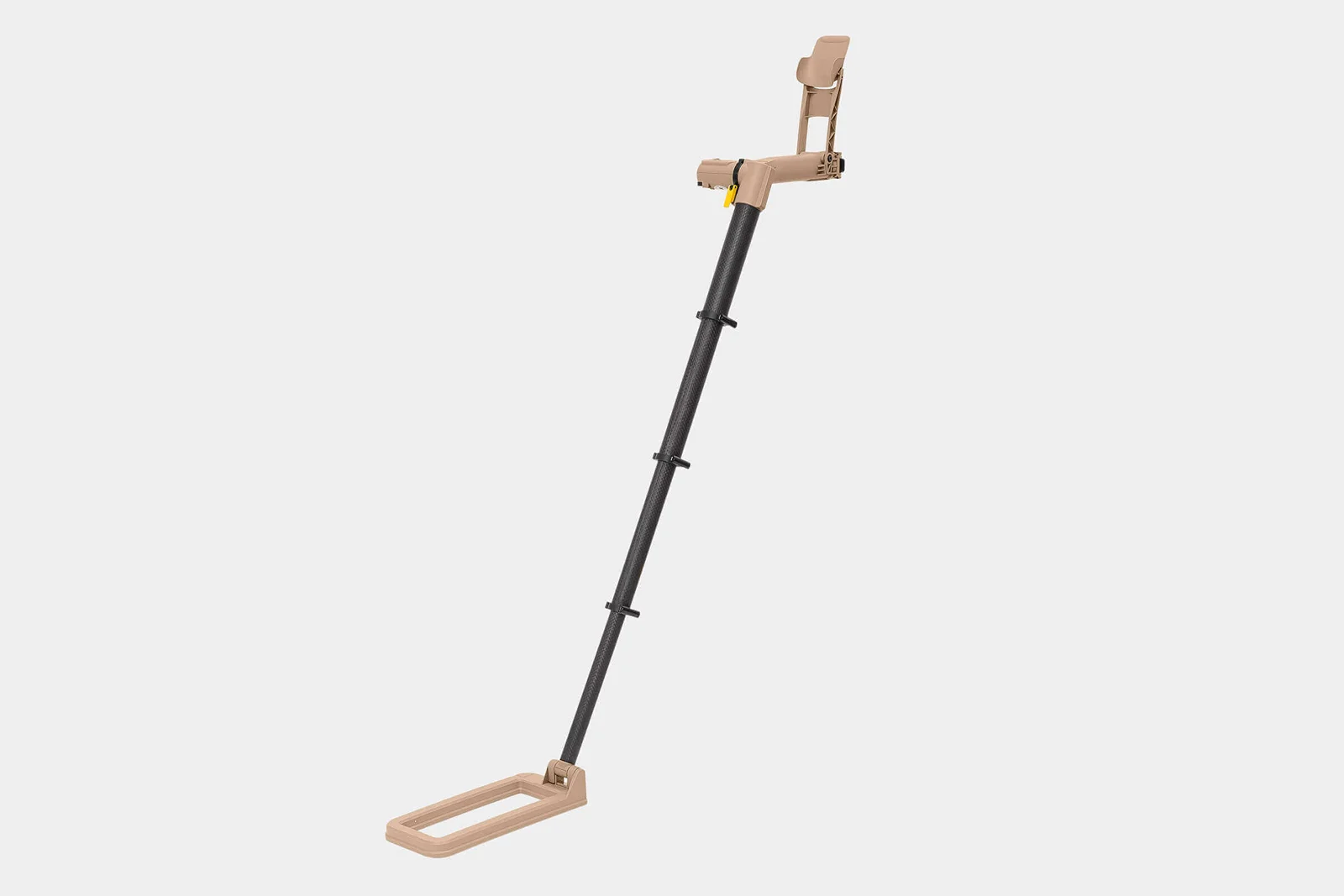

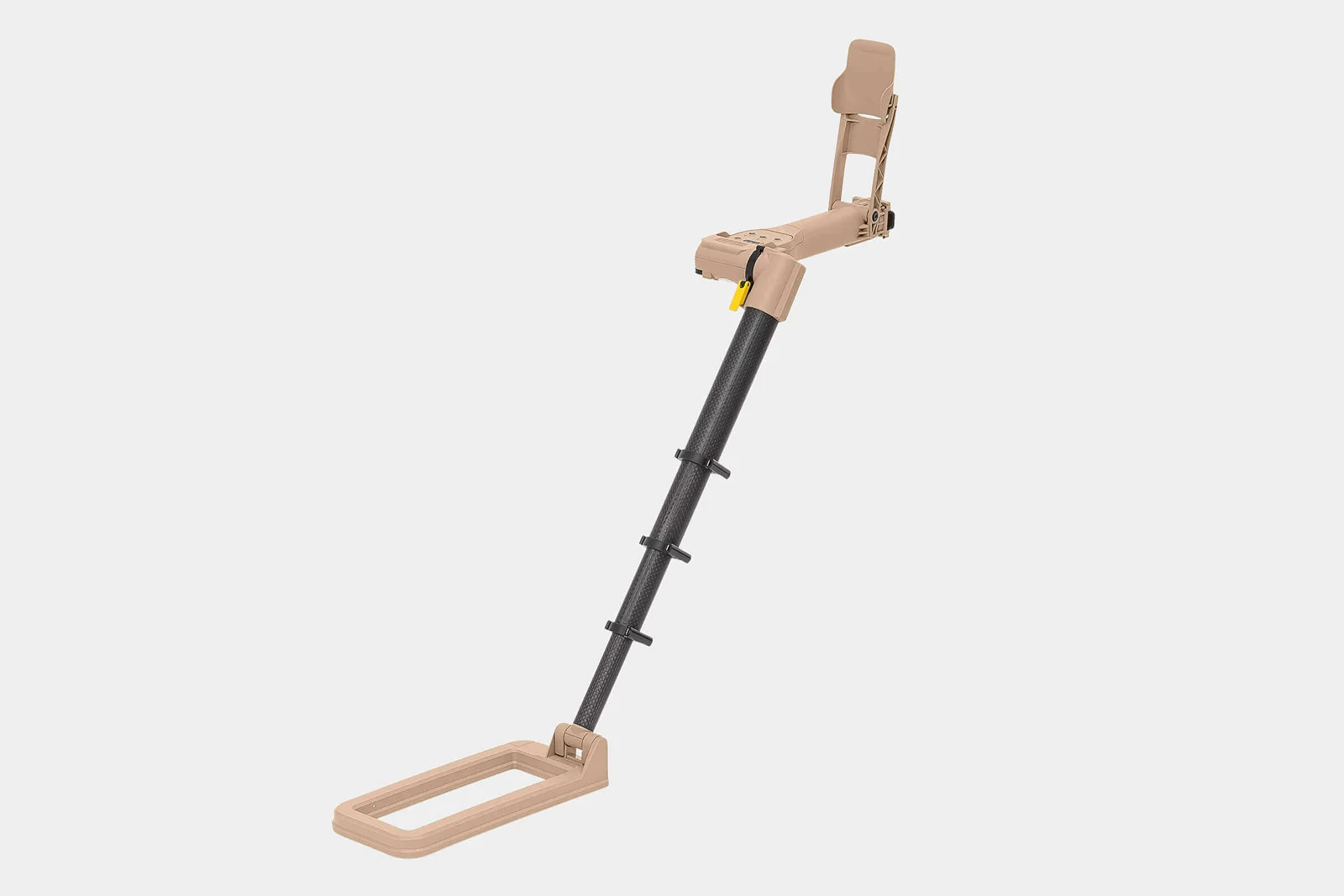

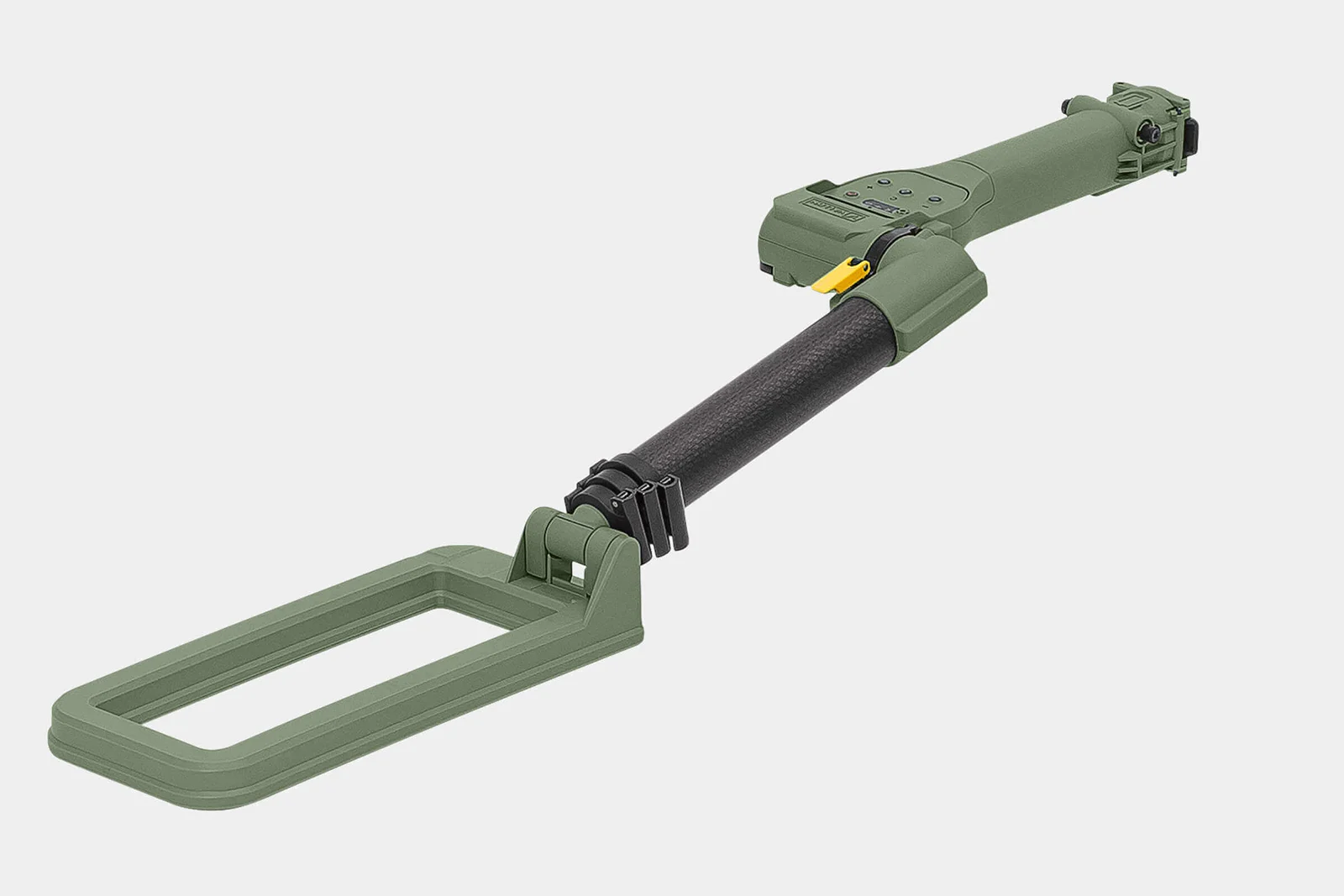

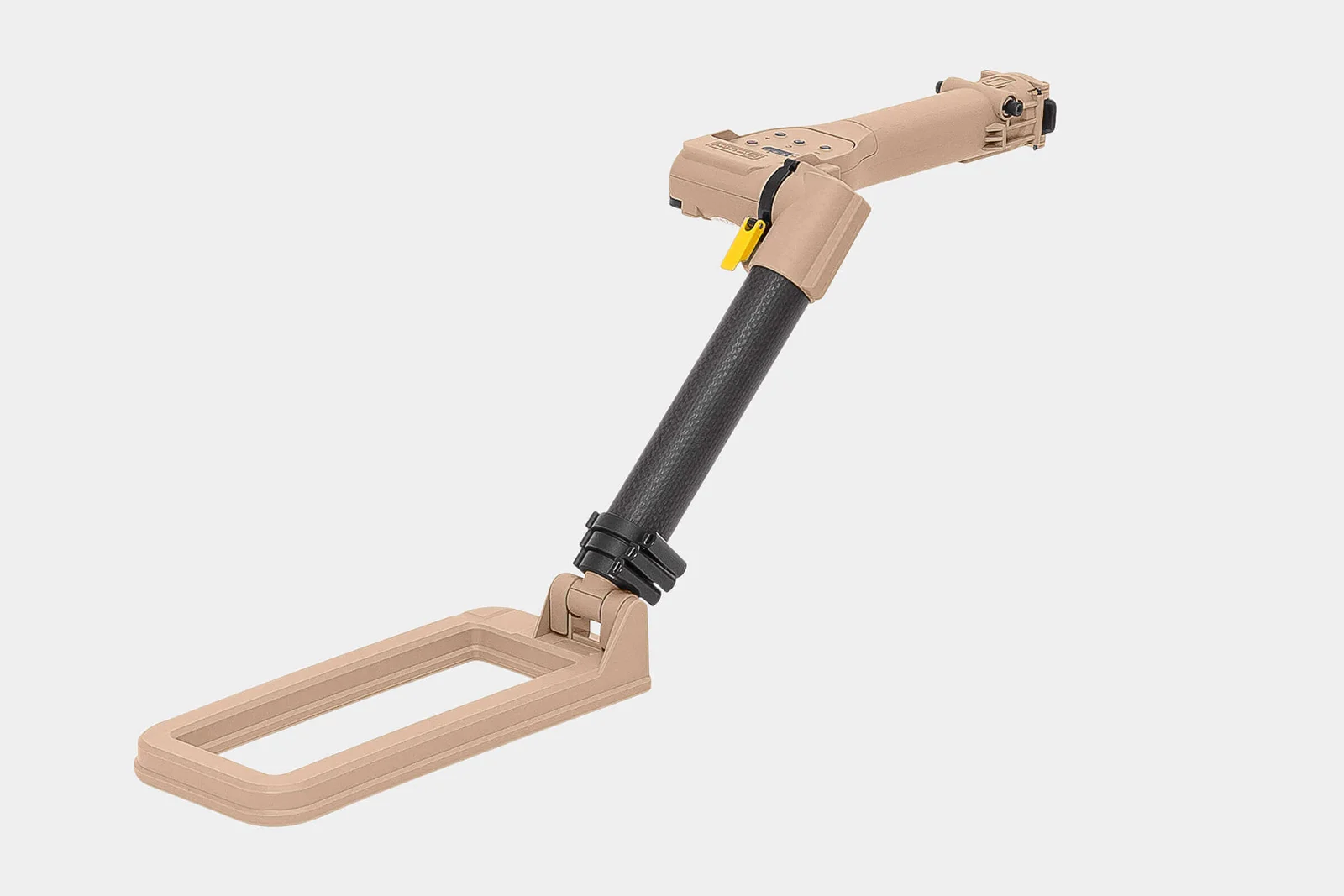

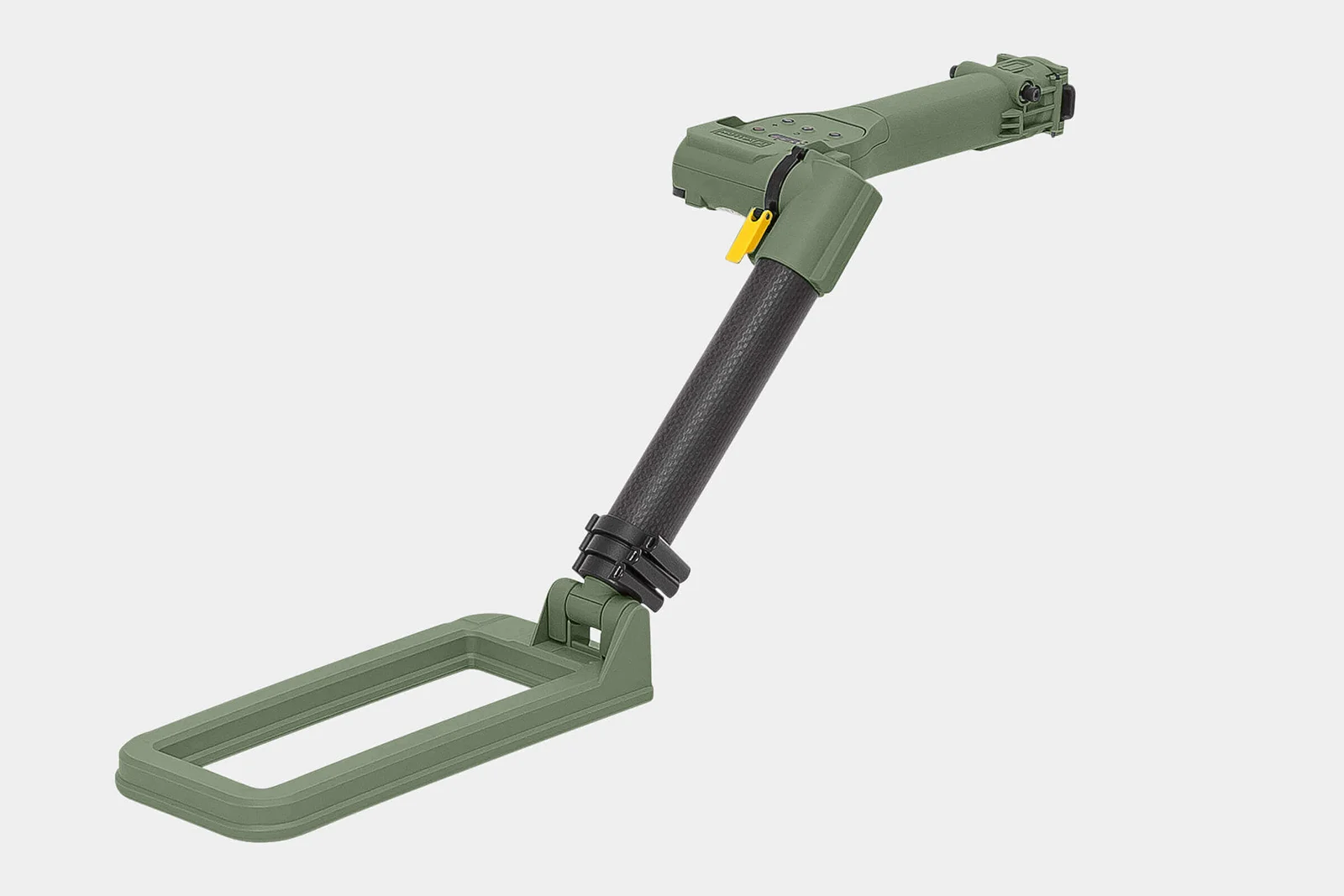

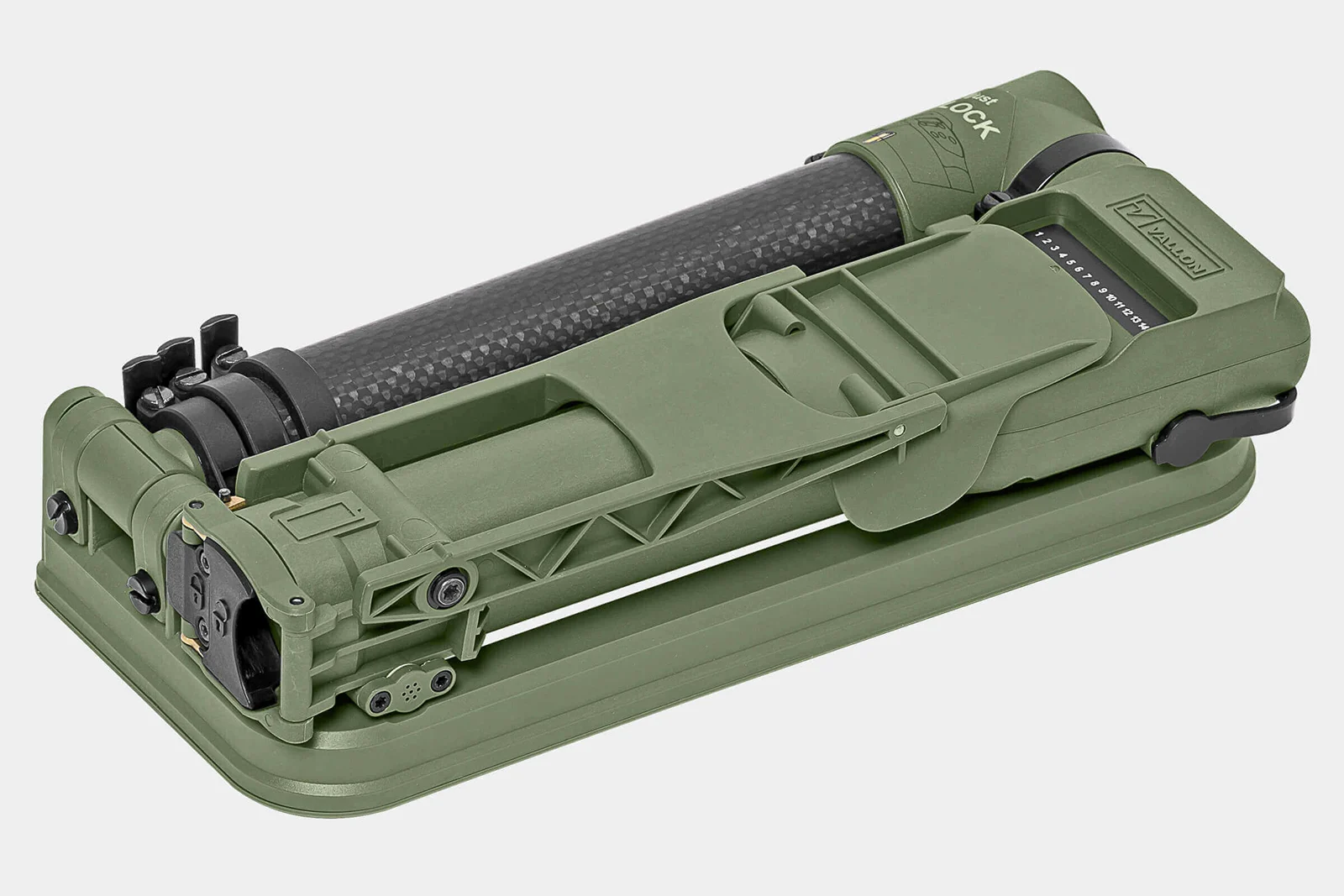

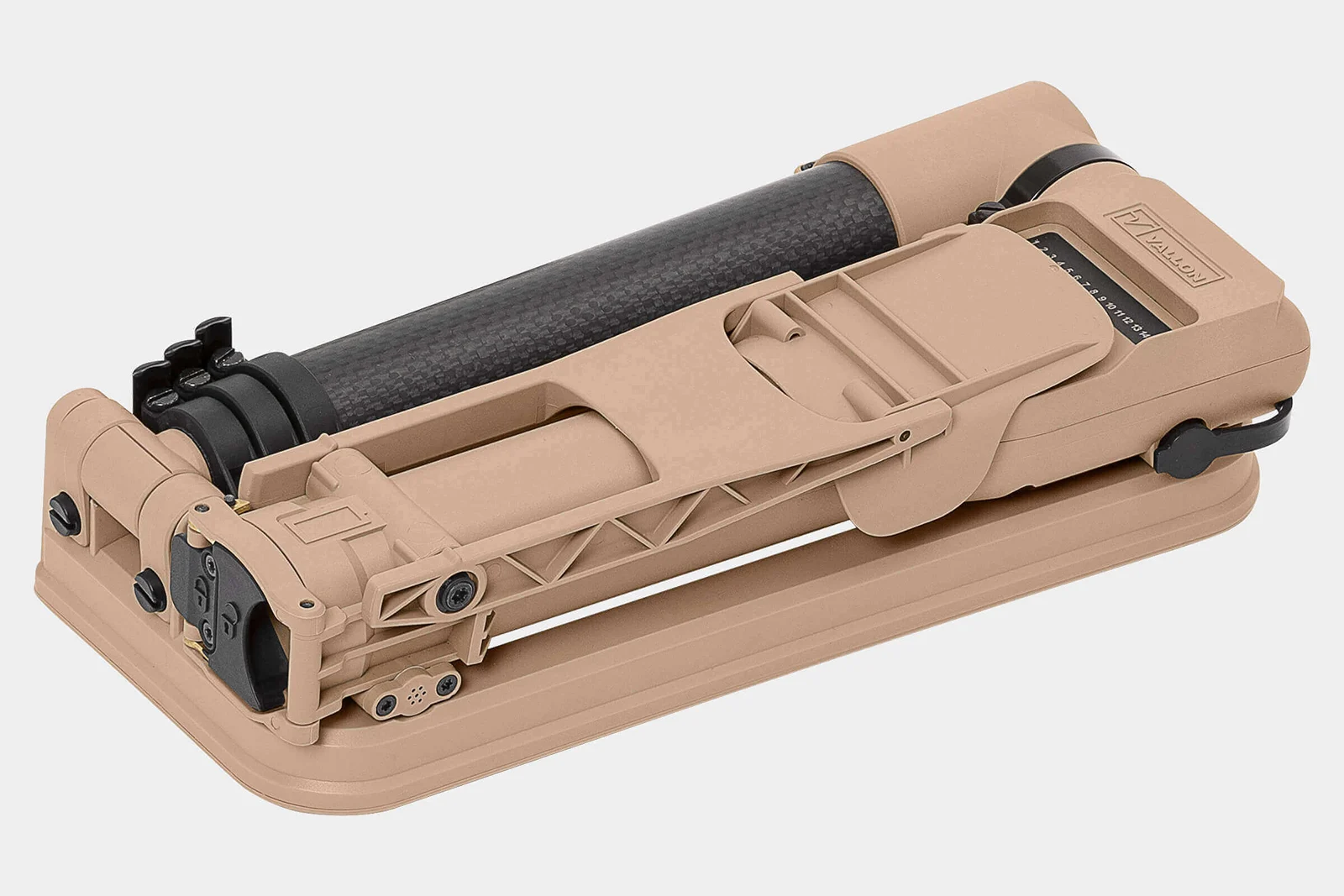

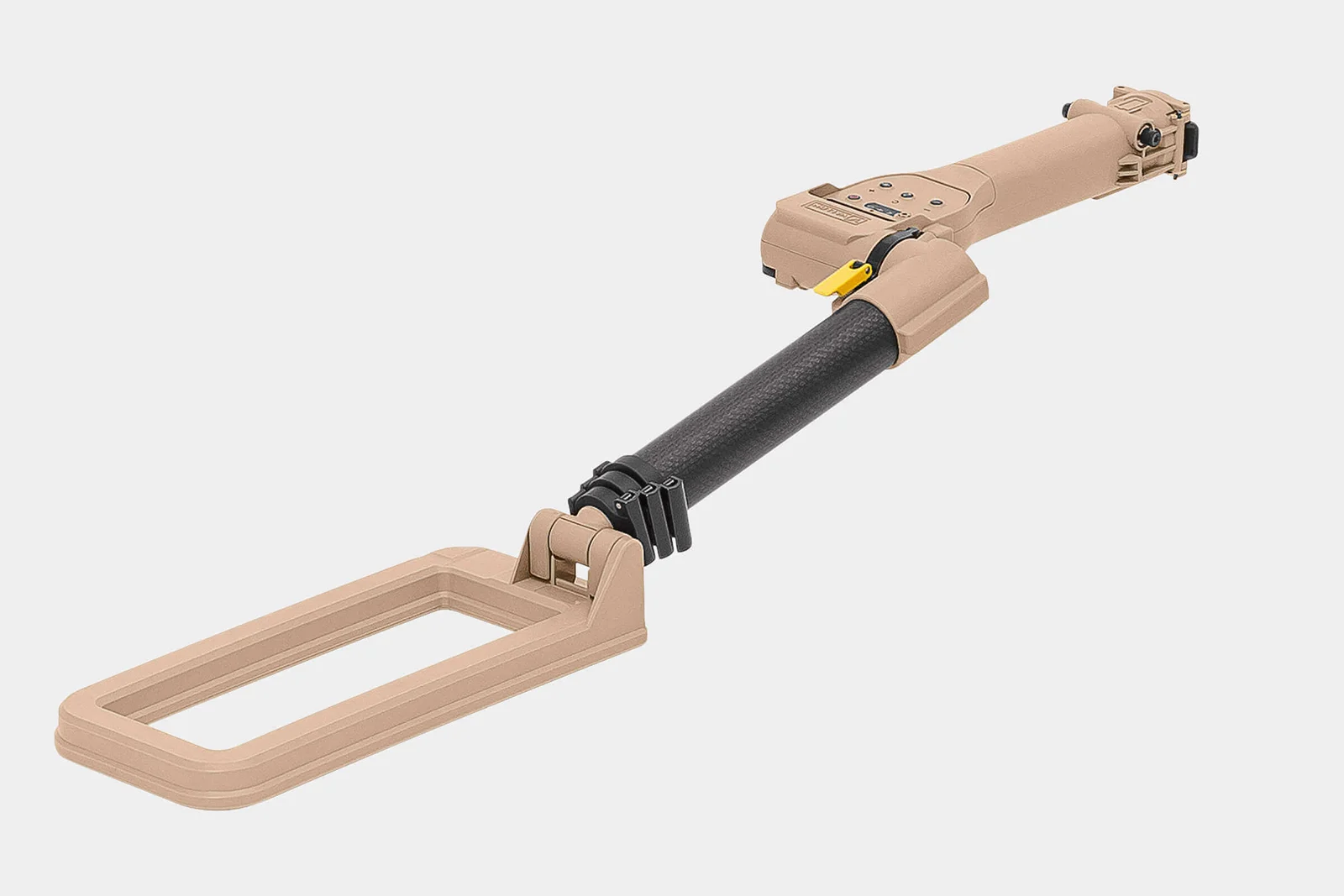

The detector can be converted from an ultra compact package into full-sized detector in just a few steps. Its slim search coil optimizes the use in dense vegetation.

The combination of easy operation and maximum sensitivity leaves the user nothing to be desired. In part, this is because the VMC4 is ideal for all types of soils and shallow water.

Another special feature of this new detector generation is that rechargeable batteries can also be charged right in the device, either with a 110 – 240 V/50 – 60 Hz AC adapter or on a 10 – 30 V vehicle on-board power supply.

Suitable for following searches…

Landmines: Suited for mine detection. Thanks to maximum sensitivity, also responds to mines with low metal content.
IED*: Suited for searching of objects with low conductivity and components typical of improvised explosive devices (e. g. wires and cables).

* Partially restricted

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
Active search coils
27.3 x 12 cm (10.74 x 4.7 in)

ALARM SIGNAL
Visual (LED)/audio/vibration

WATERTIGHT
IP68, 4 m (1 h at 20 °C)

Search coils (additionally 1 m, 8 h at 20 °C)*
*Search coils are suitable for longer detection in shallow waters.

DIMENSIONS*

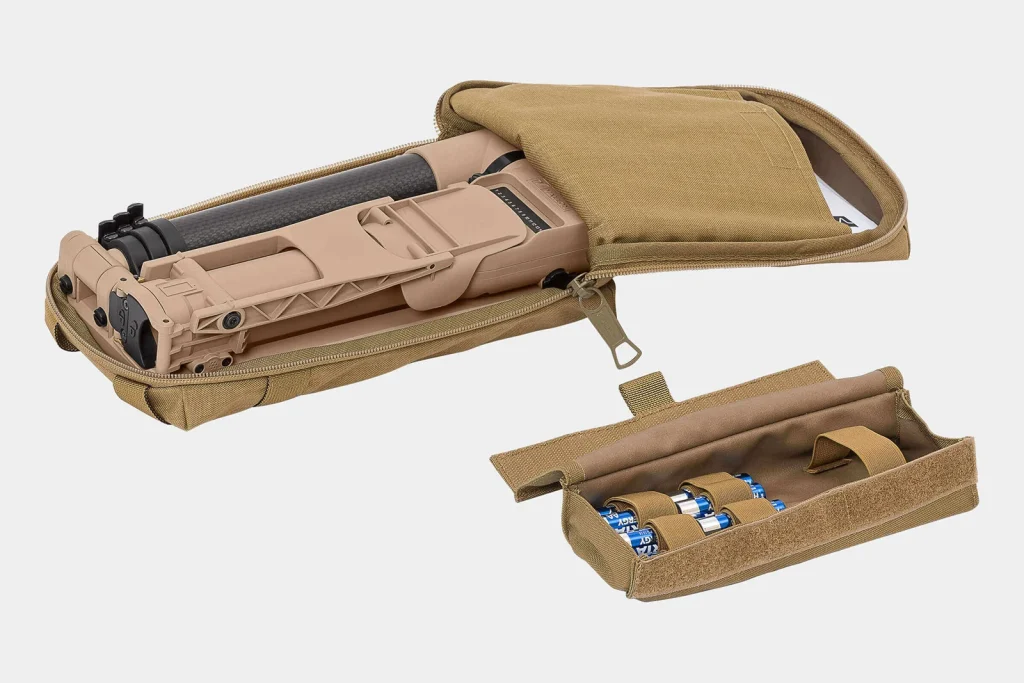

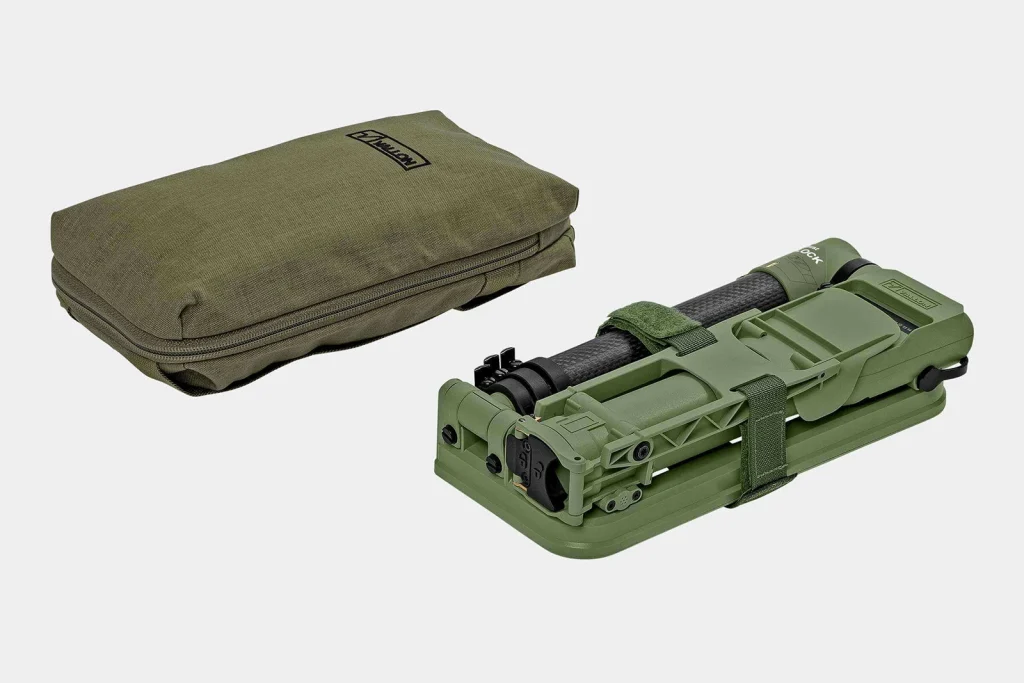

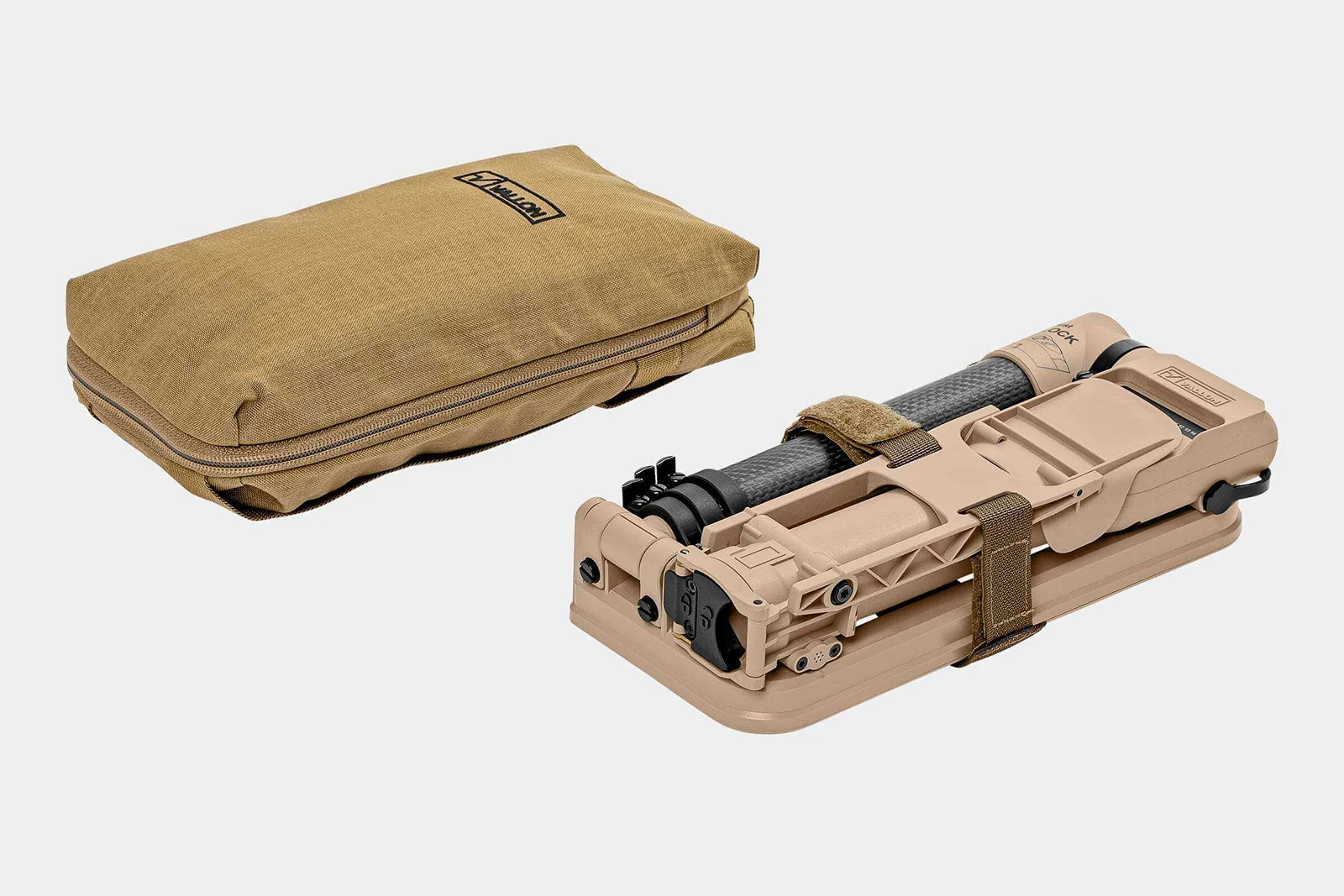

Bag – Standard
28.5 x 12.2 x 6.5 cm (11.15 x 4.73 x 2.45 in)

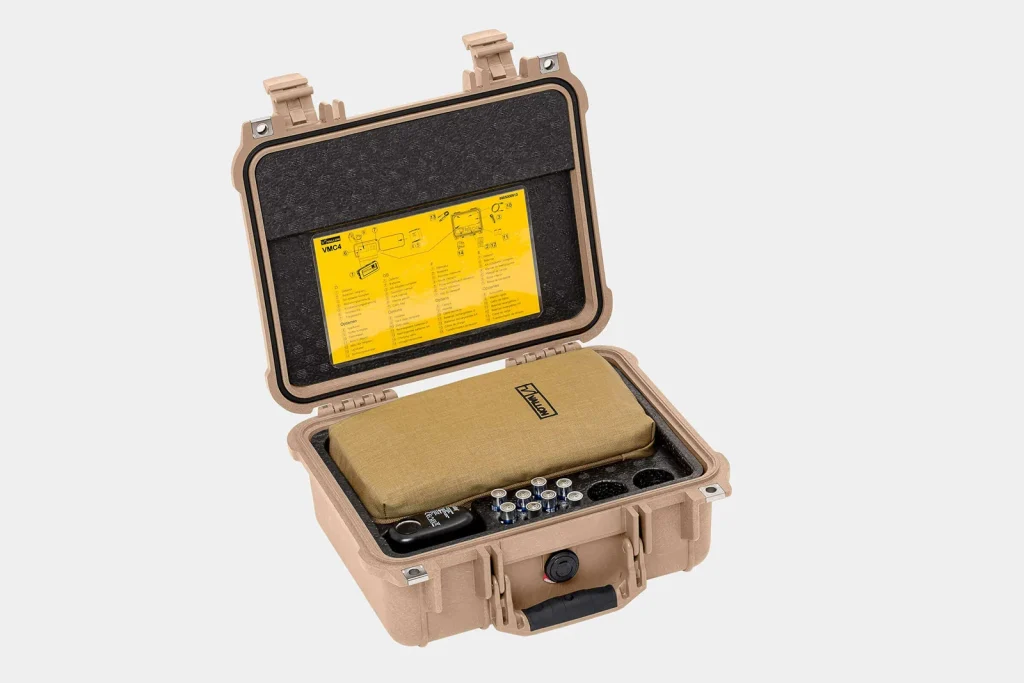

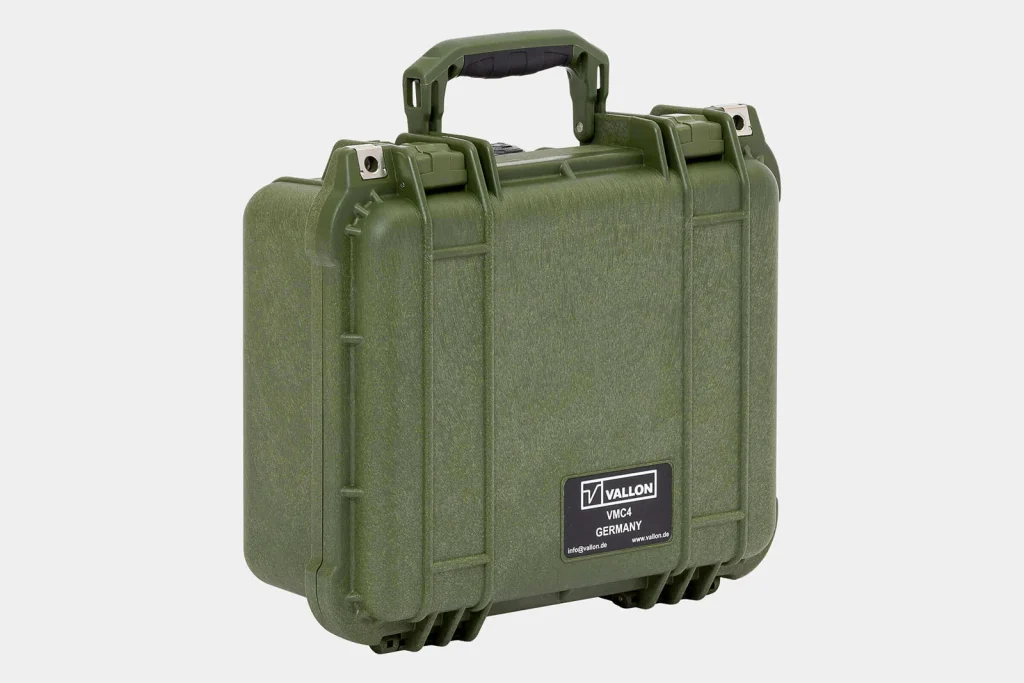

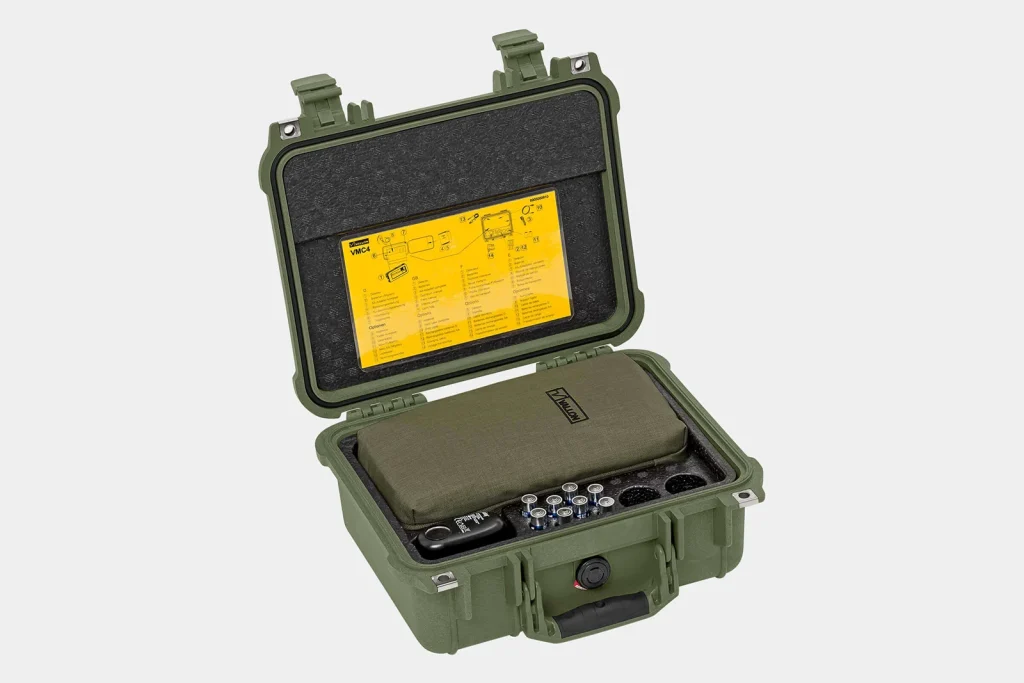

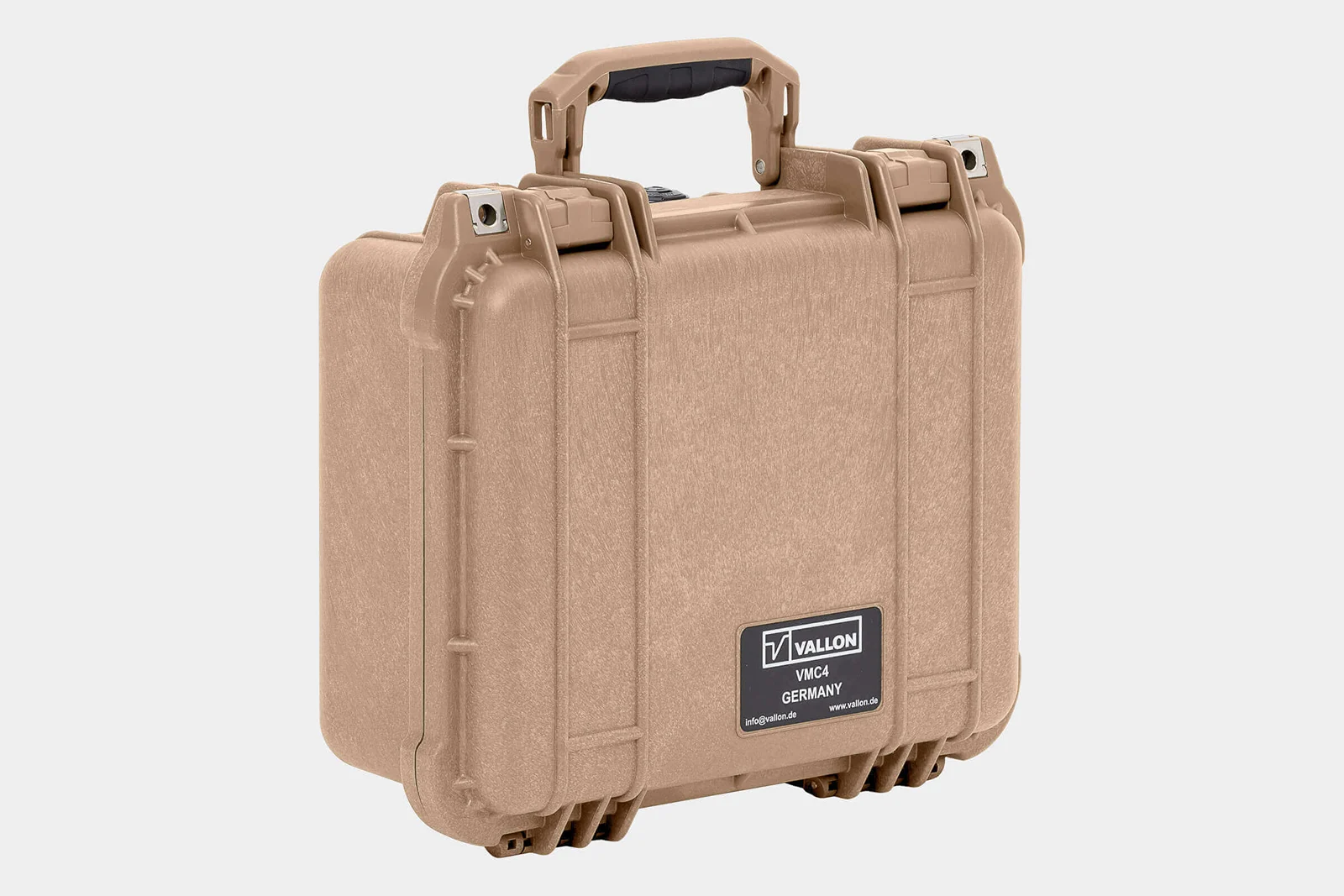

Case
36.5 x 30 x 15.5 cm (14.37 x 18.11 x 6.1 in)

*Tolerance ± 3 %

AMBIENT CONDITIONS
In accordance with MIL-STD-810G
(501.5-I,II, 502.5-I,II, 503.5, 506.4, 512.4, 514.6-C-II, 516.6)

AMBIENT TEMPERATURE
-31°C – + 63°C (-24°F – +145°F)

STORAGE TEMPERATURE
-51°C – +71°C (-60°F – +160°F)

WEIGHT*
Detector with/without standard battery
1.41 kg (3.11 lbs) / 1.13 kg (2.49 lbs)

Basic package – Detector in bag including standard scope of delivery
1.51 kg (3.33 lbs)

Basic package in case
3.55 kg (7.83 lbs)

*Tolerance ± 10 %

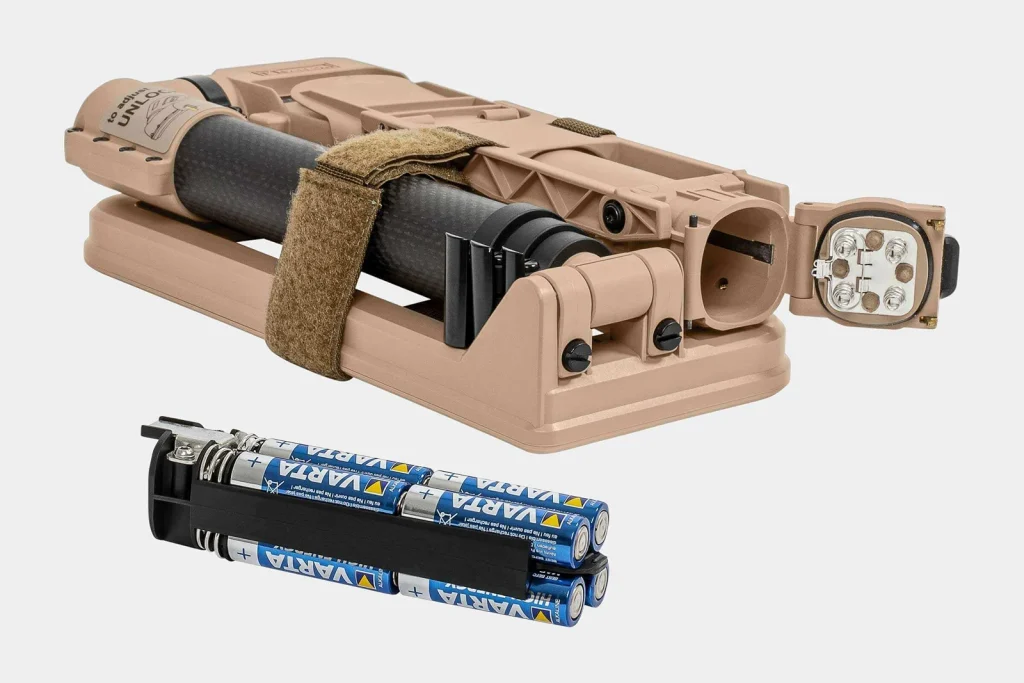

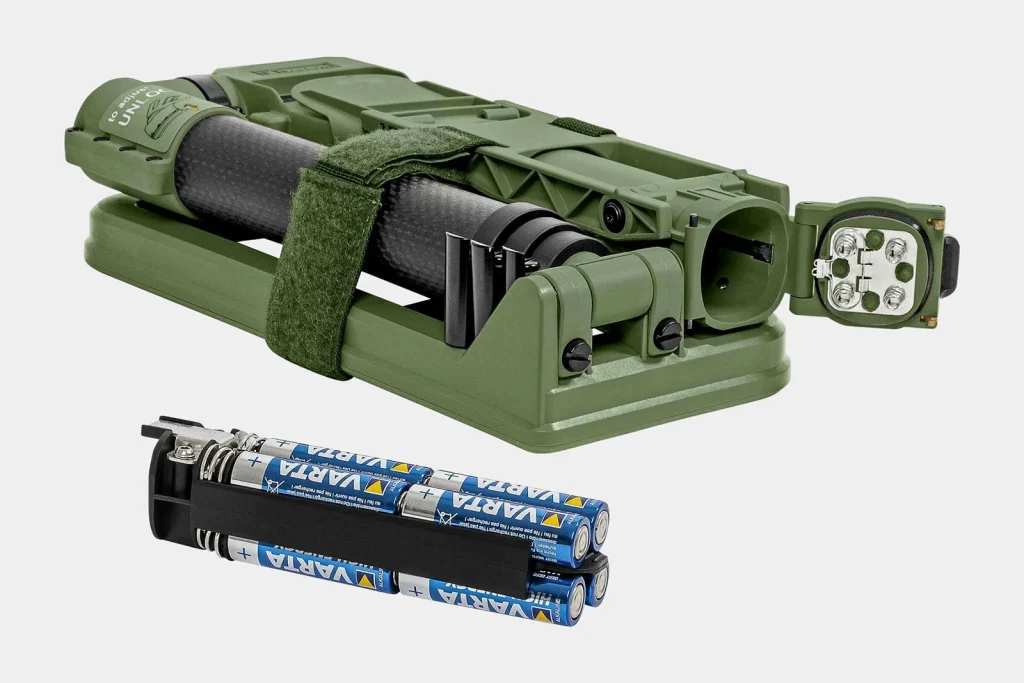

DISPOSABLE/ RECHARGEABLE BATTERY
8 x Mignon LR6 1.5 V alkaline battery – Standard
8 x Mignon HR6 1.2 V NiMH rechargeable battery

2 x Mono LR20 1.5 V alkaline battery – Emergency operation
2 x Mono HR20 1.2 V NiMH rechargeable battery

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
Alkaline batteries: About 7 h
NiMH rechargeable batteries (2,700 mAh): About 12 h

Alkaline batteries for emergency operation: About 3 h
NiMH rechargeable batteries (10,000 mAh): About 12 h

*Ambient temperature of about 20 °C, LR20: Varta Industrial, HR20: NiMH rechargeable batteries

Subject to changes that serve technical progress.

DOWNLOADS

VMC4 – Ultra Compact 4th Generation Metal Detector for Special Forces (1.2 MB)

Over-Ear Headphones for VMF4/VMH4/VMC4 (382.7 KB)

SCOPE OF DELIVERY

Basic package VMC4 | Item No. 2005000000

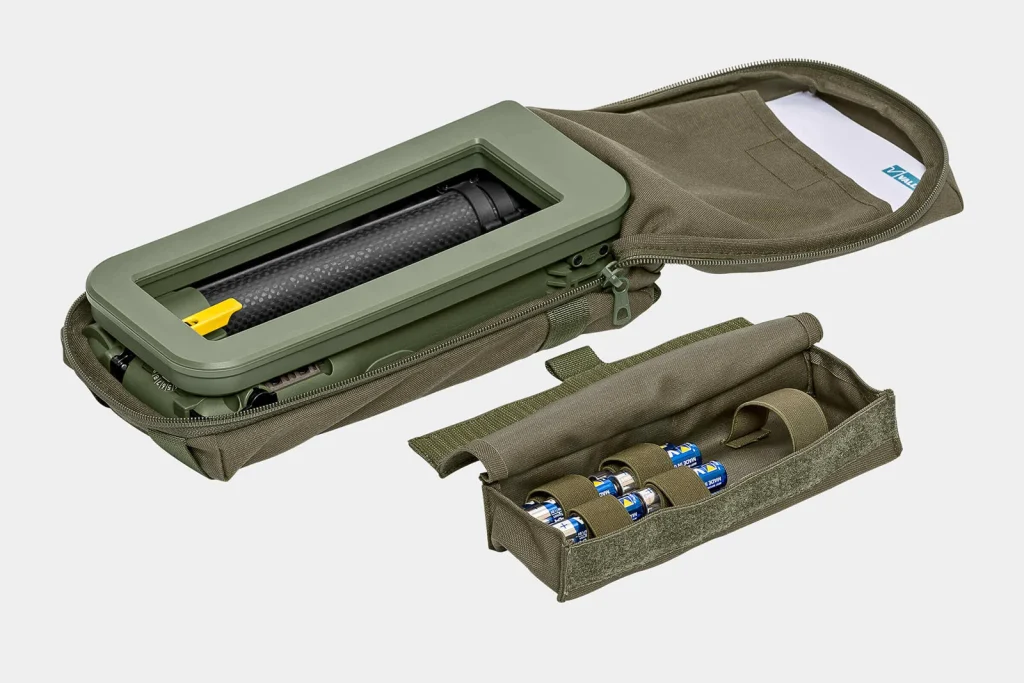

Metal Detector VMC4, Transport bag, Internal pouch, Adapter Mignon cells, 8 x Alkaline battery 1.5 V Mignon LR6, Operational manual, Field manual

PARTS / ACCESSORIES

Item No. 8904090515
Backpack VMF4, olive
For storage and transport of the detector

Item No. 2904090125
Case VMF4, olive
Rugged case for storage and safe transport of the detector

Item No. 2904090010
Search coil VS20, Ø 20 cm, olive
For the detection of metal

Item No. 8904090700
Cover for search coil VS20, Ø 20 cm, olive
Additional protection cover for search coil VS20

Item No. 2904090025
Search coil VS25, Ø 25 cm, olive
For the detection of metal

Item No. 2904090200
UXO search coil VS30, Ø 30 cm, olive
Optimized for the detection of submunition and UXO

Item No. 8904090890
Bag UXO search coil VS30, olive
For storage of UXO search coil VS30, Ø 30 cm

Item No. 2904090210
UXO search coil VS60, Ø 60 cm, olive
Optimized for the detection of submunition and UXO

Item No. 8904091330
Bag UXO search coil VS60, olive
For storage of UXO search coil VS60

Item No. 2904090230
Stick probe VSP4
Enables the detection in dense vegetation

Item No. 2909990733
Test piece with adjustment plate for brake screw
Test piece for a functional check of the metal detector with an adjustment plate attached

Item No. 2904090480
Over-ear headphone single-sided VMF4/VMH4/VMC4
Comfortable, waterproof and non-magnetic single-sided over-ear headphone for use in a noisy environment

Item No. 2904090450
Over-ear headphone single-sided with cover for the second ear VMF4/VMH4/VMC4
Comfortable, waterproof and non-magnetic single-sided over-ear headphone with cover for the second ear for use in a noisy environment

Item No. 2904090090
On-ear headphone single-sided VMF4/VMH4/VMC4
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

Item No. 5110307076
Data cable VMF4/VMH4/VMC4
For the data transfer between detector and PC

Item No. 2504090071
Charging cable VMF4/VMH4/VMC4
For Charging of rechargable batteries NiMH directly in the detector by using the vehicle plug socket 12/24V
