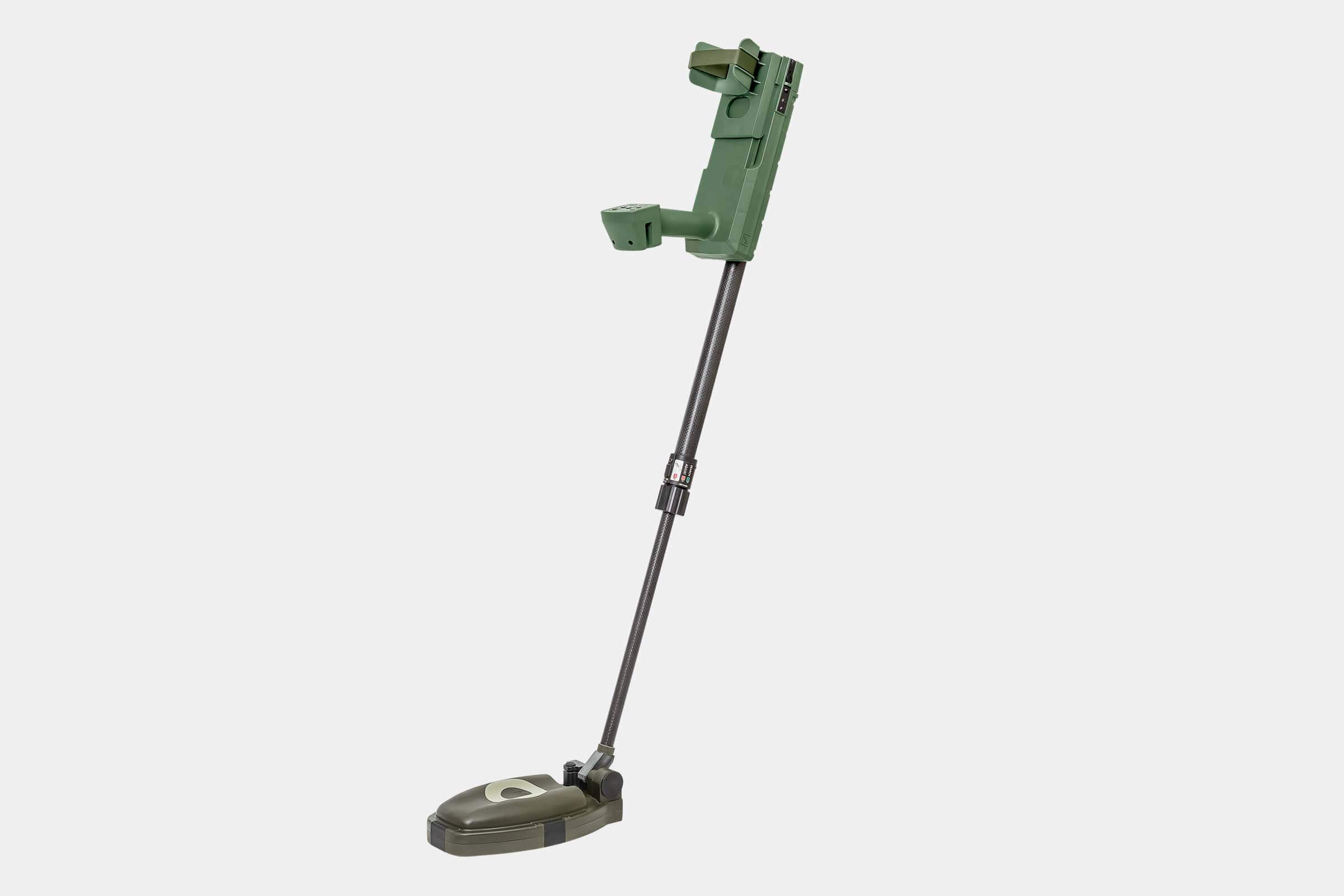

DUAL-SENSOR DETECTOR VMR3 “MINEHOUND”

DUAL-SENSOR DETECTOR VMR3 “MINEHOUND”

SKU: 2002830010

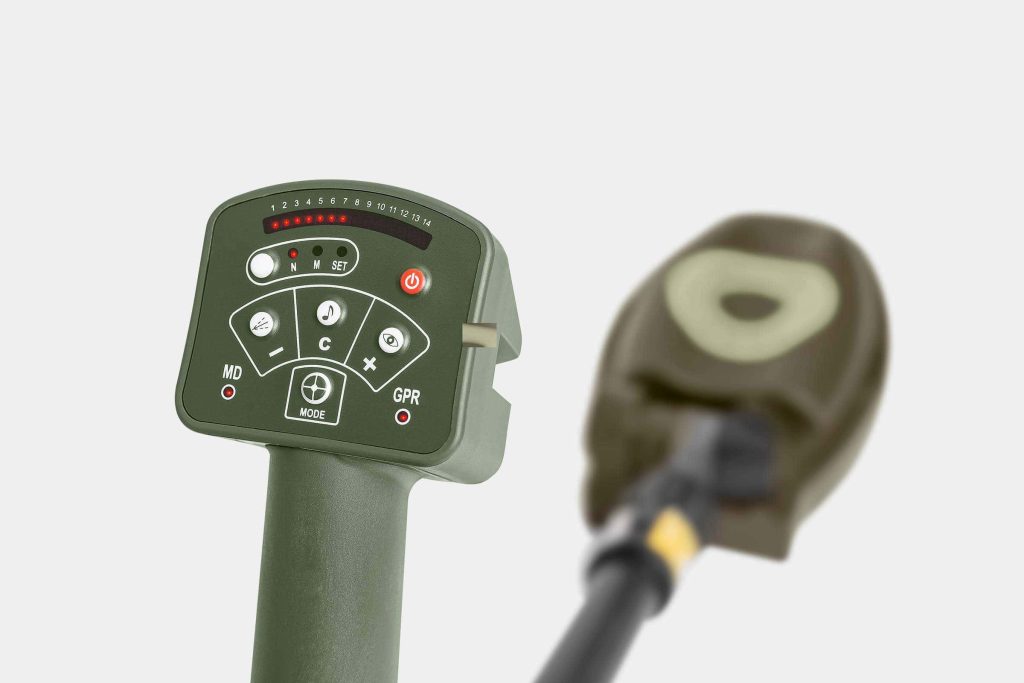

Dual-Sensor Detector with LED Display

Dual-sensor search head with metal detector (MD) and ground-penetrating radar (GPR)

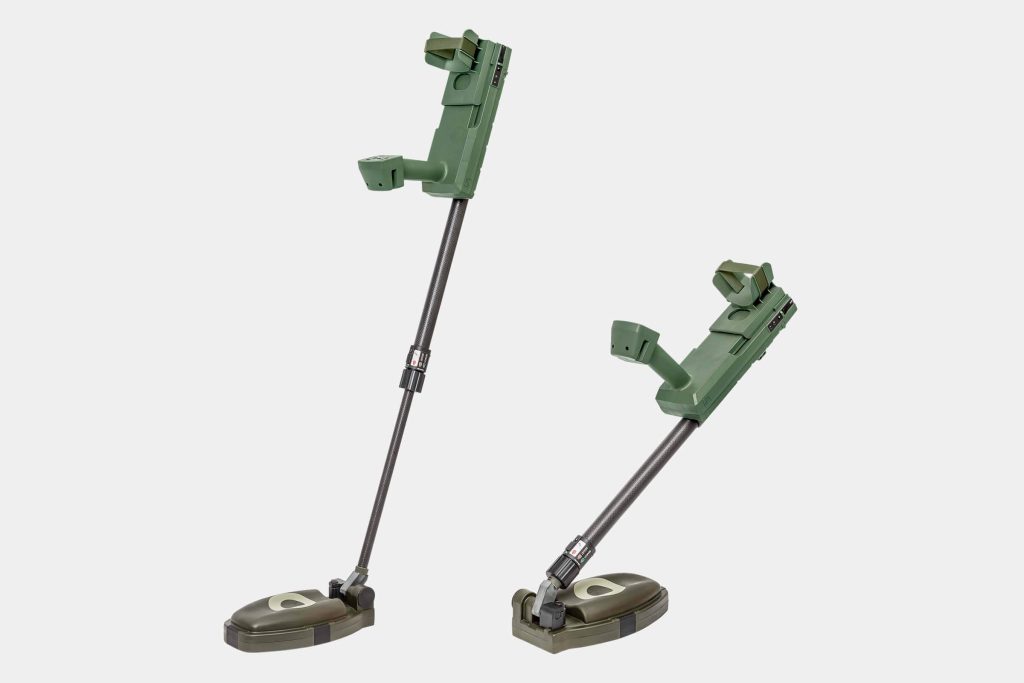

Rugged mechanical design with high-quality carbon telescoping carrying bar
High sensitivity combined with high-efficiency soil compensation
Detection of minimum metal and metal-free objects such as improvised explosive devices (IEDs)
Easily noticeable alarm indication (audio/visual/vibration)

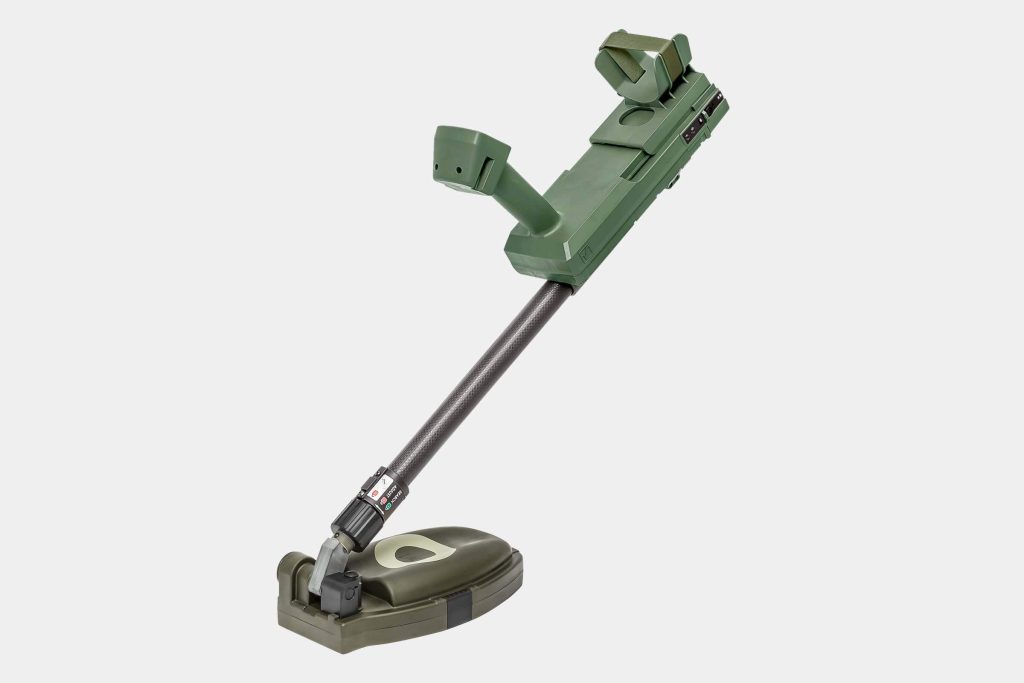

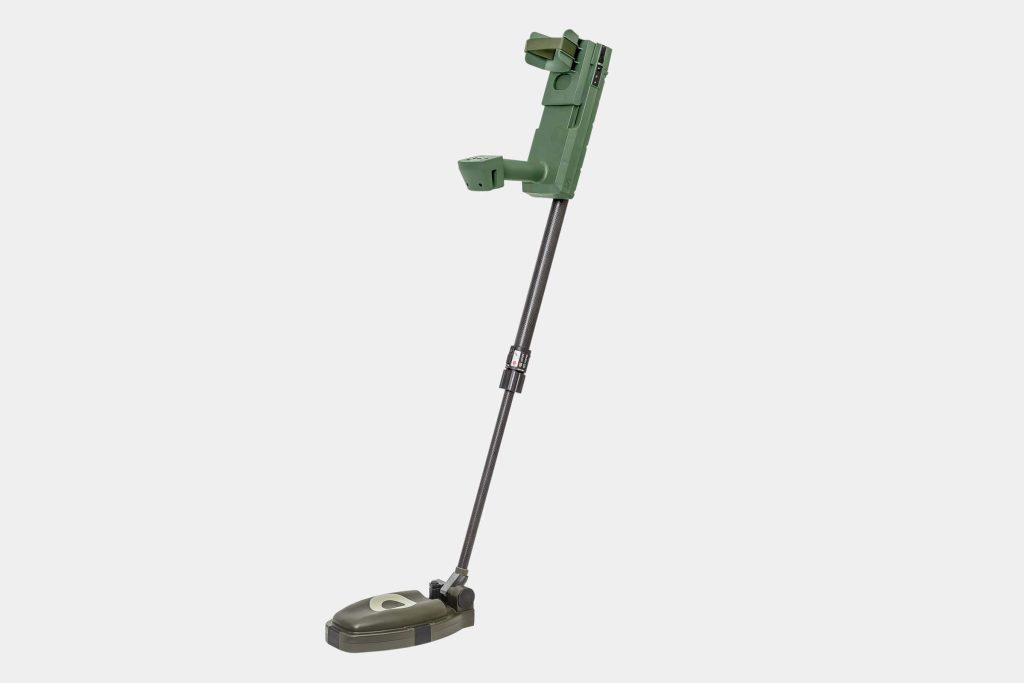

The VMR3 “Minehound” dual-sensor detector is internationally proven. It is ideal for the simultaneous detection of metal and metal-free objects. This is a decisive advantage e.g. for the detection of IEDs.

Two different audio signals help the user distinguish between the ground-penetrating radar (GPR) and metal detector (MD). The MD provides a simple alarm while the GPR supplies acoustic information on the depth and dimension of the object. Based on the settings, the audio signals are visually supported by the LED display.

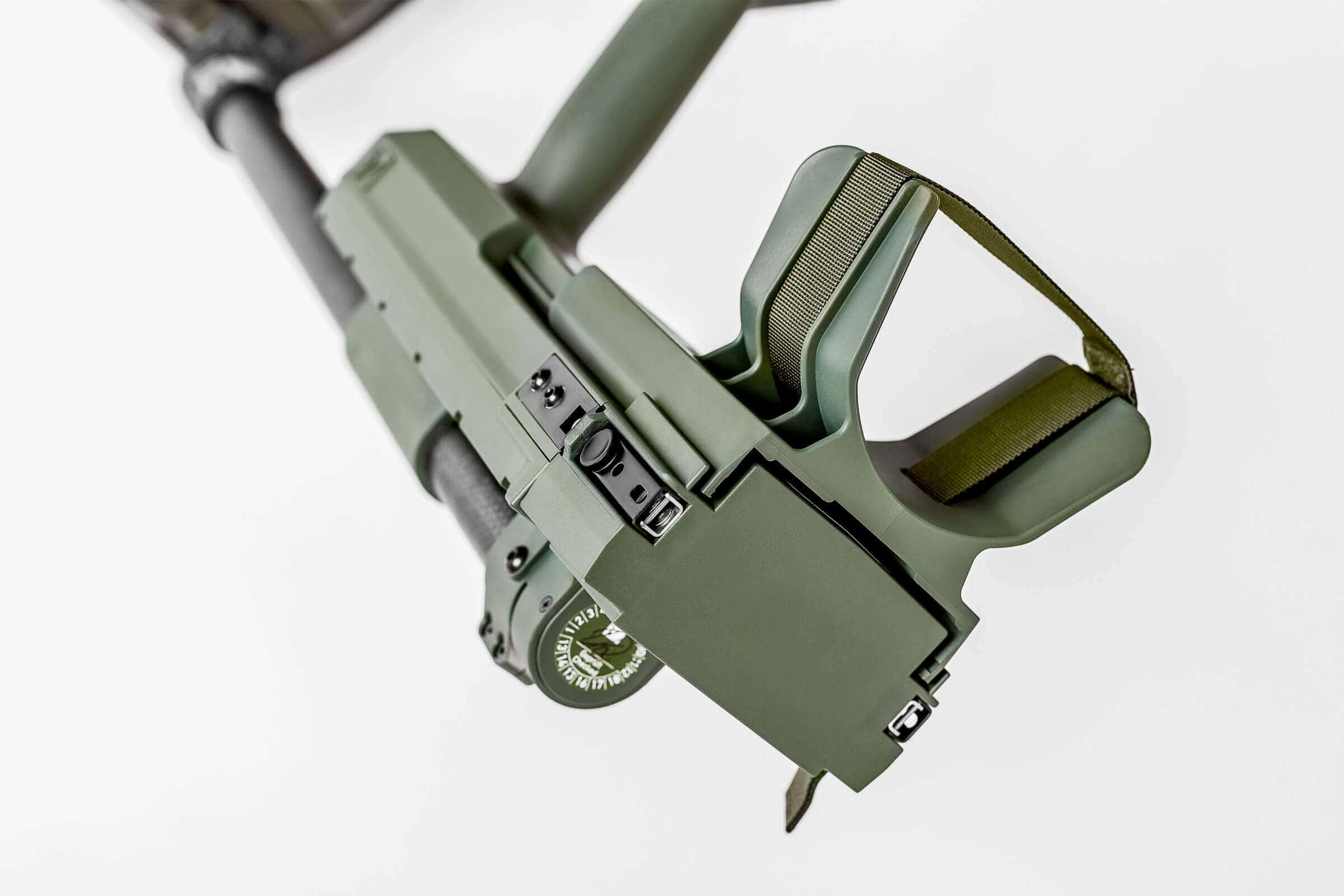

The VMR3 is also characterized by its mechanical features: The use of carbon and glass fiber-reinforced plastic makes it extremely rugged and durable.

It meets high standards for military mine clearance and humanitarian demining.

Suitable for following searches…

Mines: Suited for mine detection. Thanks to maximum sensitivity, also reacts to mines with low or no metal content.
UXO*: Ideal for shallow searching for all types of metal (e. g. unexploded ordnances, submunitions, etc.).
IED*: Thanks to a ground-penetrating radar, it is ideal for efficiently searching for objects with low or no metal content.

* Partially restricted

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
Dual-sensor search head
Metal detector (MD) and ground-penetrating radar (GPR)
31.5 x 18 cm (12.40 x 7.09 in)

ALARM SIGNAL
Visual (LED)/audio/vibration

WATERTIGHT
IP68, 1.5 m (1 h at 20 °C)

DIMENSIONS*
Case: 102 x 43 x 17 cm (40.15 x 16.93 x 6.70 in)
*Tolerance ± 3 %

AMBIENT CONDITIONS
In accordance with MIL-STD-810G
(501.5-I, II, 502.5-I, II, 503.5, 506.5, 512.5, 514.6-C-II & C-VI, 516.6)

AMBIENT TEMPERATURE
-31°C – + 63°C (-24°F – +145°F)

STORAGE TEMPERATURE
-51°C – +71°C (-60°F – +160°F)

WEIGHT*
Detector with/without standard battery
4.0 kg (8.82 lbs) / 3.54 kg (7.80 lbs)

Basic package – Detector in case including standard scope of delivery
14.60 kg (32.19 lbs)

*Tolerance ± 10 %

DISPOSABLE/ RECHARGEABLE BATTERY
1 x VAP3 7.4 V/5.4 Ah lithium polymer rechargeable battery – Standard

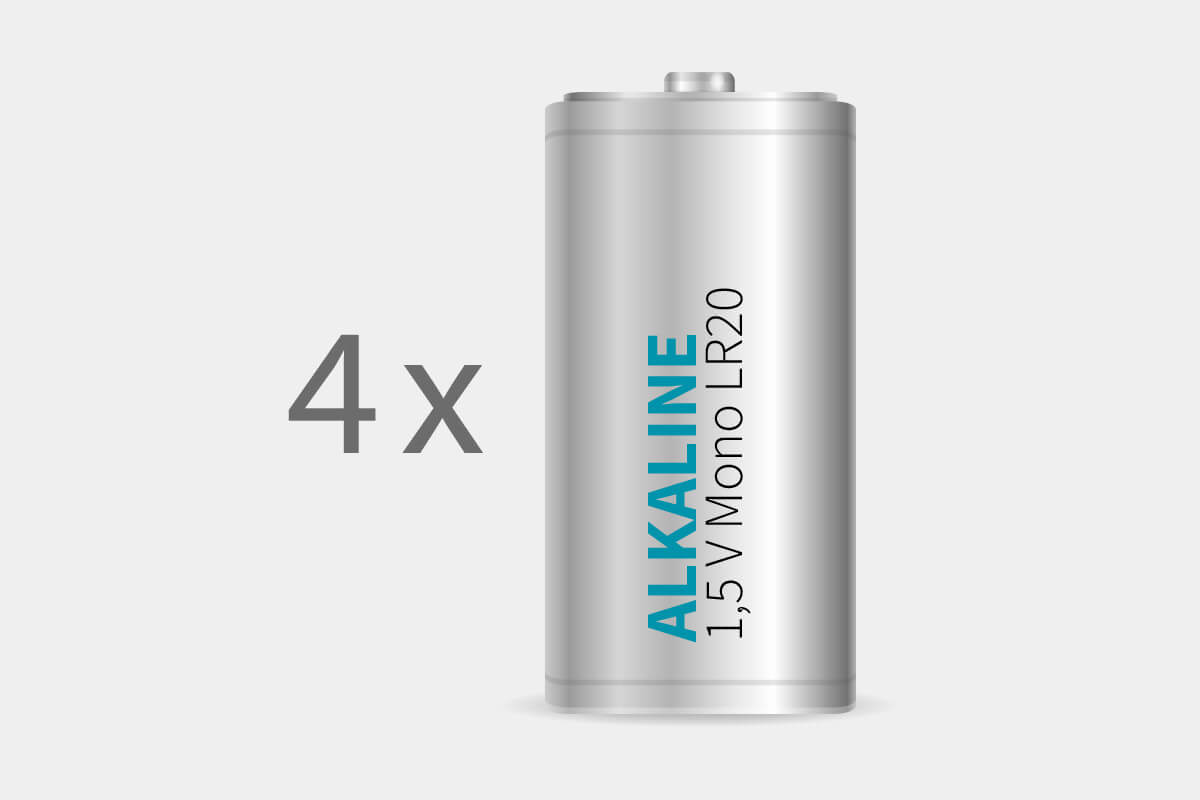

4 x Mono LR20 1.5 V alkaline battery

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
VAP3 lithium polymer rechargeable battery: About 8.5 h*
Alkaline batteries: About 6.5 h

*Ambient temperature of about 20 °C, LR20: Varta Industrial, VAP3.

Subject to changes that serve technical progress.

DOWNLOADS

VMR3 “Minehound” – Dual-Sensor Detector (913.7 KB)

SCOPE OF DELIVERY

Basic package VMR3 | Item No. 2002830010
Dual-Sensor Detector VMR3, Case, Headset, 2 x Rechargeable battery block VAP3, Charger VAP3, Power adapter for battery charger VAP3, Battery charger VAP3 for 12 V/24V vehicle plug socket , Shoulder straps with pads, Arm strap, Test piece GPR-Flush, Test piece GPR-Deep, Test piece Minehound-Flush, Test piece MD, Universal power plug adapter, Battery compartment VBH3, 4 x Alkaline battery 1.5 V Mono LR20, Operation manual, Field manual.

PARTS / ACCESSORIES

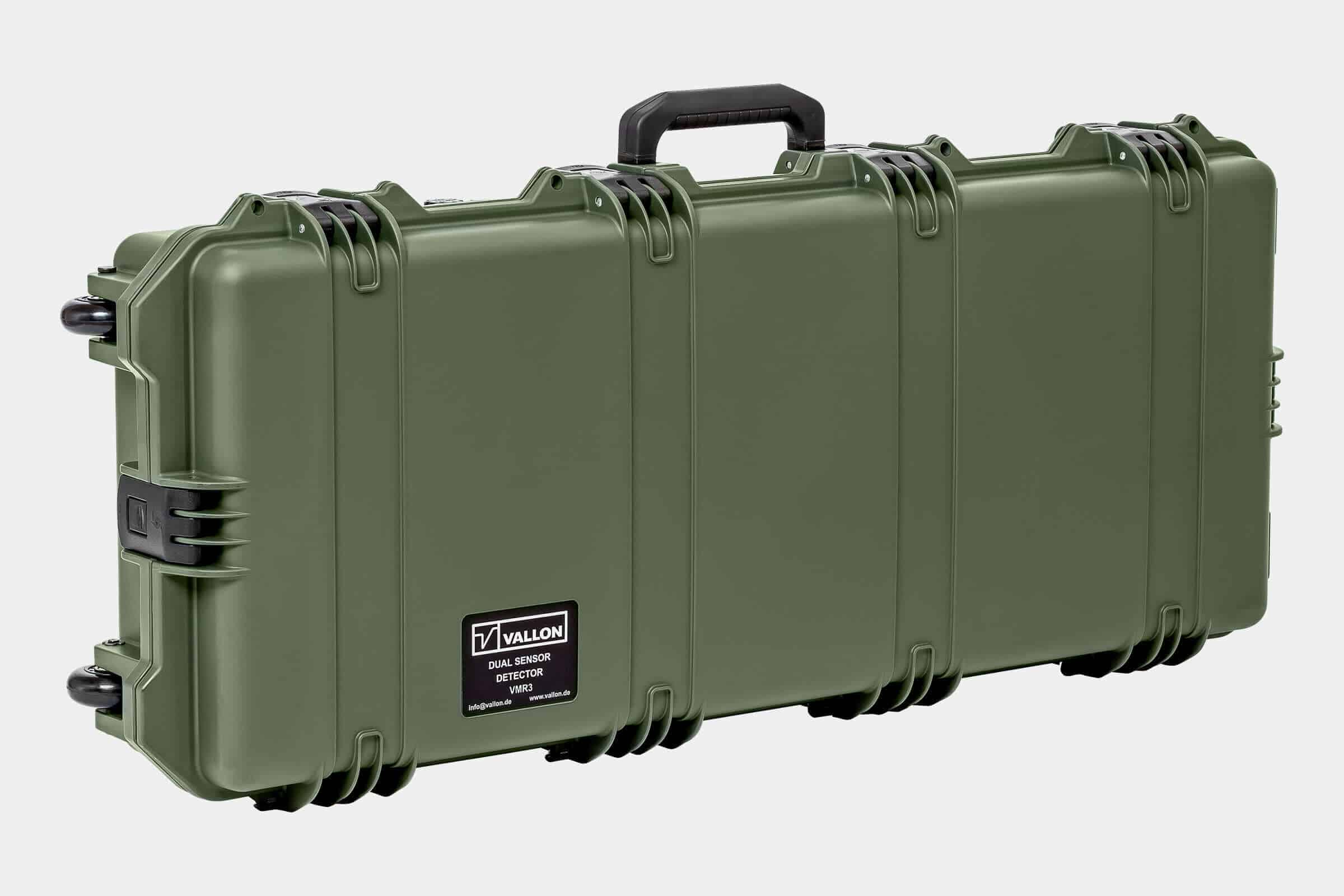

Item No. 2902830064
Case VMR3
Rugged case for storage and safe transport of the detector

Item No. 2902440095
Test piece “GPR-Flush”
For testing the sensitivity of the GPR capabiltities

Item No. 2902440094
Test piece “GPR-Deep”
For testing the sensitivity of the GPR capabiltities

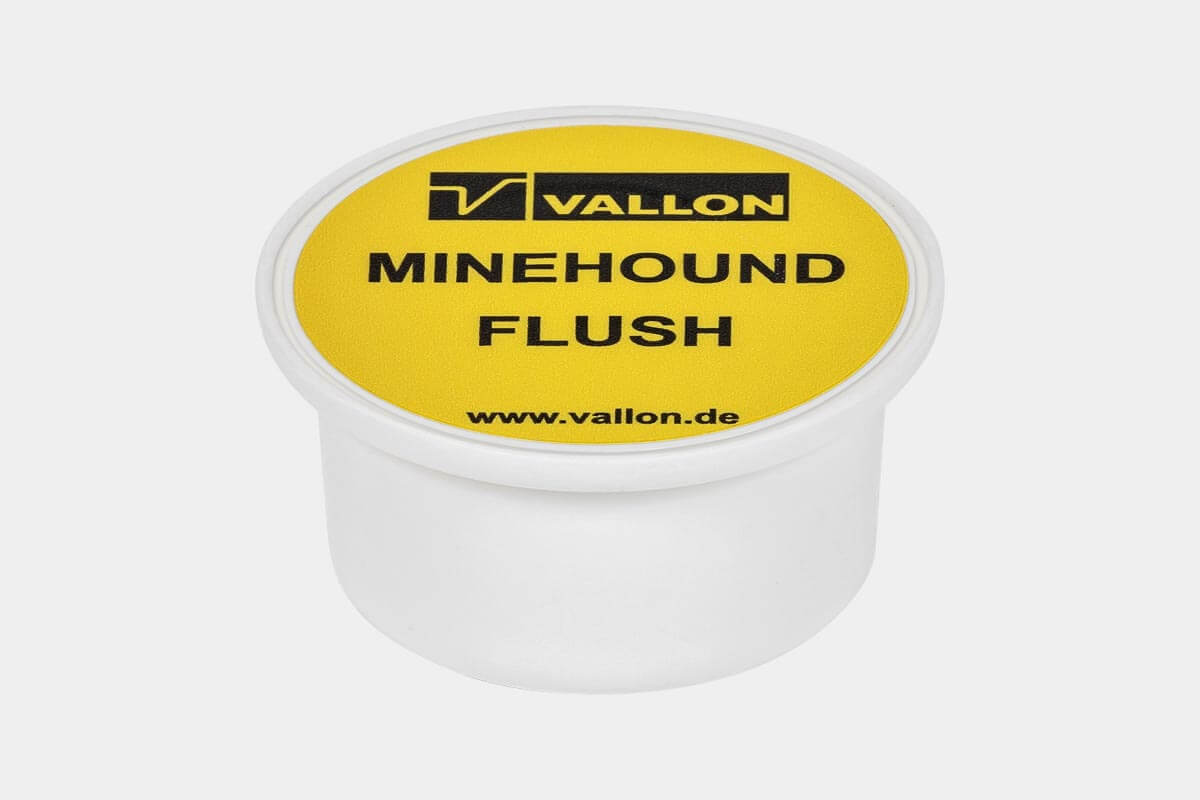

Item No. 2902440075
Test piece “Minehound-Flush”
For testing the sensitivity of the metal detection and GPR capabiltities

Item No. 2909990733
Test piece with adjustment plate for brake screw
Test piece for a functional check of the metal detector with an adjustment plate attached

Item No. 2902440026
Headphone VMR3/VMR3G/VR1
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

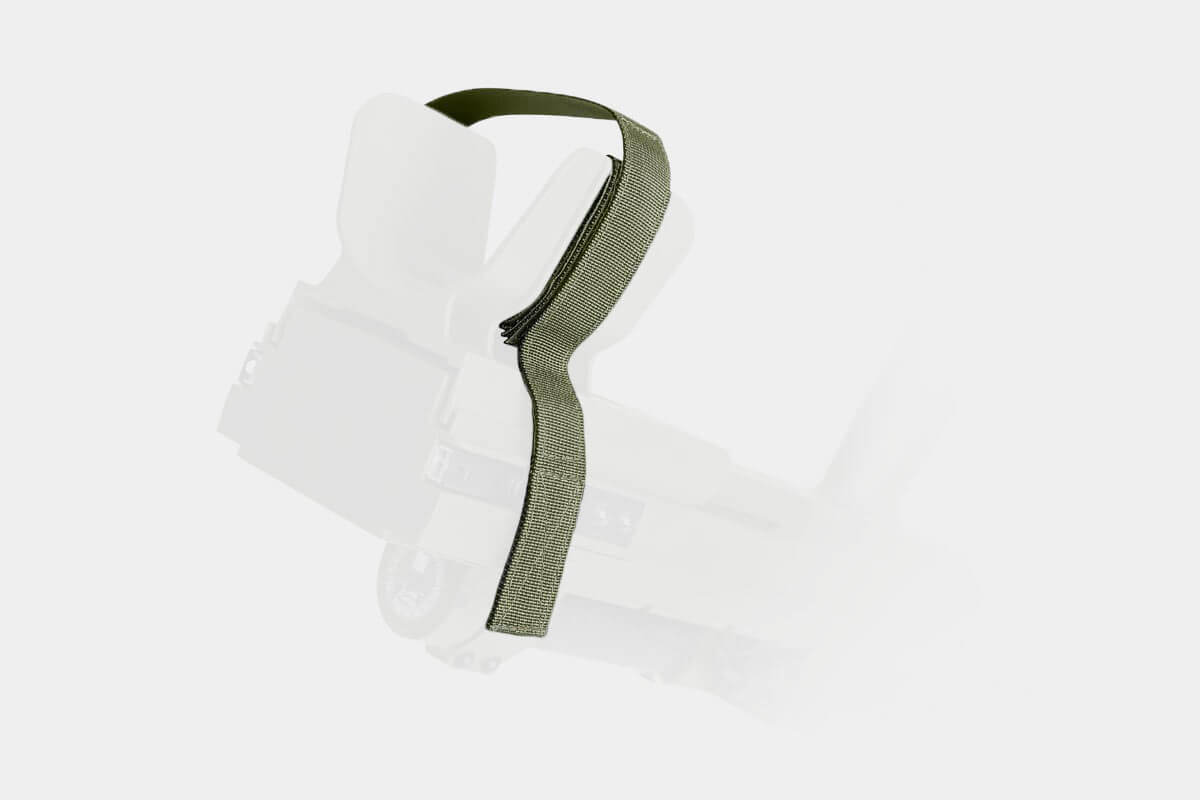

Item No. 8909990832
Arm strap
Arm strap for an improved hold of the dectector in operation

Item No. 2902440123
Shoulder straps with pads VMR2/VMR3/VR1
Comfortable shoulder straps for the safe carrying of the detector

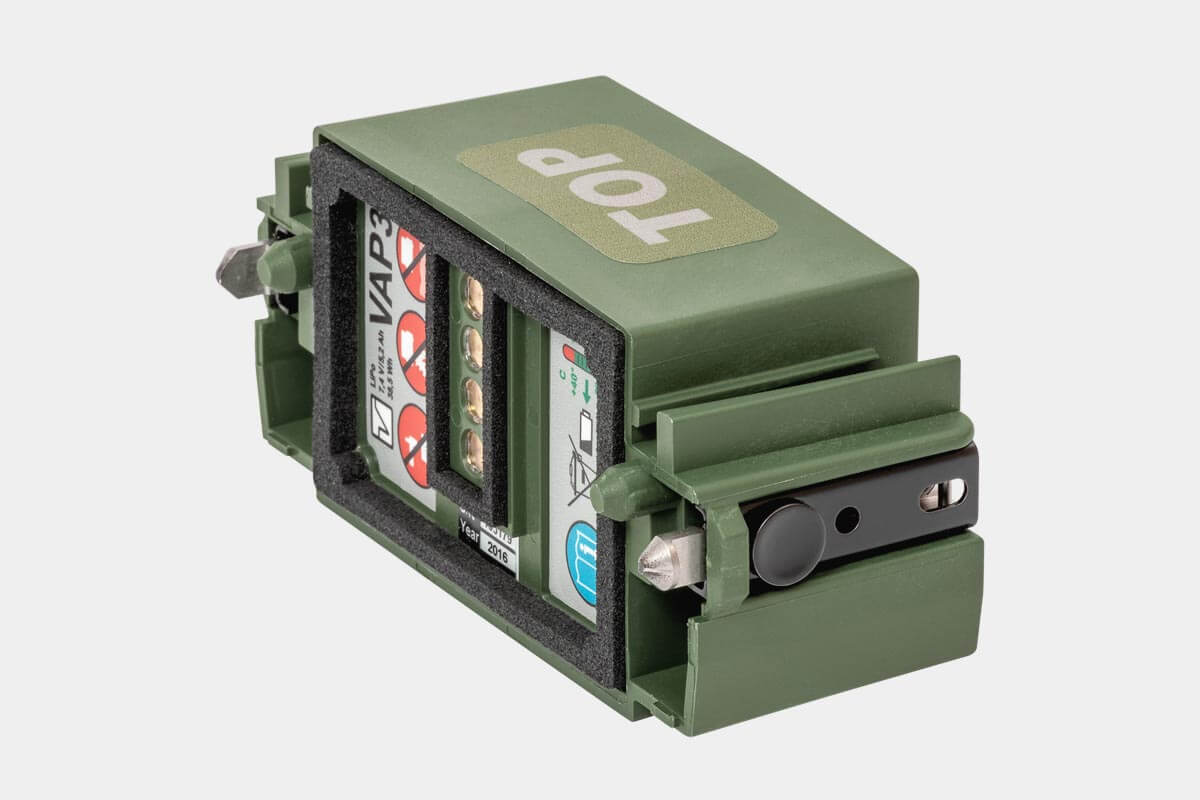

Item No. 2902830035
Rechargable battery block VAP3
Rechargeable Li-Po battery block

Item No. 2902830080
Battery compartment VBH3
Battery compartment allows the operation of the detector with batteries LR20 or alternatively with rechargeable batteries HR 20
