COMPACT UNDERWATER METAL DETECTOR VMW1

COMPACT UNDERWATER METAL DETECTOR VMW1

SKU: 2002520010

Metal Detector for Underwater Use down to 30 m

Detection in water and on land
Depth down to 30 m
Extremely compact design and low weight
High sensitivity
Highly efficient soil compensation

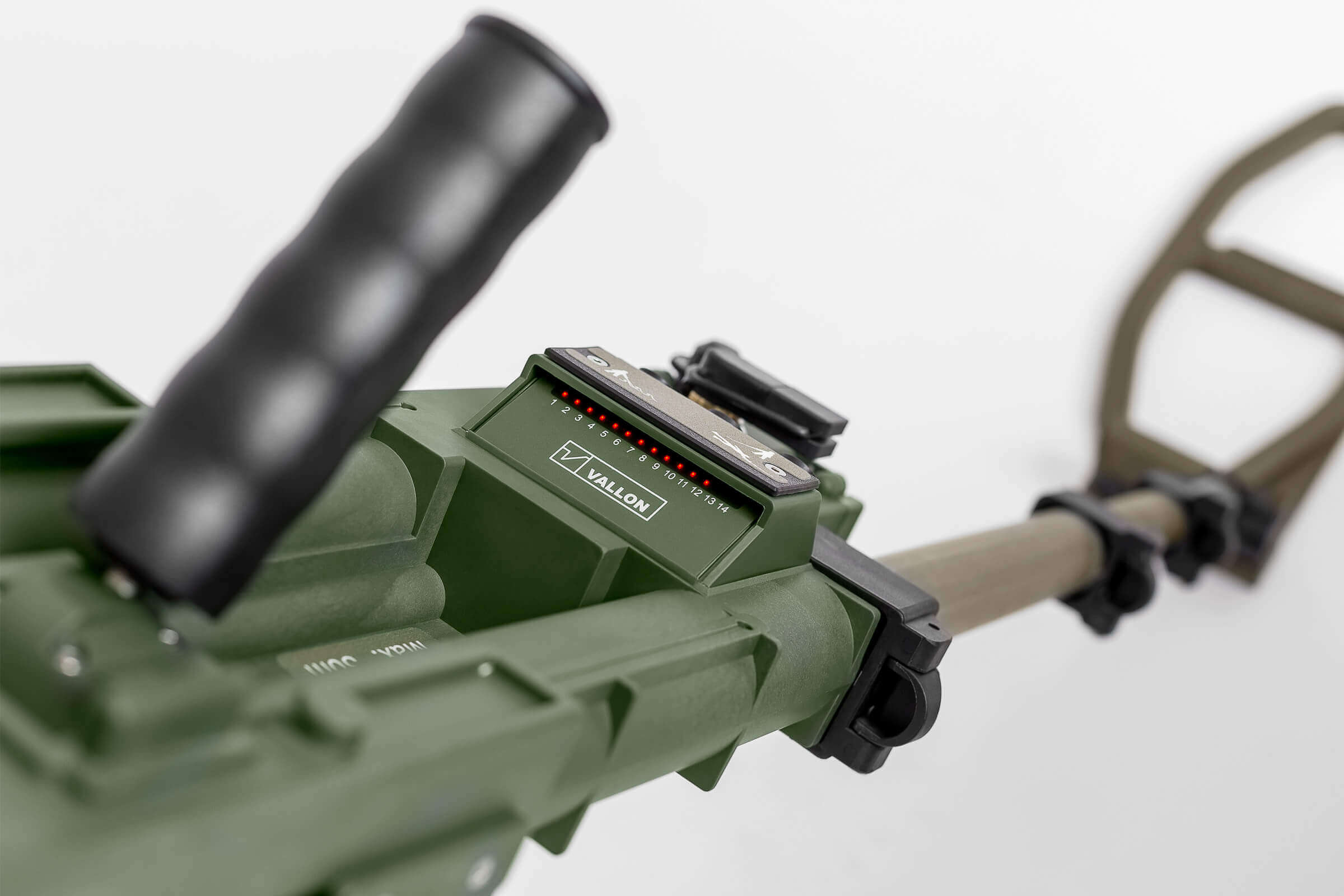

Easily noticeable alarm indication (audio/visual)

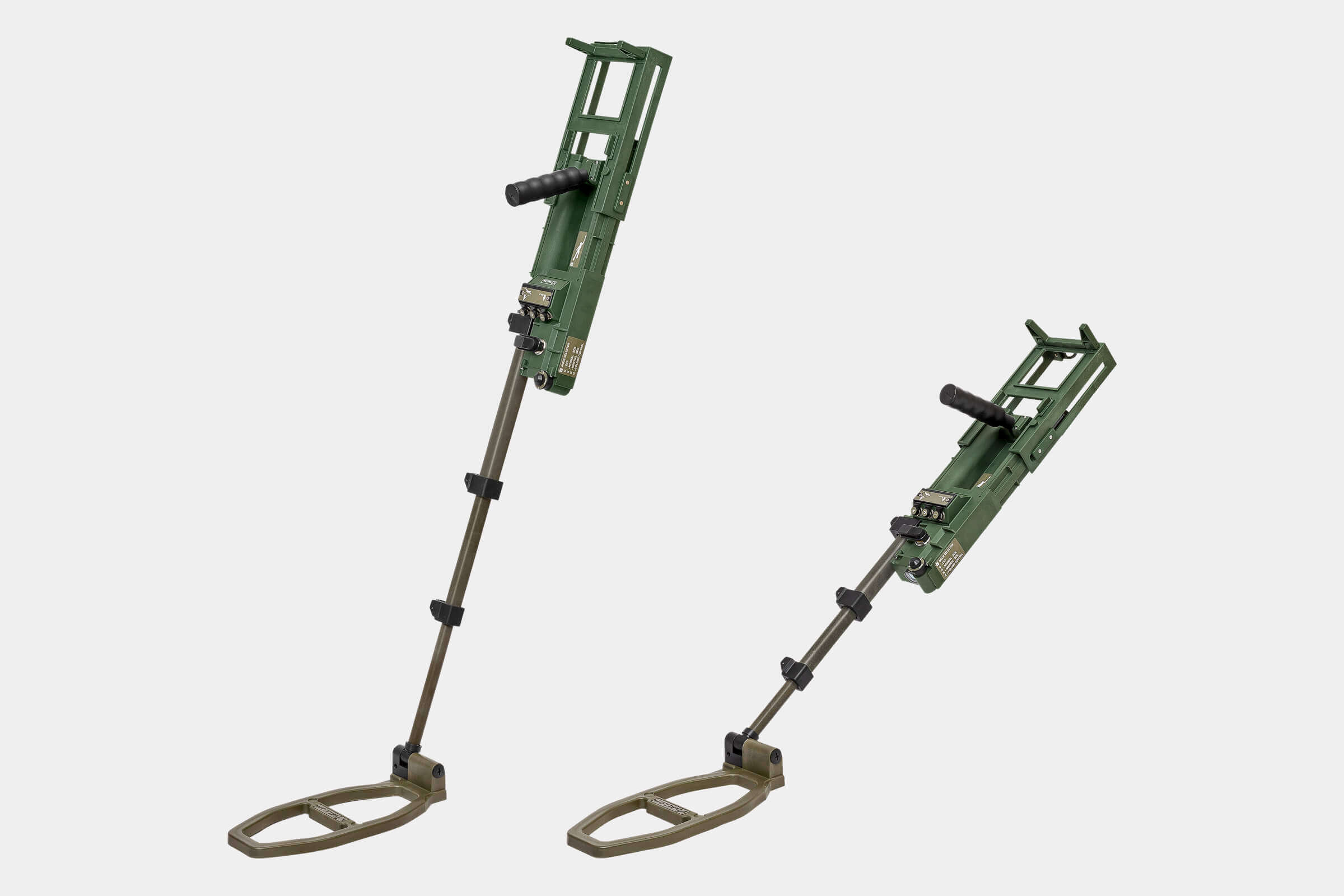

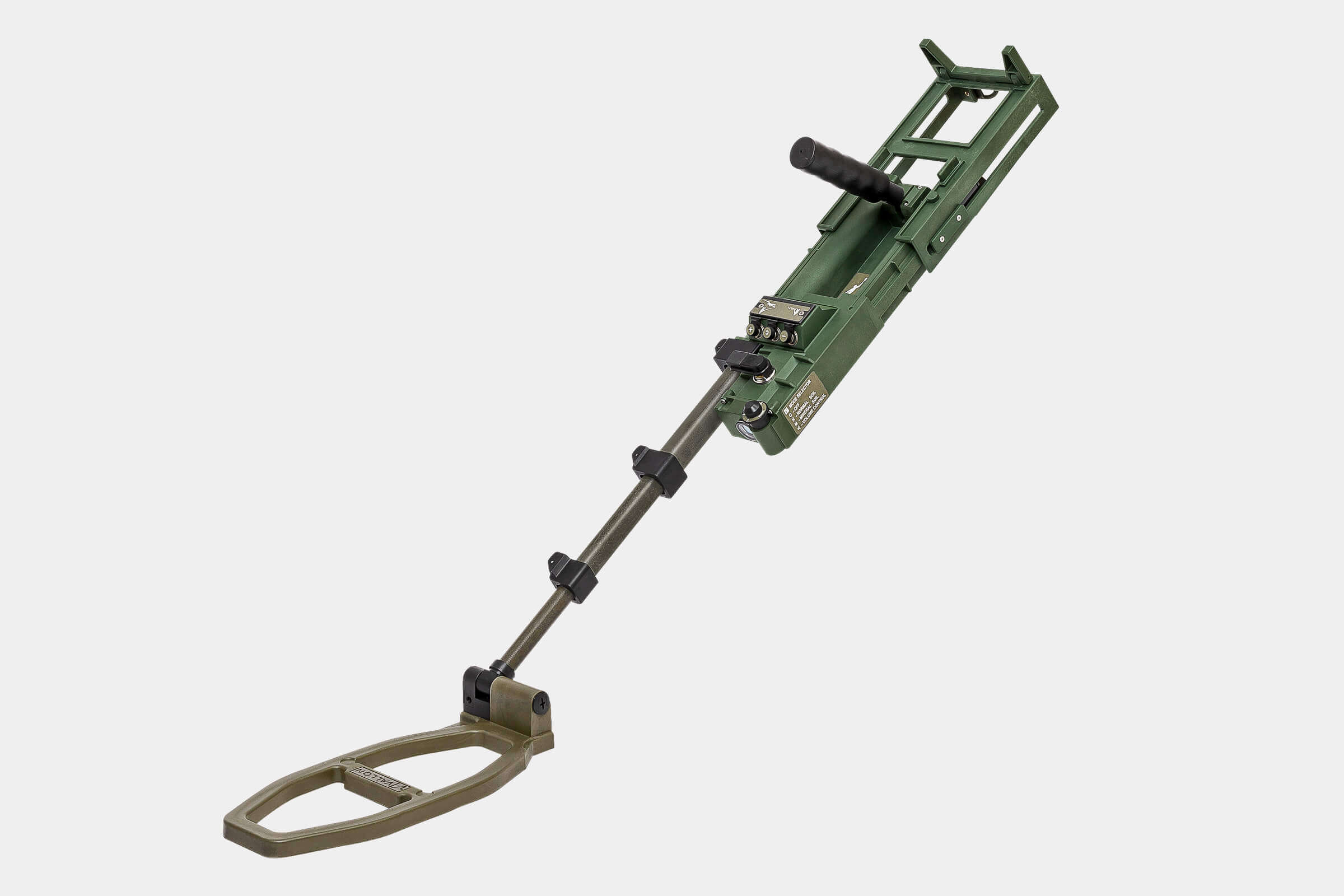

The VMW1 is a foldable metal detector for use in water and on land.

All components are designed to work together underwater, guaranteeing detection reliability for search tasks down to depths of 30 m.

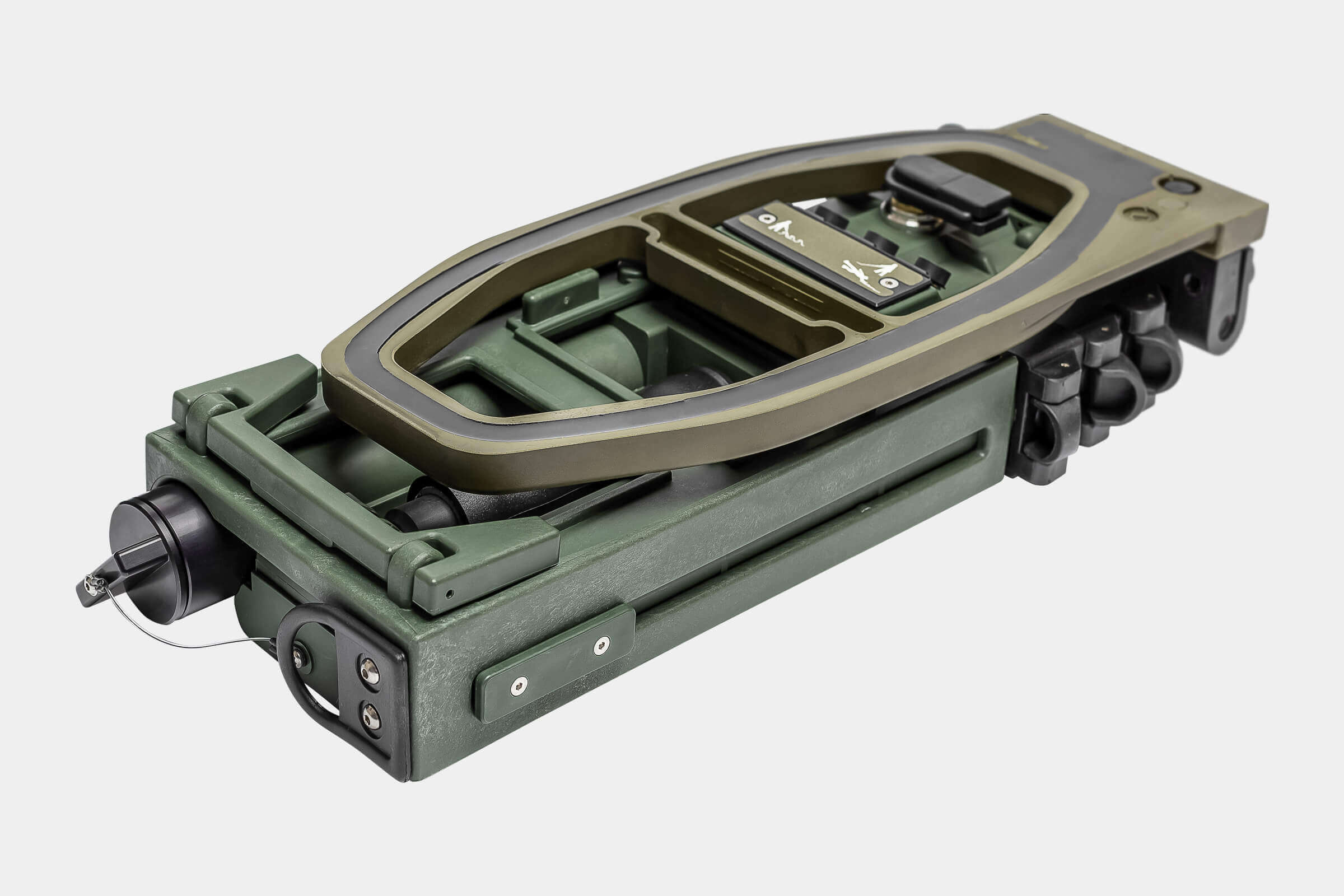

The extremely compact size and low weight of the VMW1 simplify transport substantially. It folds out completely and is ready for use in just a few steps.

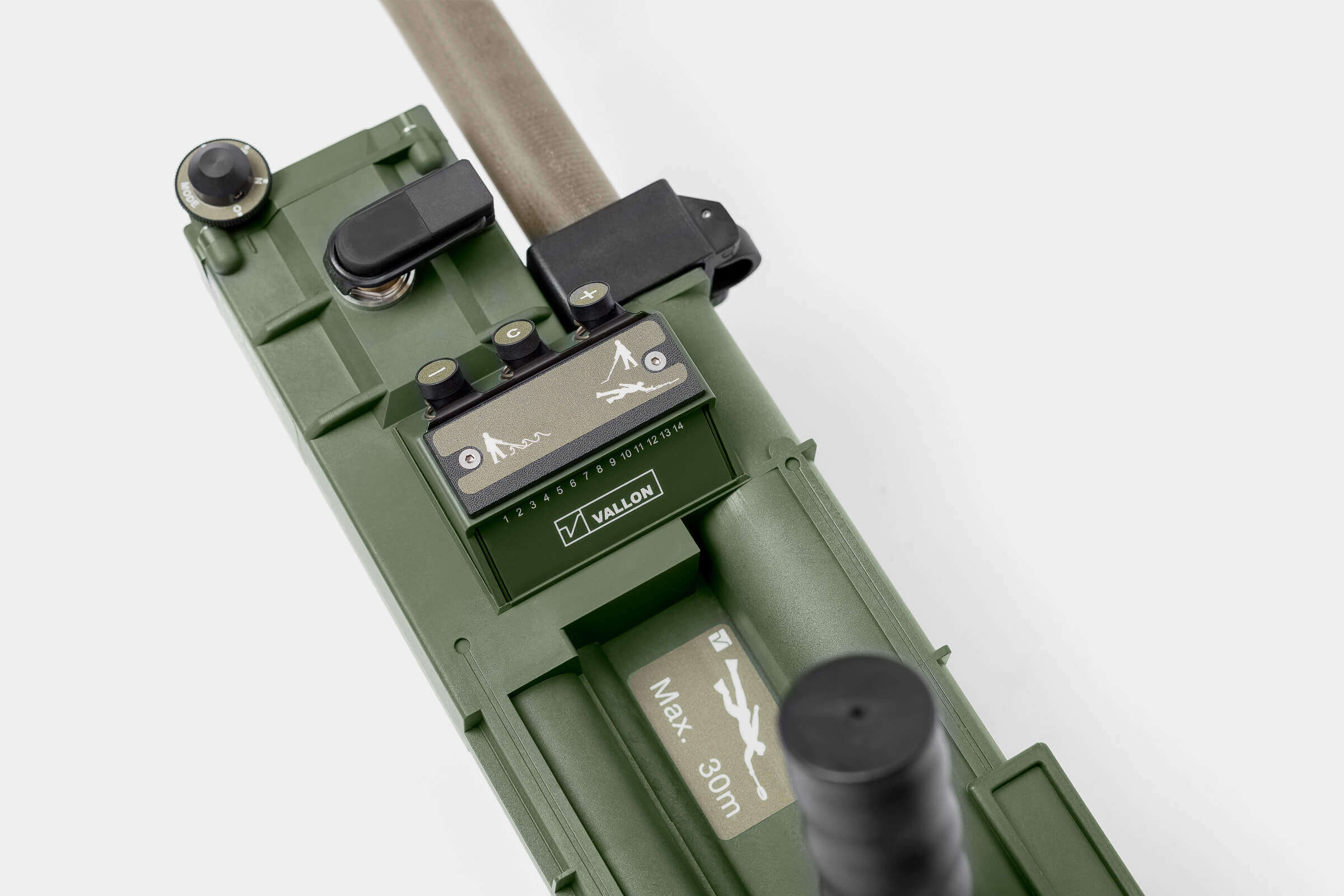

Its intuitive operating elements also ensure excellent ease of use. This makes it a reliable tool for mine detection.

Suitable for following searches…

Mines: Suited for mine detection. Thanks to maximum sensitivity, also responds to mines with low metal content.
Underwater: Optimally suited for diving operations in water down to 30 m of depth. Including in salt water.

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
Active search coils
32.9 x 13.9 cm (12.95 x 5.47 in)

ALARM SIGNAL
Visual (LED) / Audio

WATERTIGHT
IP68, 30 m

DIMENSIONS*
Folded detector
39.8 x 15 x 7 cm (15.66 x 5.9 x 2.75 in)

Case
41 x 32 x 17 cm (16.14 x 12.59 x 6.69 in)

*Tolerance ± 3 %

AMBIENT CONDITIONS
In accordance with MIL-STD-810F
(F501.4-I, II, F502.4-I, II, F503.4-I, F506.4-III, F512.4-II, F516.5-IV)

AMBIENT TEMPERATURE
-31°C – + 63°C (-24°F – +145°F)

STORAGE TEMPERATURE
-51°C – +71°C (-60°F – +160°F)

WEIGHT*
Detector with/without standard battery
2,7 kg (5,95 lbs) / 2,5 kg (5,51 lbs)

Detector with standard battery in water
0,9 kg (1,98 lbs)

Basic package – Detector in case including standard scope of delivery
5,4 kg (11,90 lbs)

*Tolerance ± 10 %

DISPOSABLE/ RECHARGEABLE BATTERY
3 x Baby LR14 1.5 V alkaline battery – Standard
3 x Baby HR14 1.2 V NiMH rechargeable battery

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
Alkaline batteries: About 9 h
NiMH rechargeable batteries (6,000 mAh): About 10 h

*Ambient temperature of about 20 °C, LR14: Varta Industrial, HR14: NiMH rechargeable batteries.

Subject to changes that serve technical progress.

DOWNLOADS

VMW1 – Compact Metal Detector (817.2 KB)

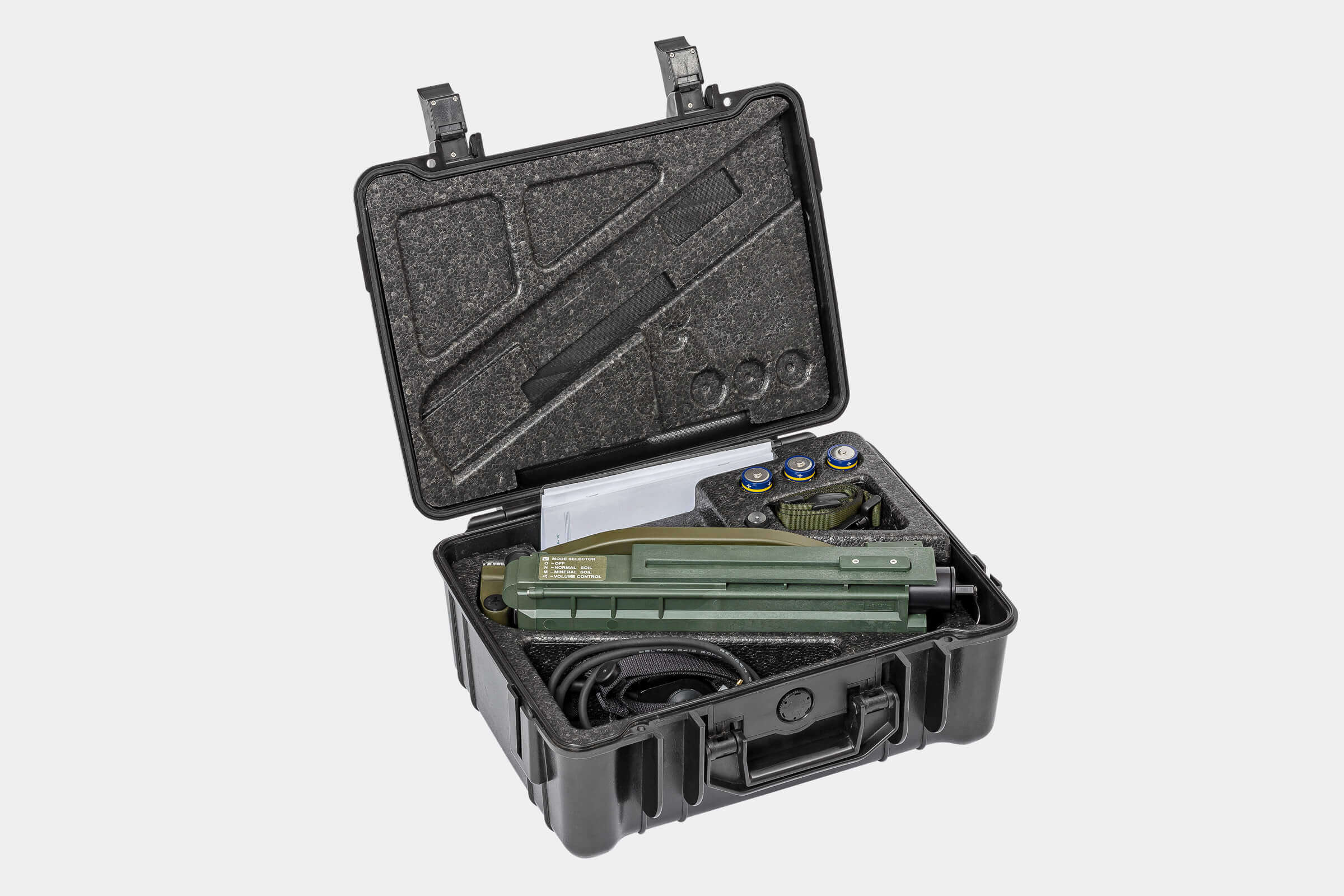

Basic package VMW1 | Item No. 2002520010
Metal Detector VMW1, Hard case, Headset, Carrying strap, Arm strap, Test piece, Dummy connector headset, 3 x Alkaline battery 1.5 V Baby LR14, Operation manual, Field manual

PARTS / ACCESSORIES

Item No. 8902310030
Carrying bag VMC1/VMW1
For storage and transport of the detector

Item No. 2802310010

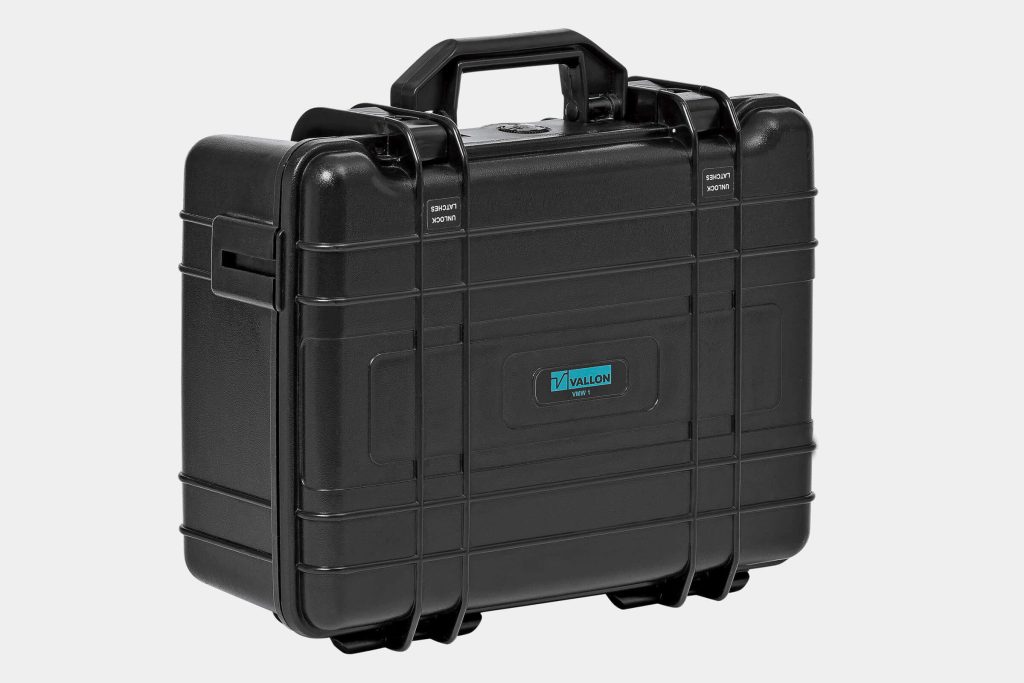

Case VMC1
Rugged case for storage and safe transport of the detector

Item No. 2909990571
Headset VMC1/VMH3CS/VMXC1-1
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

Item No. 2909990751
Headset adapter 6 Pole, 3rd generation
Enables the connection of a standard headset with a 3.5 mm jack socket to the detector

Item No. 8702310101
Strap for arm rest VMC1/VMW1
Strap for arm rest for an improved detector hold in operation

Item No. 2909990847
External battery charger 100-240V/50-60Hz, 12V
Compact external battery charger for charging NiMH-reachargeable batteries

Item No. 5910001002
Alkaline battery 1.5 V baby LR14
Standard battery (not rechargeable)

Item No. 5910001002S3
Alkaline battery 1.5 V baby LR14, 3 ea.
Standard battery (not rechargeable)

Item No. 5920001018
Rechargable battery NiMH 1,2 V baby HR14/6.000 mAh
Rechargeable batteries for long operations

Item No. 5920001006S3
Rechargeable battery NiMH 1,2 V Mono HR20/10.000 mAh, 3 ea.
Rechargeable batteries for long operations

Item No. 2902310044
Test piece with adjustment plate for brake screw
Test piece for a functional check of the metal detector with an adjustment plate attached
