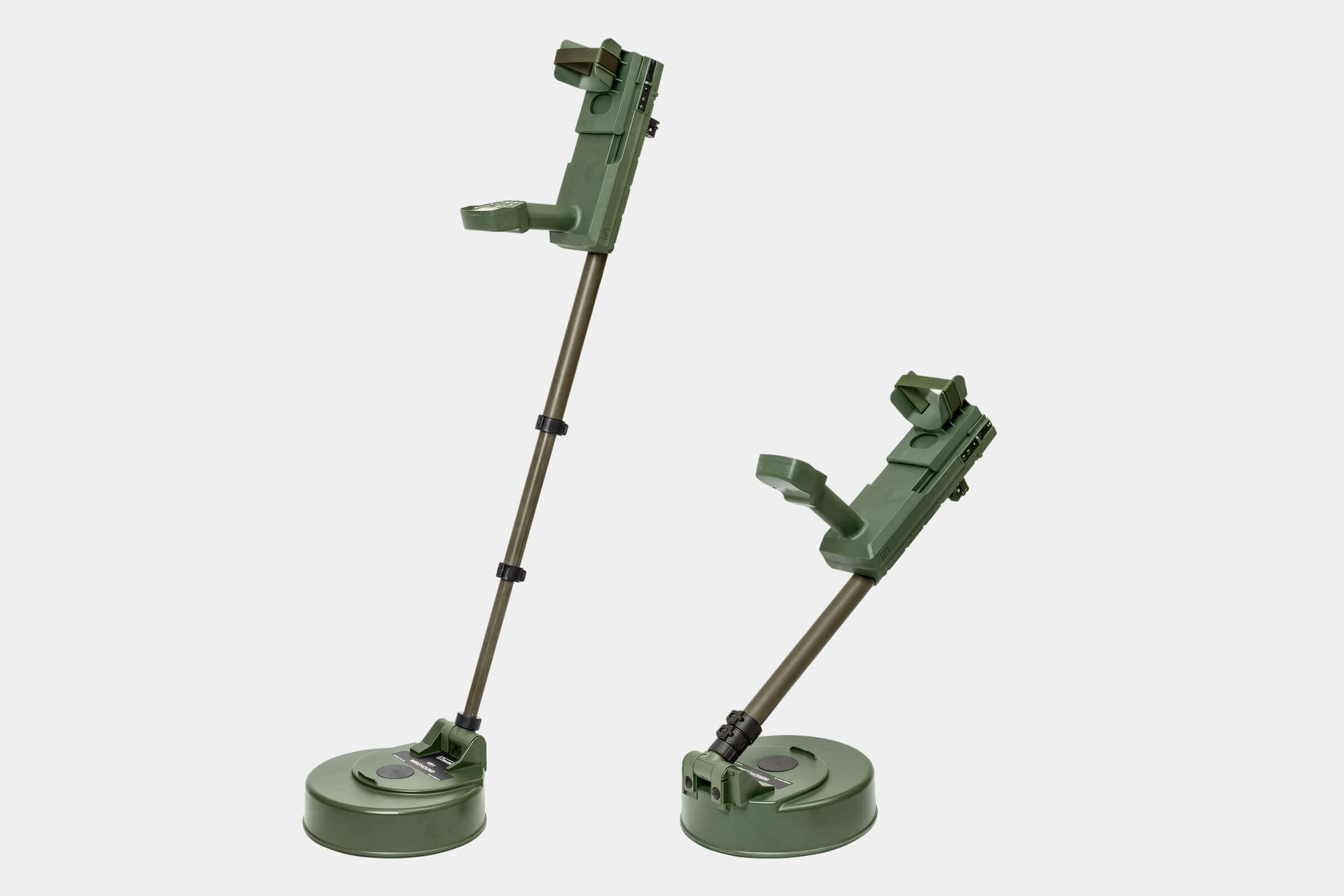

CABLE/WIRE DETECTOR VR1 “WIREHOUND®”

CABLE/WIRE DETECTOR VR1 “WIREHOUND^®”

SKU: 2004130000

Detector for Cables and Wires

Search head with ground-penetrating radar (GPR)
Detection of cables and wires regardless of their orientation
High sensitivity to detect wires with a length of 10 cm or more

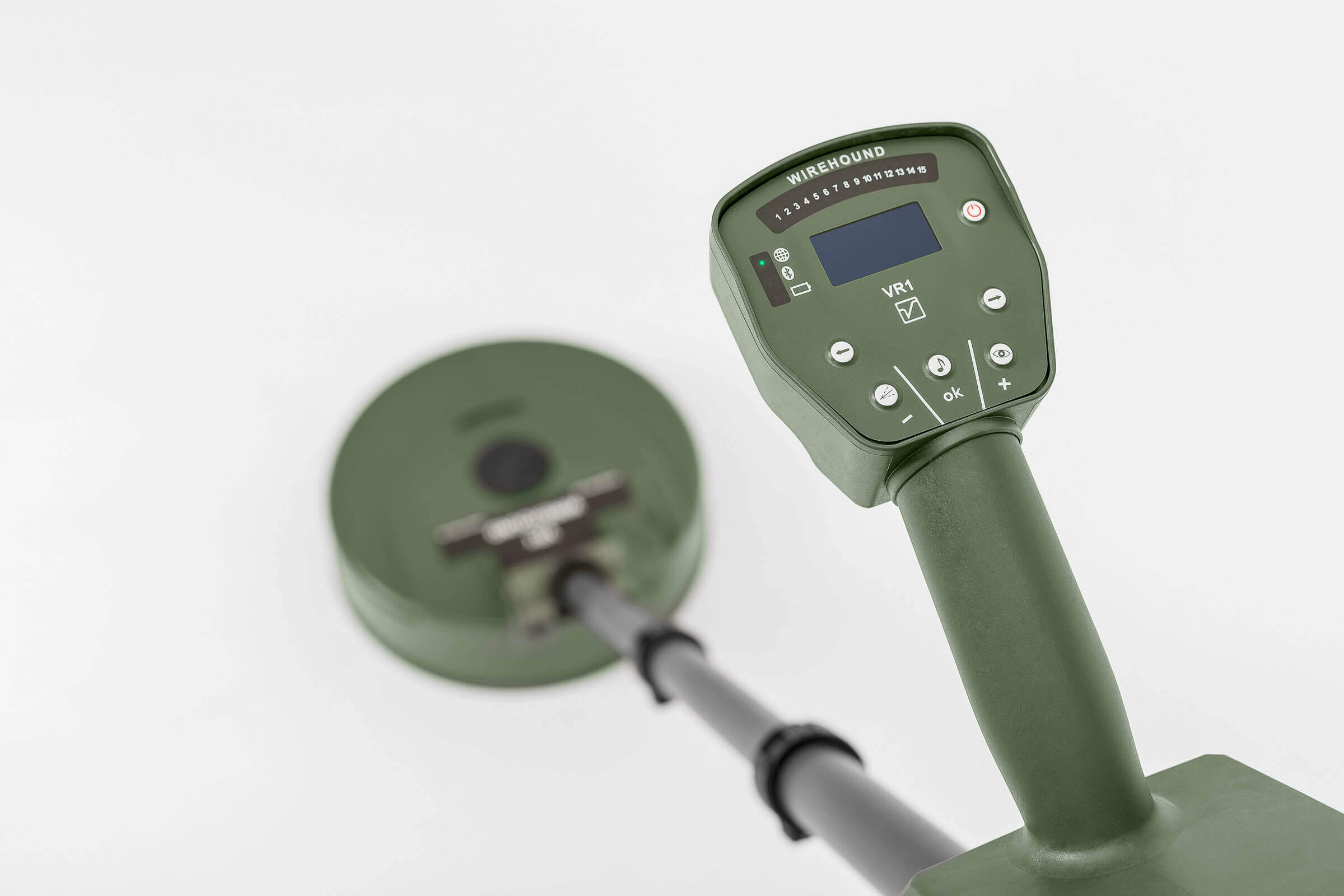

Integrated OLED display for simplified operation
Selection of various languages
Easily noticeable alarm indication (audio/visual/vibration)

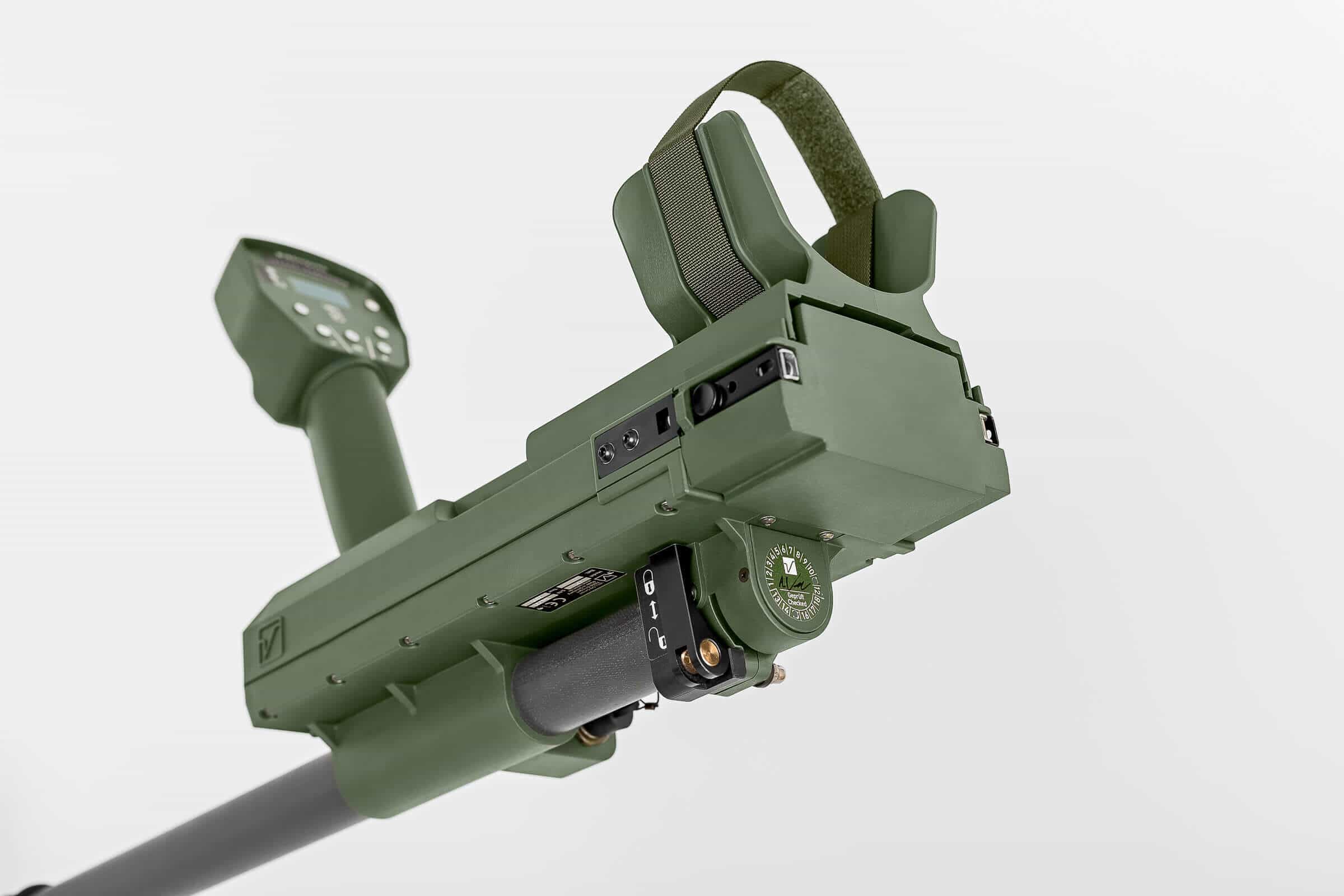

The Cable Detector VR1 “Wirehound^®” uses ground-penetrating radar and has been developed specifically for finding explosive devices and their components.

These include the wires and cables typically used to activate IEDs.

Possible applications of this high-sensitivity ground-penetrating radar (GPR) also include locating classic GPR targets such as bodies out of plastic, wood and metal.

The VR1’s ergonomic mechanical design enables assignments lasting several hours.

Suitable for following searches…

IED*: Suitable for detecting the typical components of improvised explosive devices (e. g. wires and cables).

* Partially restricted

ADDITIONAL DETAILS

TECHNICAL DATA

SENSOR
GPR search head
Ø 30 cm (Ø 11.81 in)

ALARM SIGNAL
Visual (LED)/audio/vibration

WATERTIGHT
IP68, 1.5 m (1 h at 20 °C)

DIMENSIONS*
Case
80.5 x 52 x 31 cm (31.69 x 20.47 x 12.20 in)

*Tolerance ± 3 %

AMBIENT CONDITIONS
In accordance with MIL-STD-810F
(F501.4-I, II, F502.4-I, II, F503.4-I, F506.4-III, F512.4-II, F516.5-IV)

AMBIENT TEMPERATURE
-31°C – + 63°C (-24°F – +145°F)

STORAGE TEMPERATURE
-51°C – +71°C (-60°F – +160°F)

WEIGHT*
Detector with/without standard battery
3.7 kg (8.15 lbs) / 3.24 kg (7.14 lbs)

Basic package – Detector in case including standard scope of delivery
18.00 kg (39.68 lbs)

*Tolerance ± 10 %

DISPOSABLE/ RECHARGEABLE BATTERY
1 x VAP3 7.4 V/5.4 Ah lithium polymer rechargeable battery – Standard
4 x Mono LR20 1.5 V alkaline battery

DISPOSABLE/ RECHARGEABLE BATTERY OPERATING TIME*
VAP3 lithium polymer rechargeable battery: About 10 h
Alkaline batteries: About 4 h

*Ambient temperature of about 20 °C, LR20: Varta Industrial, VAP3.

Subject to changes that serve technical progress.

DOWNLOADS

VR1 “Wirehound^®” – Cable Detector (874.1 KB)

SCOPE OF DELIVERY

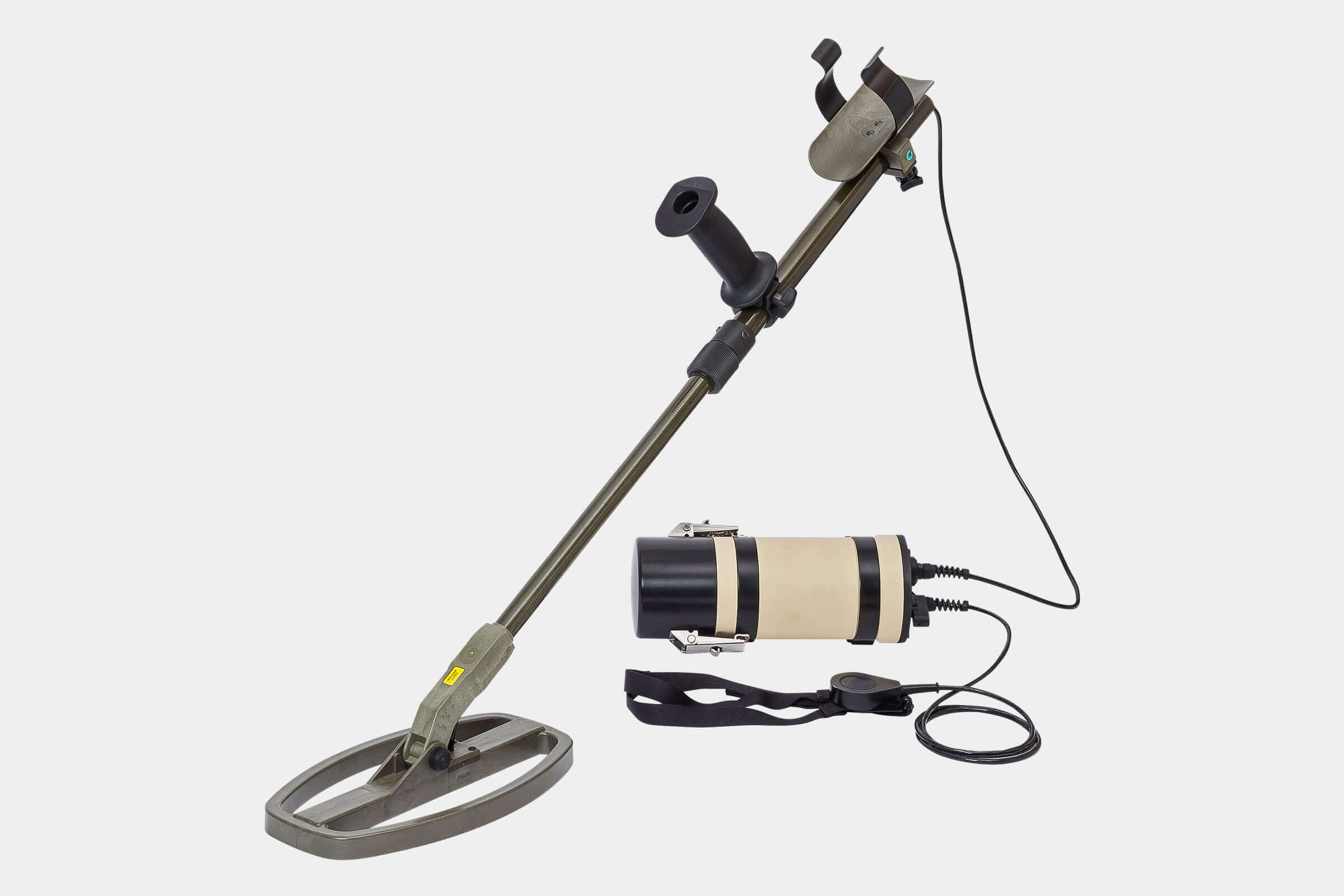

Basic package VMC1 | Item No. 2002310500
Metal Detector VMC1, Backpack, Test piece, 3 x Alkaline battery 1.5 V Baby LR14, Operation manual, field manual, Backpack packing sketch

PARTS / ACCESSORIES

Item No. 8902310030

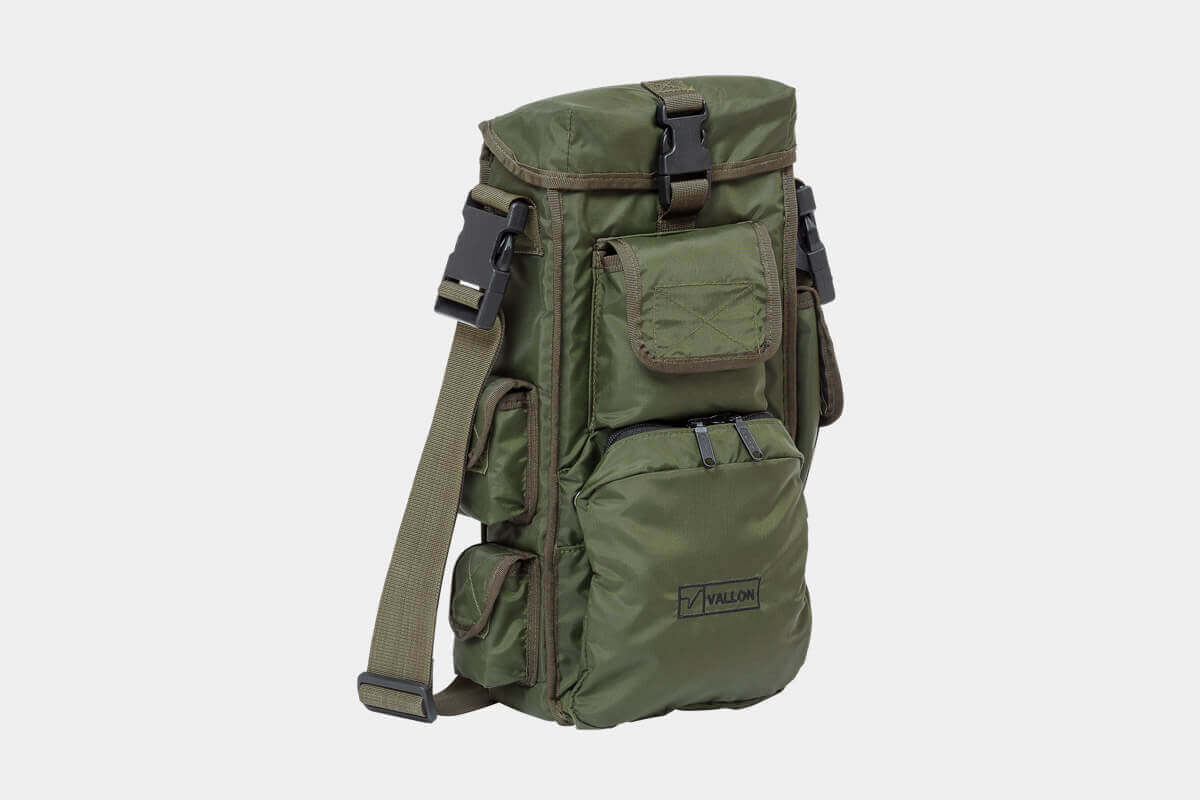

Carrying bag VMC1/VMW1
For storage and transport of the detector

Item No. 2802310010
Case VMC1
Rugged case for storage and safe transport of the detector

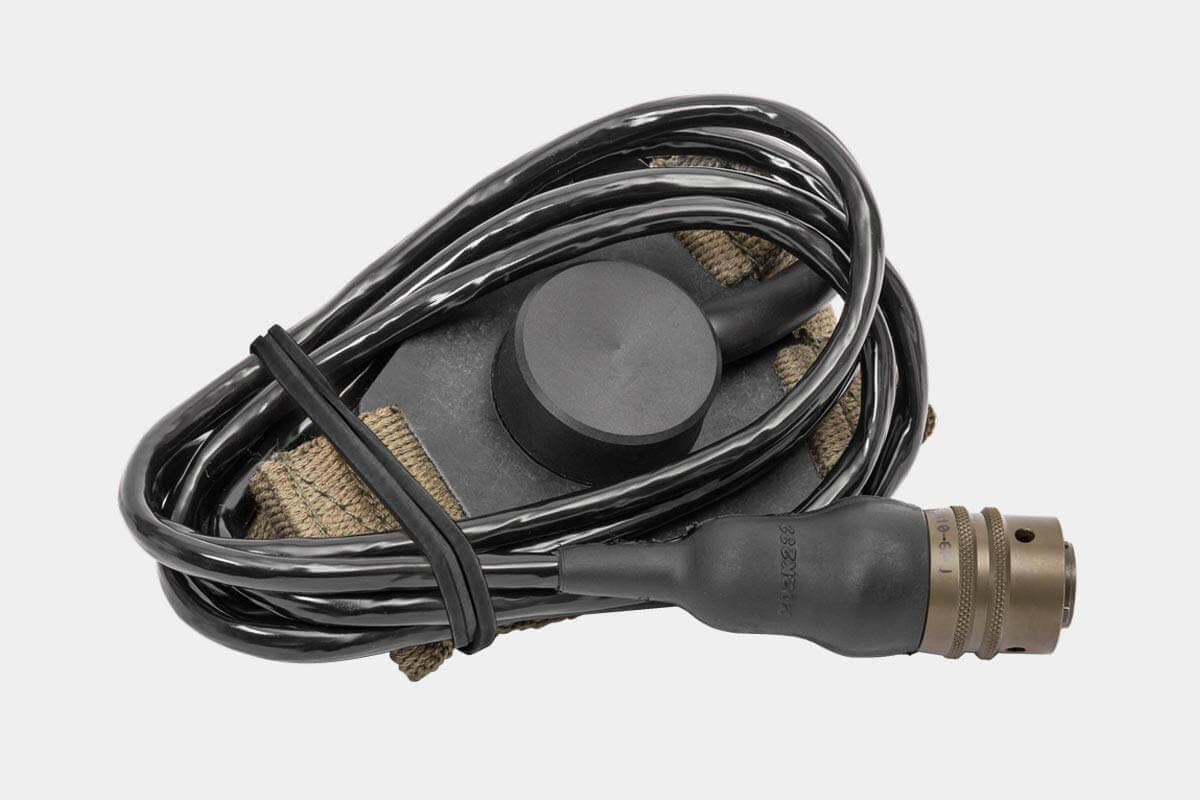

Item No. 2909990571
Headset VMC1/VMH3CS/VMXC1-1
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

Item No. 2909990751

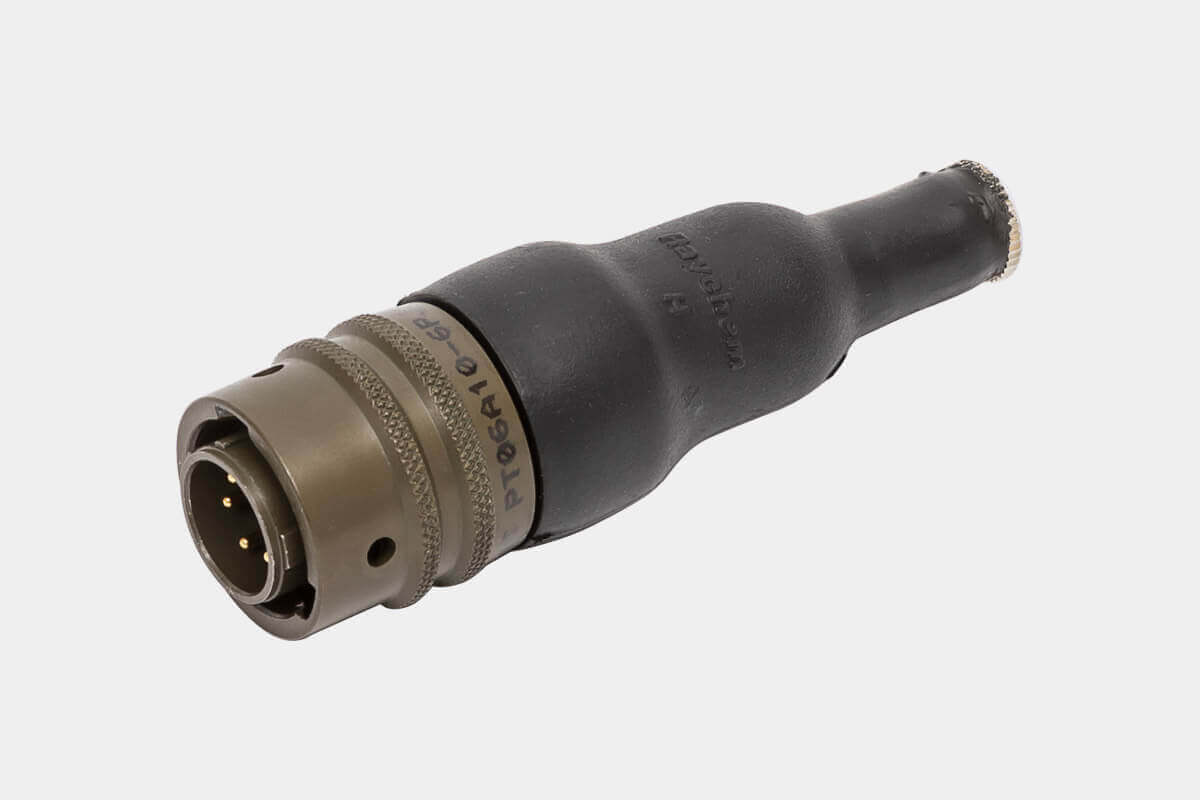

Headset adapter 6 Pole, 3rd generation
Enables the connection of a standard headset with a 3.5 mm jack socket to the detector

Item No. 8702310101
Strap for arm rest VMC1/VMW1
Strap for arm rest for an improved detector hold in operation

Item No. 2909990847

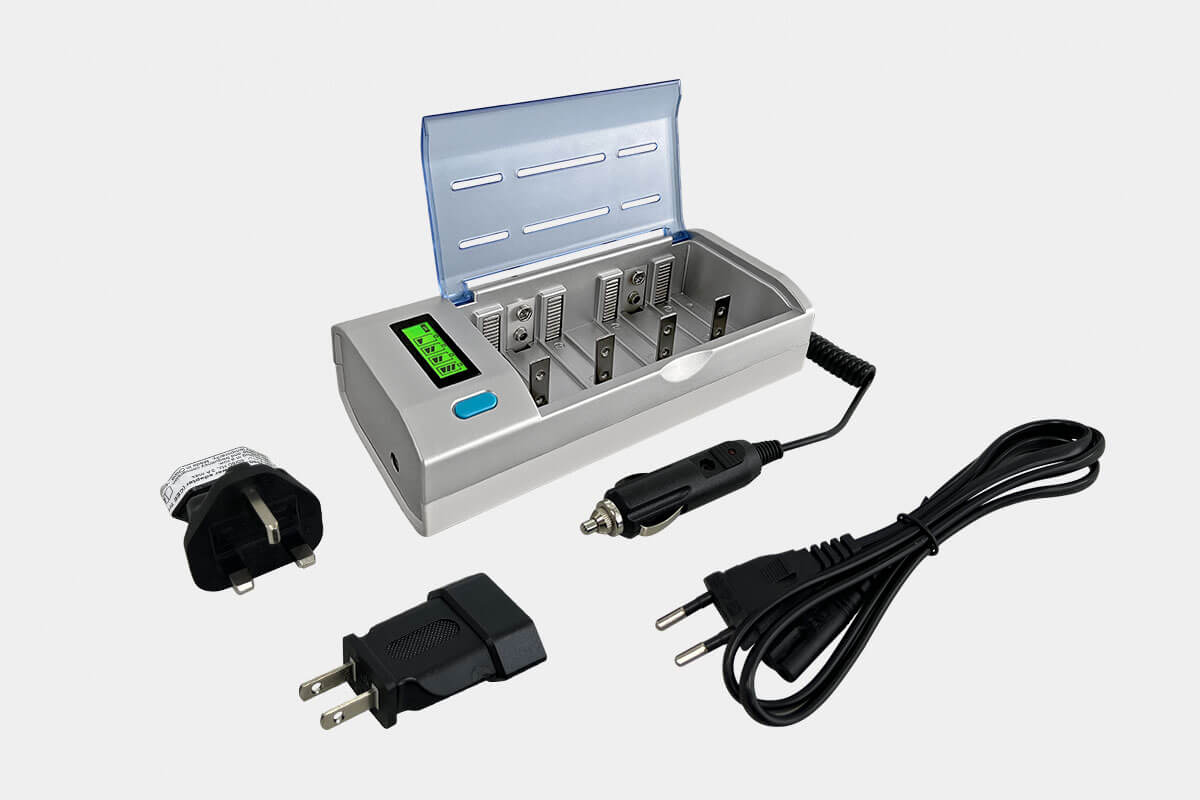

External battery charger 100-240V/50-60Hz, 12V
Compact external battery charger for charging NiMH-reachargeable batteries

Item No. 5910001002
Alkaline battery 1.5 V baby LR14
Standard battery (not rechargeable)

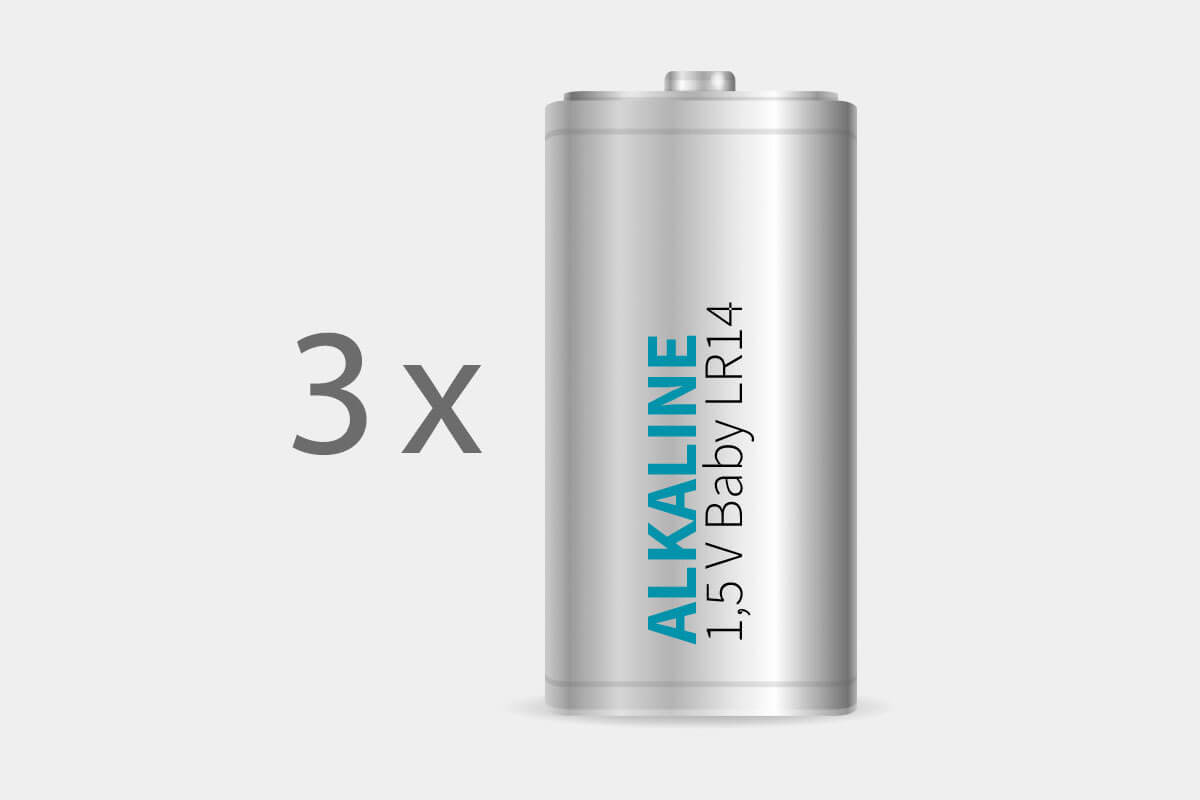

Item No. 5910001002S3
Alkaline battery 1.5 V baby LR14, 3 ea.
Standard battery (not rechargeable)

Item No. 5920001018
Rechargable battery NiMH 1,2 V baby HR14/6.000 mAh
Rechargeable batteries for long operations

Item No. 5920001006S3
Rechargeable battery NiMH 1,2 V Mono HR20/10.000 mAh, 3 ea.
Rechargeable batteries for long operations

Item No. 2902310044
Test piece with adjustment plate for brake screw
Test piece for a functional check of the metal detector with an adjustment plate attached

Item No. 2902310114
Operation manual VMC1
Detailed operation information

Item No. 2902310115
Field manual VMC1
Extremley compact operation information

Item No. 2902310116
Backpack packing sketch VMC1
Illustration of the backpack scope of delivery

Technical Data

Sensor

GPR search head
Ø 30 cm (Ø 11.81 in)

Alarm signal

Visual (LED)/audio/vibration

Watertight

IP68, 1.5 m (1 h at 20 °C)

Dimensions*

Case

80.5 x 52 x 31 cm (31.69 x 20.47 x 12.20 in)

*Tolerance ± 3 %

Ambient conditions

In accordance with MIL-STD-810F
(F501.4-I, II, F502.4-I, II, F503.4-I, F506.4-III, F512.4-II, F516.5-IV)

Ambient temperature

-31°C – + 63°C (-24°F – +145°F)

Storage temperature

-51°C – +71°C (-60°F – +160°F)

Weight*

Detector with/without standard battery
3.7 kg (8.15 lbs) / 3.24 kg (7.14 lbs)

Basic package – Detector in case including standard scope of delivery
18.00 kg (39.68 lbs)

*Tolerance ± 10 %

Disposable/ rechargeable battery

1 x VAP3 7.4 V/5.4 Ah lithium polymer rechargeable battery – Standard
4 x Mono LR20 1.5 V alkaline battery

Disposable/ rechargeable battery operating time*

VAP3 lithium polymer rechargeable battery: About 10 h
Alkaline batteries: About 4 h

*Ambient temperature of about 20 °C, LR20: Varta Industrial, VAP3.

Subject to changes that serve technical progress.

Downloads

VR1 “Wirehound®” – Cable Detector (874.1 KB)

Basic package VR1 | Item No. 2004130000
Cable Detector VR1, Case, Headset, Shoulder traps with pads, Arm strap, Data cable, USB-serial converter cable, 2 x Rechargeable battery block VAP3, Charger VAP3, Power adapter for battery charger VAP3, Battery charger VAP3 for 12 V/24V vehicle plug socket, Universal power plug adapter, Glass fibre plate search head brake, Test piece, Battery compartment VBH3, 4 x Alkaline battery 1.5 V Mono LR20, Operation manual, Field manual

Parts / Accessories

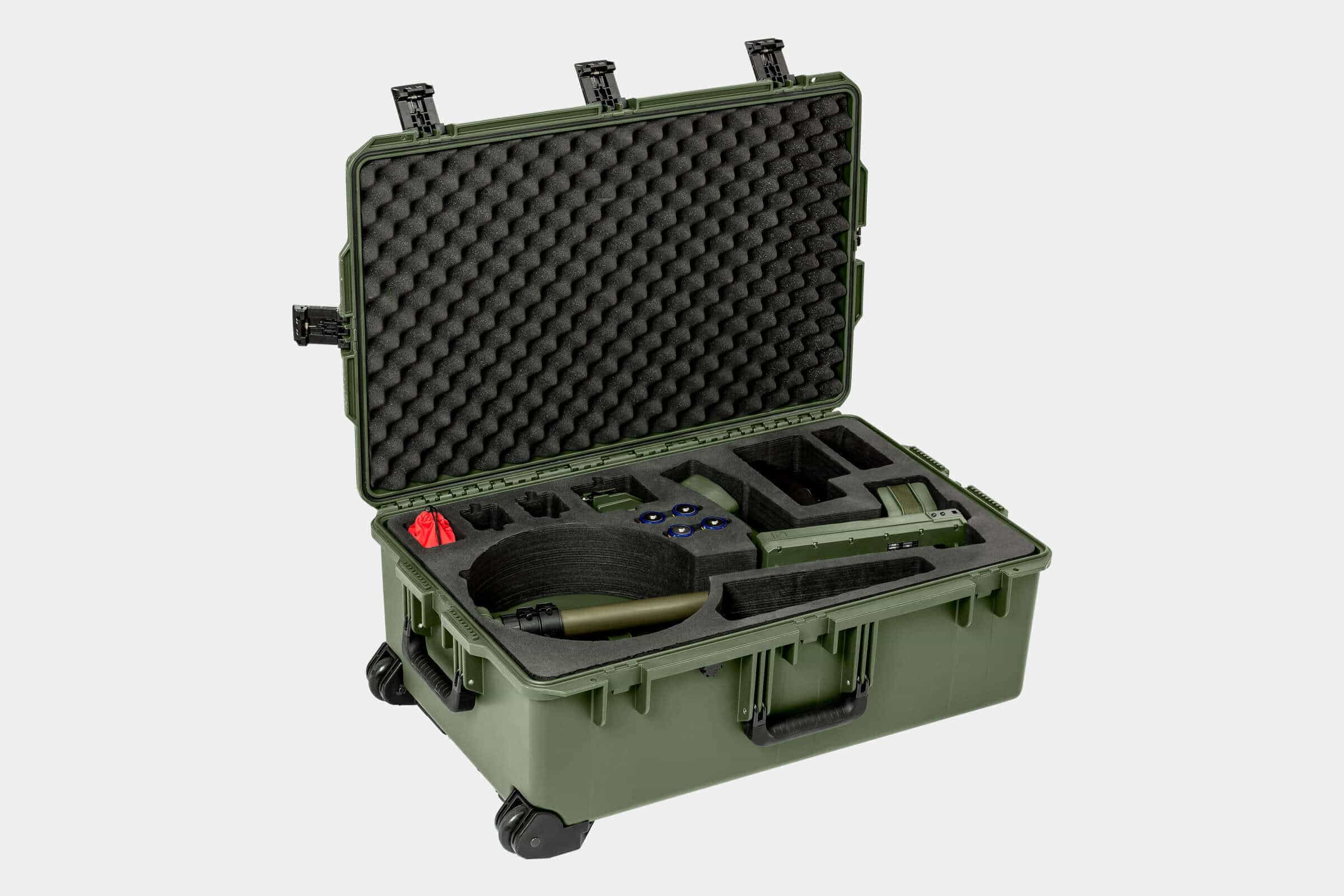

Item No. 2904130180

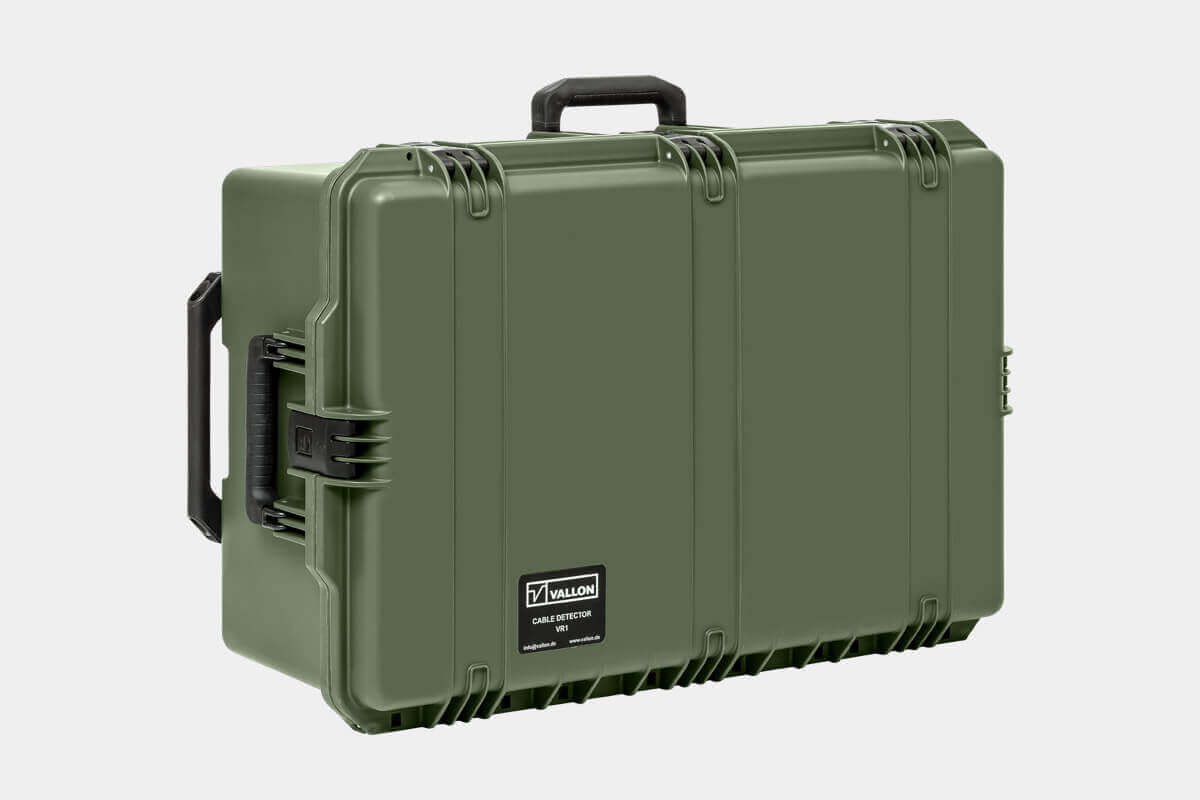

Case VR1
Rugged case for storage and safe transport of the detector

Item No. 2904130200
Test piece VR1
For testing the sensitivity of the GPR capabiltities

Item No. 2909990723

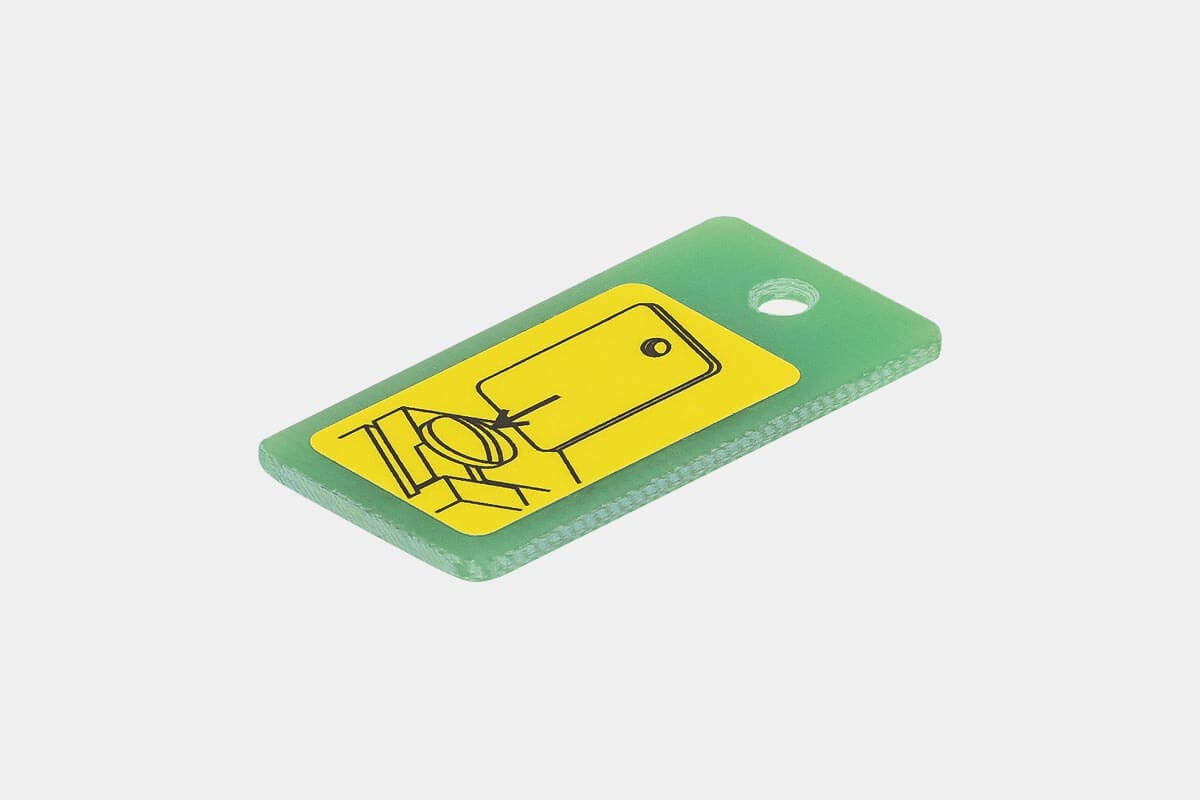

Plate brake screw
Adjustment plate small brake screw

Item No. 2902440026
Headphone VMR3/VMR3G/VR1
Lightweight watertight and non magnetic on-ear headphone for use in a noisy environment

Item No. 8909990832

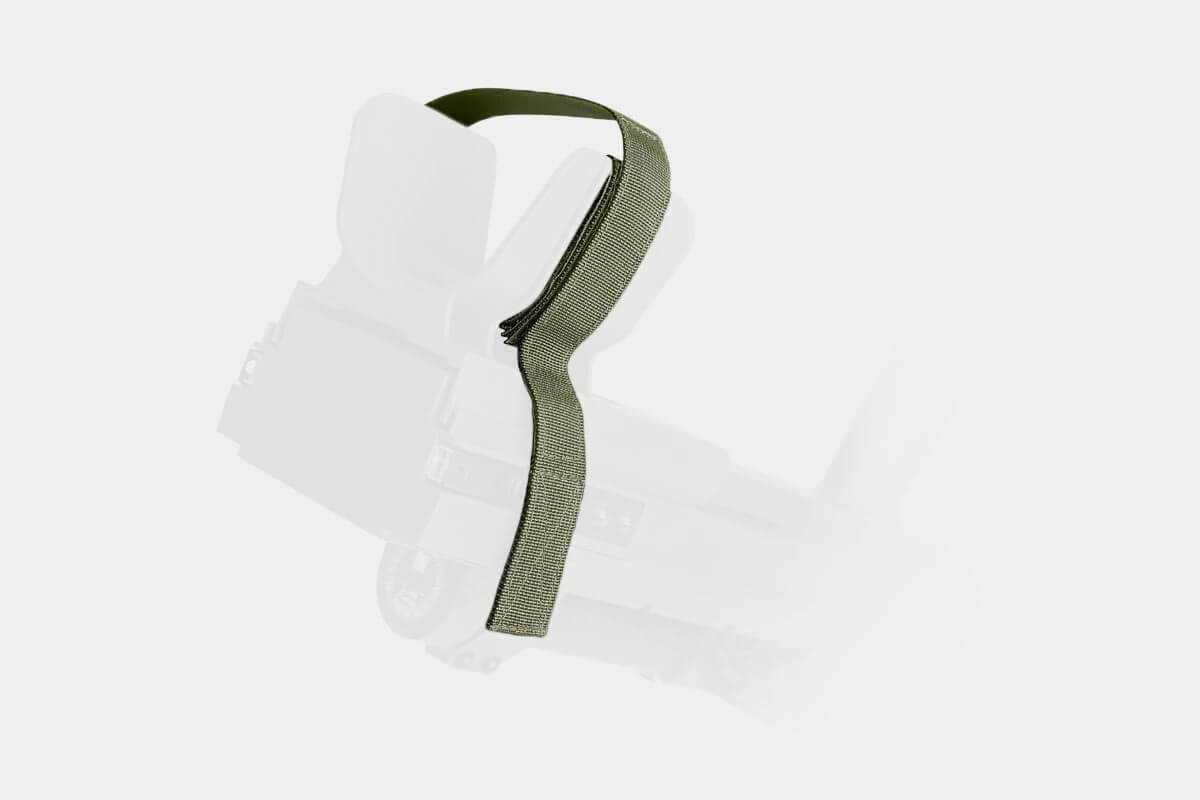

Arm strap
Arm strap for an improved hold of the dectector in operation

Item No. 2902440123
Shoulder straps with pads VMR2/VMR3/VR1
Comfortable shoulder straps for the safe carrying of the detector

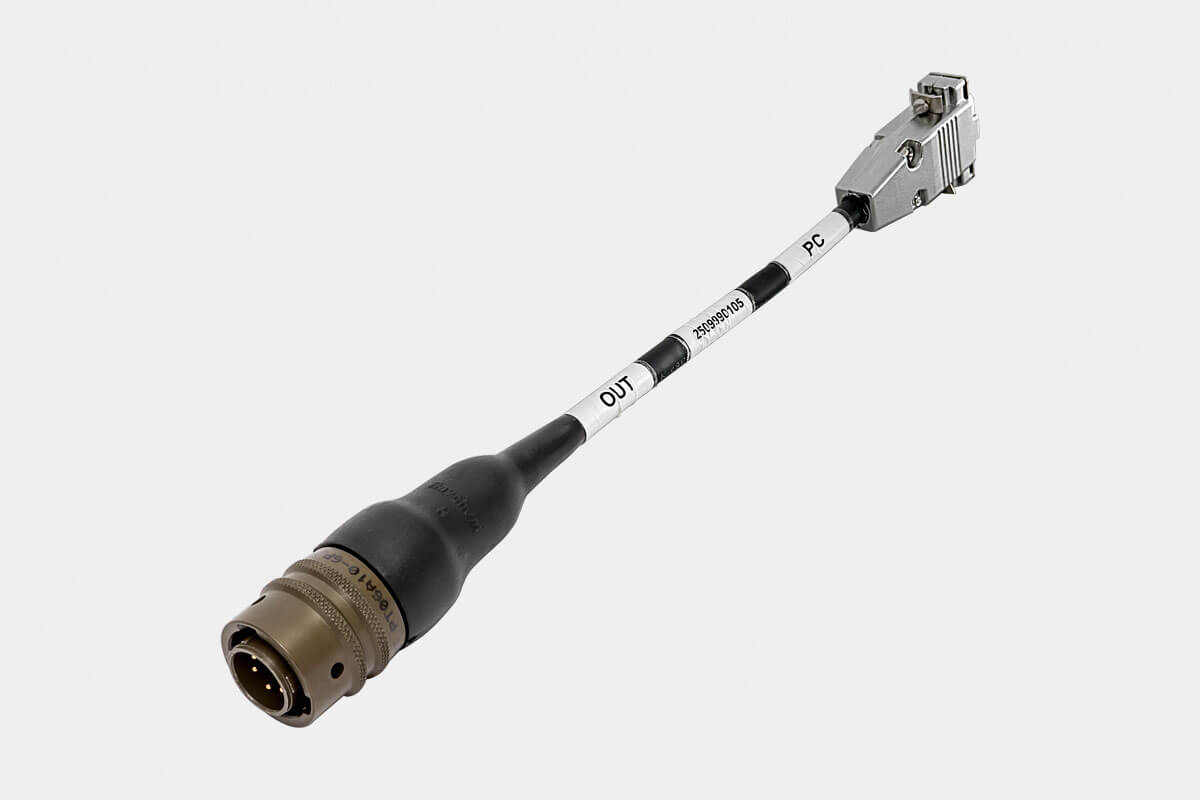

Item No. 2509990105
Data cable
For the data transfer via a USB-serial converter

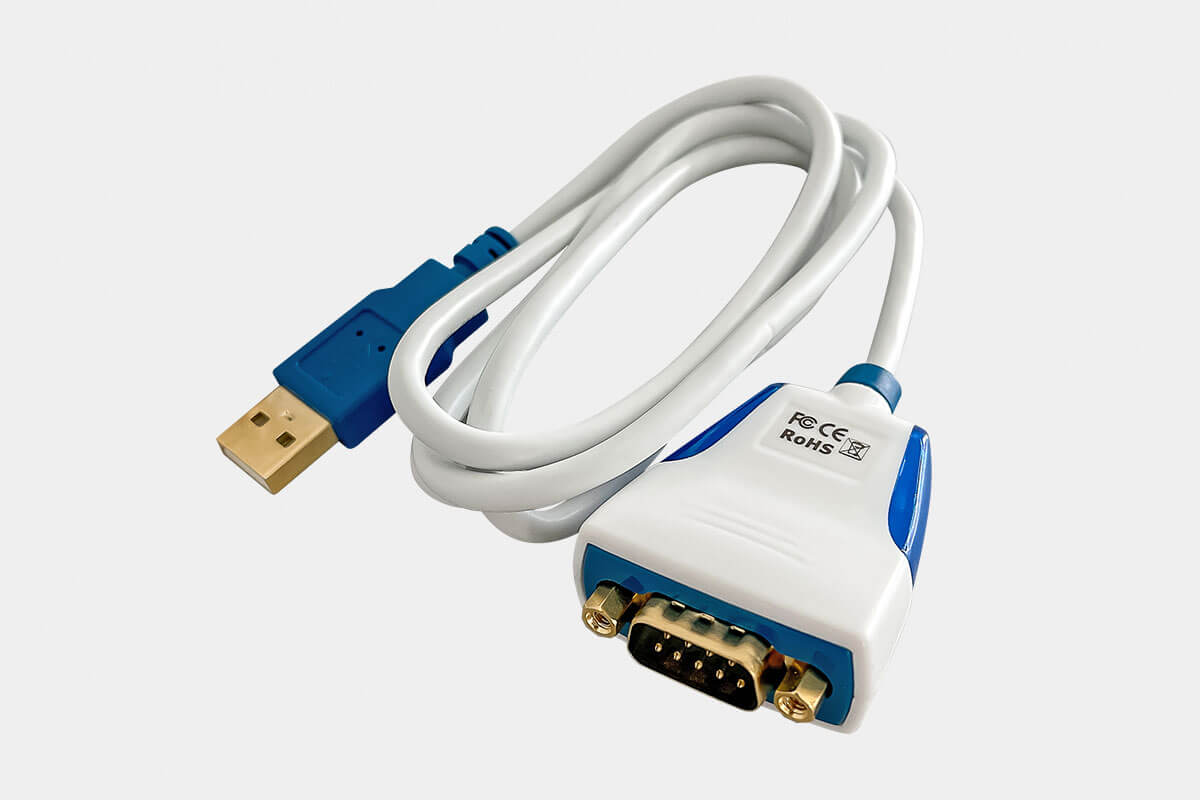

Item No. 5800001017
USB-serial converter cable
For the data transfer in conjunction with the data cable

Item No. 2902830035

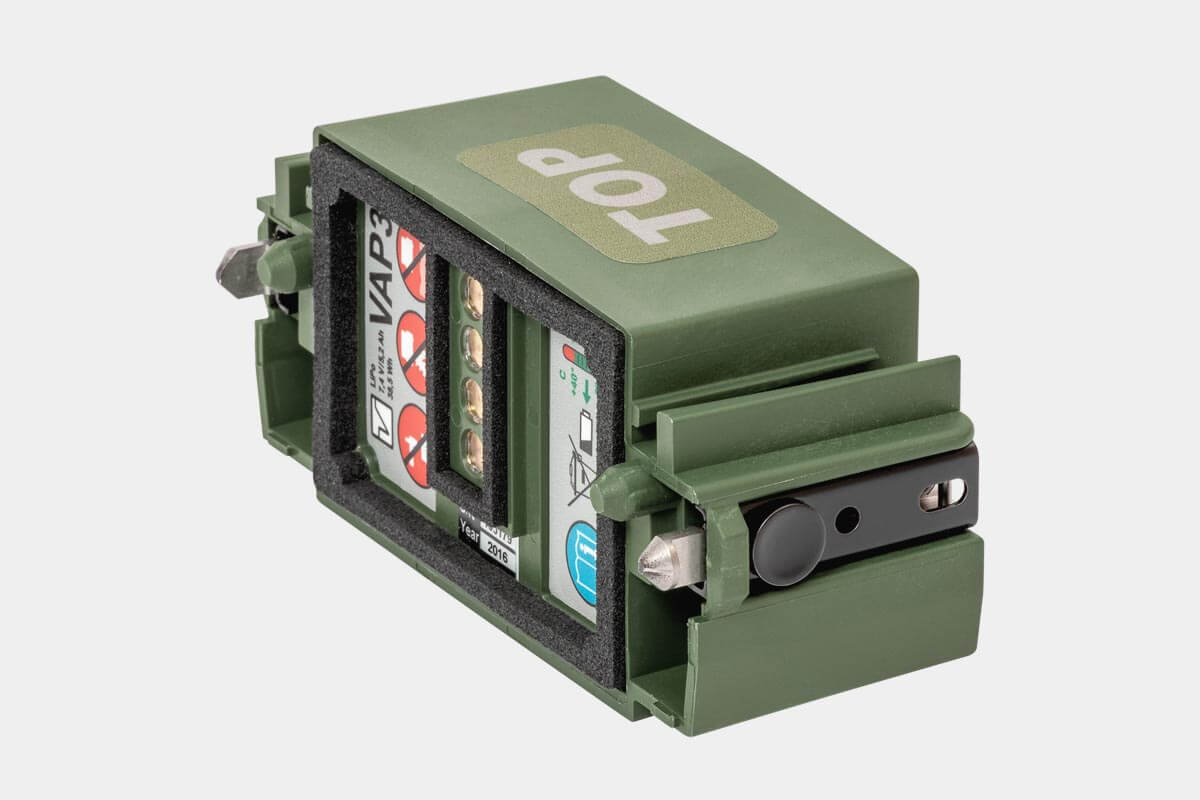

Rechargable battery block VAP3
Rechargeable Li-Po battery block

Item No. 2902830018

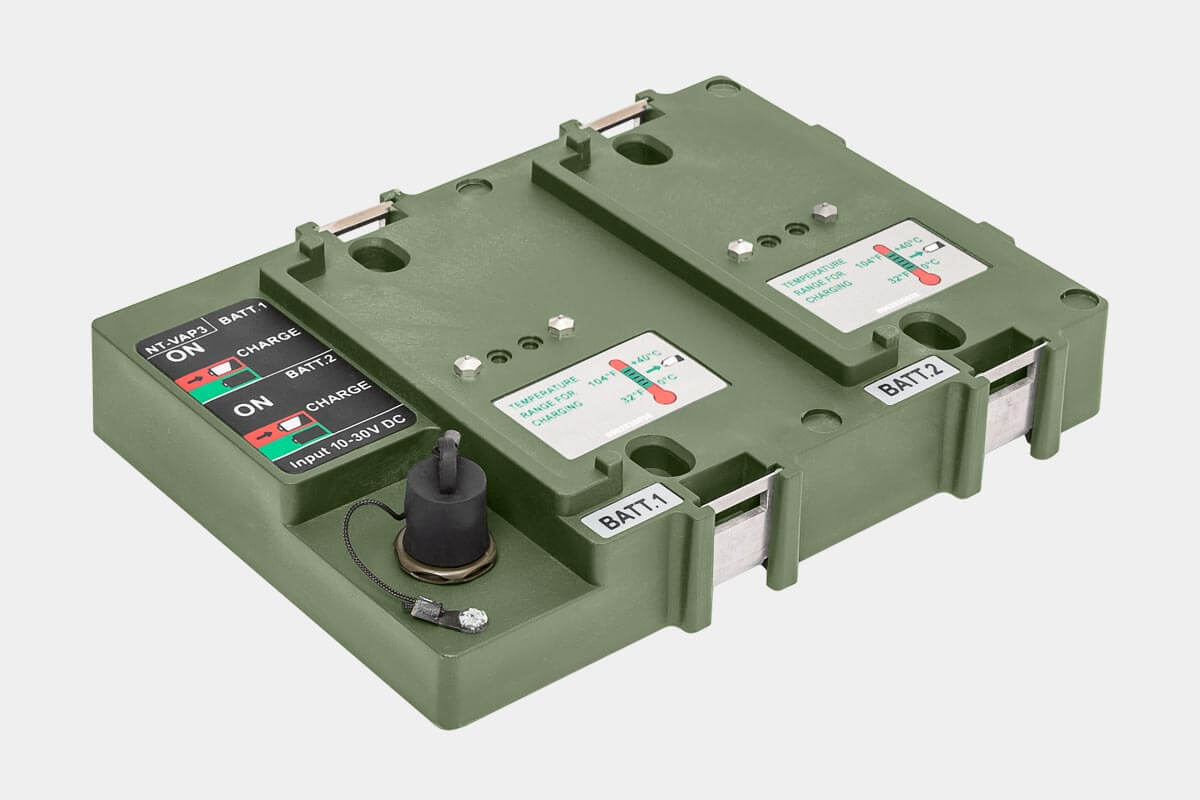

Battery charger VAP3
For charging the battery block VAP3

Item No. 2902440126
Power adapter for battery charger VAP3
Adapter connection for the battery charger VAP3

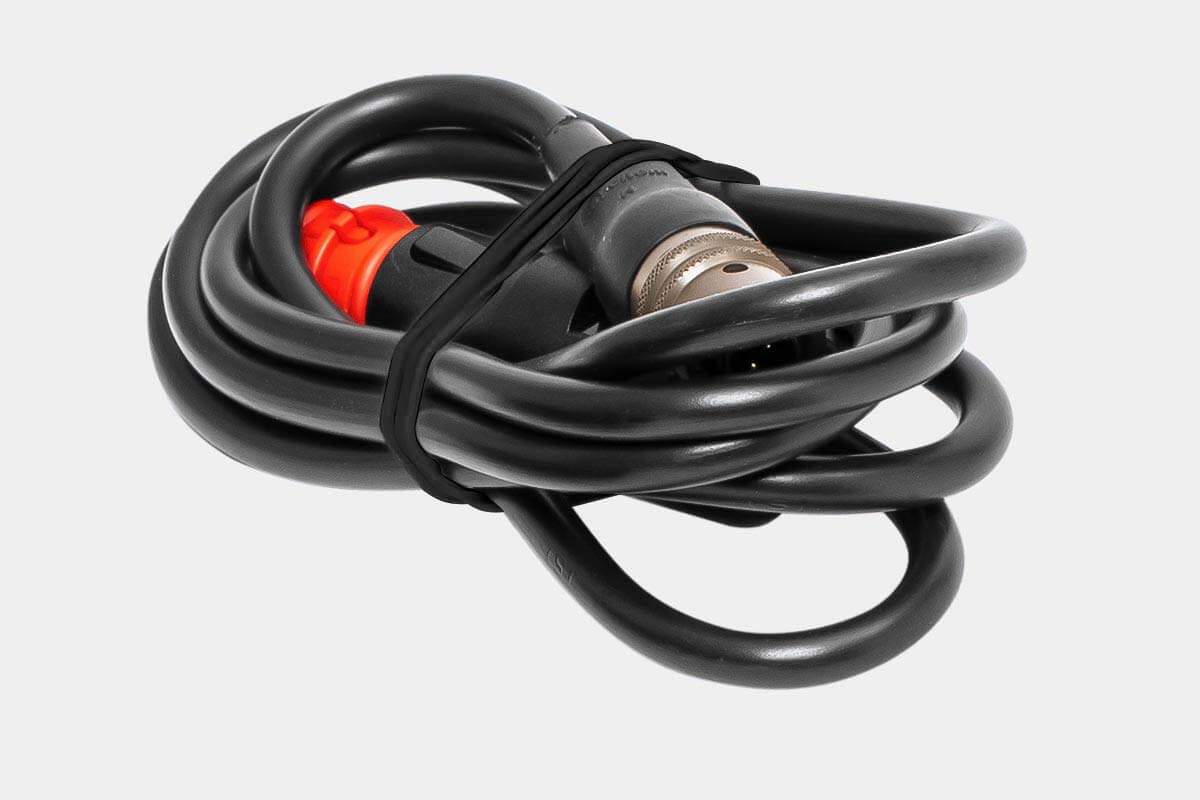

Item No. 2502440006
Charging cable for 12V/24V vehicle plug socket
Vehicle plug socket adapter for the battery charger VAP3

Item No. 9150006102
Universal power plug adapter
Power plug adapter for worldwide use of the charger

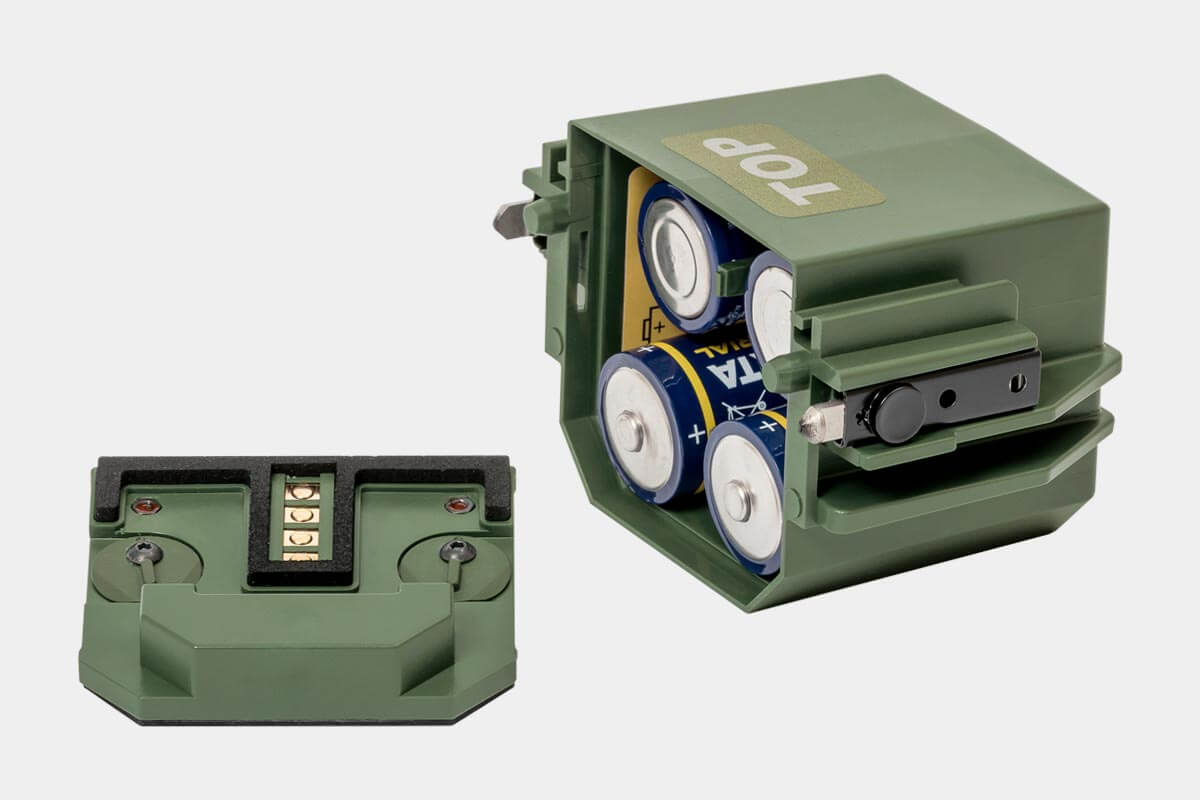

Item No. 2902830080
Battery compartment VBH3
Battery compartment allows the operation of the detector with batteries LR20 or alternatively with rechargeable batteries HR 20
